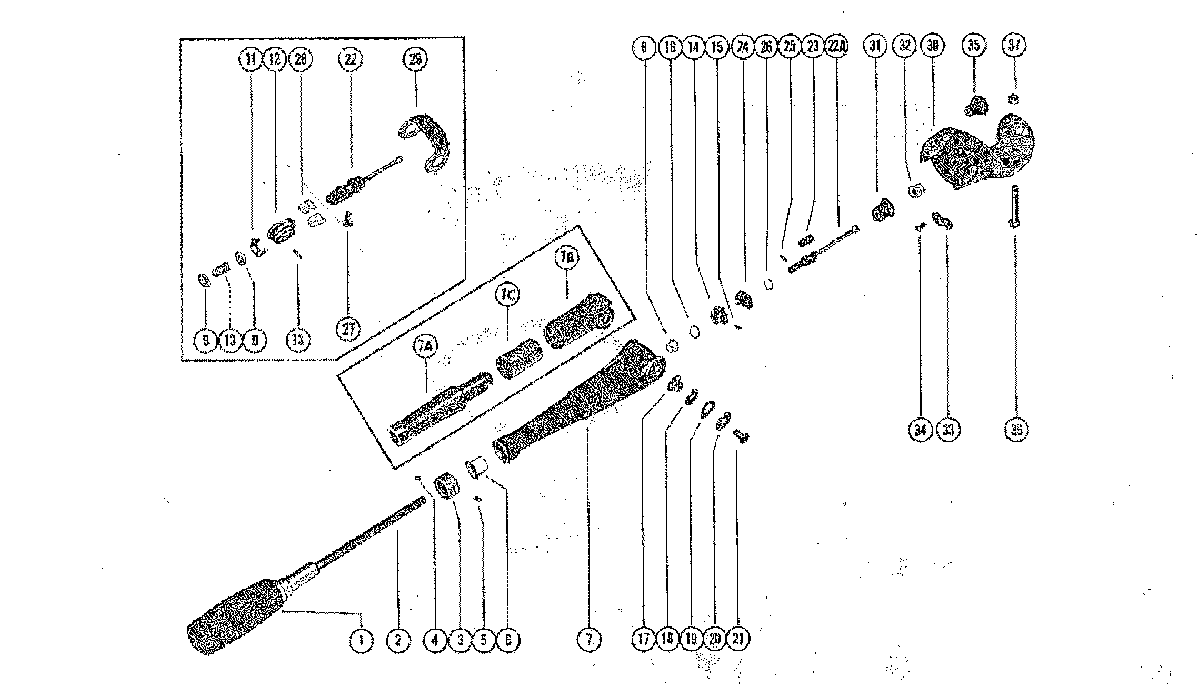

STEERING HANDLE ASSEMBLY для Mercury - 110 1865779 THRU 2798056

  • №
    Артикул
    Название
  • -
    39184A2 STERRING HANDLE ASSEMBLY, COMPLETE
    STERRING HANDLE ASSEMBLY, COMPLETE
  • -
    60850A6 STEERING HANDLE ASSEMBLY, COMPLETE
    SERIAL 00000000-02388440
    STEERING HANDLE ASSEMBLY, COMPLETE
    SERIAL 00000000-02388440
  • -
    60850A6 STEERING HANDLE ASSEMBLY, COMPLETE
    SERIAL 02388441-09999999
    STEERING HANDLE ASSEMBLY, COMPLETE
    SERIAL 02388441-09999999
  • -
    60850A6 STEERING HANDLE ASSEMBLY, COMPLETE
    STEERING HANDLE ASSEMBLY, COMPLETE
  • 1
    27763 GRIP, RUBBER-STEERING HANDLE BODY
    GRIP, RUBBER-STEERING HANDLE BODY
  • 2
    35909 BODY AND SHAFT, STEERING HANDLE
    BODY AND SHAFT, STEERING HANDLE
  • 3
    31001 INDICATOR, SPEED AND LIMIT-STEERING HANDLE
    INDICATOR, SPEED AND LIMIT-STEERING HANDLE
  • 4
    10-31002 SCREW, SET-SPEED AND SHIFT INDICATOR
    SCREW, SET-SPEED AND SHIFT INDICATOR
  • 5
    10-22290 SCREW, DRIVE-INDICATOR TO STEERING HANDLE BODY
    SCREW, DRIVE-INDICATOR TO STEERING HANDLE BODY
  • 6
    23-30677 BUSHING, NYLON-STEERING HANDLE TO BODY
    BUSHING, NYLON-STEERING HANDLE TO BODY
  • 7
    39184A1 STEERING HANDLE ASSEMBLY
    STEERING HANDLE ASSEMBLY
  • 7
    49556A3 STEERING HANDLE ASSEMBLY
    SERIAL 00000000-02388440
    STEERING HANDLE ASSEMBLY
    SERIAL 00000000-02388440
  • 7A
    49556 HANDLE, STEERING
    SERIAL 0238844I-09999999
    HANDLE, STEERING
    SERIAL 0238844I-09999999
  • 7B
    49558 KNUCKLE, STEERING HANDLE
    SERIAL 0238844I-09999999
    KNUCKLE, STEERING HANDLE
    SERIAL 0238844I-09999999
  • 7C
    23-49555 BUSHING, RUBBER-STEERING HANDLE
    SERIAL 0238844I-09999999
    BUSHING, RUBBER-STEERING HANDLE
    SERIAL 0238844I-09999999
  • 8
    23-28100 BUSHING, NYLON-STEERING HANDLE
    BUSHING, NYLON-STEERING HANDLE
  • 9
    12-30283 WASHER, STEERING HANDLE SHAFT
    WASHER, STEERING HANDLE SHAFT
  • 10
    24-26703 SPRING, STEERING HANDLE SHAFT
    SPRING, STEERING HANDLE SHAFT
  • 11
    39211 RETAINER, YOKE PIN HOLDING
    RETAINER, YOKE PIN HOLDING
  • 12
    39208 YOKE, STEERING HANDLE SHAFT
    YOKE, STEERING HANDLE SHAFT
  • 13
    17-26862 PIN, YOKE TO STEERING HANDLE SHAFT
    PIN, YOKE TO STEERING HANDLE SHAFT
  • 14
    43-47765 GEAR, BALL-STEERING HANDLE SHAFT
    GEAR, BALL-STEERING HANDLE SHAFT
  • 14
    43-53205 GEAR, BALL-STEERING HANDLE SHAFT
    GEAR, BALL-STEERING HANDLE SHAFT
  • 15
    17-26862 PIN, BALL GEAR TO STEERING HANDLE SHAFT
    PIN, BALL GEAR TO STEERING HANDLE SHAFT
  • 16
    53-47821 RING, RETAINING-BALL GEAR
    RING, RETAINING-BALL GEAR
  • 16
    53-53204 RING, RETAINING-BALL GEAR
    RING, RETAINING-BALL GEAR
  • 17
    39218 PIVOT, STEERING HANDLE TO BRACKET
    PIVOT, STEERING HANDLE TO BRACKET
  • 18
    15-26707 SHIM, STEERING HANDLE PIVOT TO BRACKET(.015)
    SHIM, STEERING HANDLE PIVOT TO BRACKET(.015)
  • 19
    13-39227 WASHER, WAVE-STEERING HANDLE PIVOT TO BRACKET
    WASHER, WAVE-STEERING HANDLE PIVOT TO BRACKET
  • 20
    13-39228 LOCKWASHER, STEERING HANDLE SCREW
    LOCKWASHER, STEERING HANDLE SCREW
  • 21
    10-96138 SCREW, STEERING HANDLE TO ARM BRACKET (1/2")
    SCREW, STEERING HANDLE TO ARM BRACKET (1/2")
  • 22
    39046A1 THROTTLE CONTROL SHAFT ASSEMBLY
    THROTTLE CONTROL SHAFT ASSEMBLY
  • 17
    48003 PIVOT, STEERING HANDLE TO BRACKET
    PIVOT, STEERING HANDLE TO BRACKET
  • 18
    15-48002015 SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)
    SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)
  • 21
    10-64074 SCREW, STEERING HANDLE TO ARM BRACKET (5/8")
    SCREW, STEERING HANDLE TO ARM BRACKET (5/8")
  • 22A
    47742A1 UNIVERSAL JOINT ASSEMBLY
    UNIVERSAL JOINT ASSEMBLY
  • 23
    23-48005 SLEEVE, UNIVERSAL JOINT
    SLEEVE, UNIVERSAL JOINT
  • 24
    43-47765 GEAR, BALL-UNIVERSAL JOINT
    GEAR, BALL-UNIVERSAL JOINT
  • 24
    43-53205 GEAR, BALL-UNIVERSAL JOINT
    GEAR, BALL-UNIVERSAL JOINT
  • 25
    17-26862 PIN, BALL GEAR TO UNIVERSAL JOINT
    PIN, BALL GEAR TO UNIVERSAL JOINT
  • 26
    53-47821 RING, RETAINING-BALL GEAR
    RING, RETAINING-BALL GEAR
  • 26
    53-53204 RING, RETAINING-BALL GEAR
    RING, RETAINING-BALL GEAR
  • 27
    10-96138 SCREW, THROTTLE CONTROL SHAFT TO BRACKET
    SCREW, THROTTLE CONTROL SHAFT TO BRACKET
  • 28
    39210 PLATE, NYLON-THROTTLE CONTROL SHAFT
    PLATE, NYLON-THROTTLE CONTROL SHAFT
  • 29
    39185 SHIELD, STEERING HANDLE
    SHIELD, STEERING HANDLE
  • 30
    39056 BRACKET, STEERING ARM
    BRACKET, STEERING ARM
  • 30
    61629A1 BRACKET, STEERING ARM
    BRACKET, STEERING ARM
  • 31
    47743 BOOT, UNIVERSAL JOINT
    BOOT, UNIVERSAL JOINT
  • 32
    23-47818 BUSHING, STEERING ARM BRACKET
    BUSHING, STEERING ARM BRACKET
  • 33
    24-72847 SPRING, DETENT-STEERING HANDLE
    SPRING, DETENT-STEERING HANDLE
  • 34
    10-37655 SCREW, DETENT SPRING TO STEERING HANDLE
    SCREW, DETENT SPRING TO STEERING HANDLE
  • 35
    39070 BOOT, RUBBER-THROTTLE CONTROL SHAFT
    BOOT, RUBBER-THROTTLE CONTROL SHAFT
  • 36
    10-30679 SCREW, STEERING ARM BRACKET TO SADDLE
    SCREW, STEERING ARM BRACKET TO SADDLE
  • 37
    11-20184 NUT, STEERING ARM BRACKET FASTENING SCREW
    NUT, STEERING ARM BRACKET FASTENING SCREW
