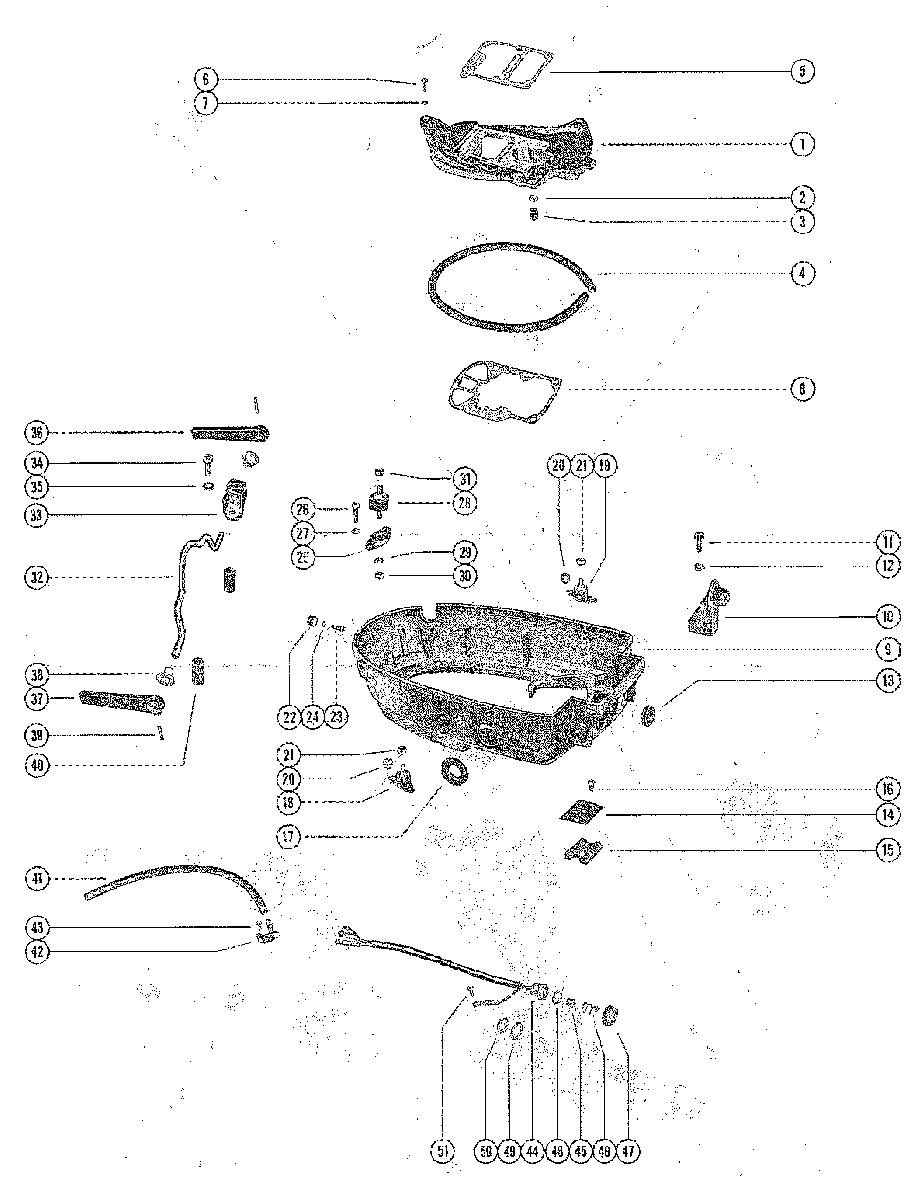

BOTTOM COWL AND ADAPTOR PLATE для Mercury - 110 1865779 THRU 2798056

  • №
    Артикул
    Название
  • 1
    47260A2 ADAPTOR PLATE ASSEMBLY
    ADAPTOR PLATE ASSEMBLY
  • 1
    47260A2 ADAPTOR PLATE ASSEMBLY
    ADAPTOR PLATE ASSEMBLY
  • 1
    53504A2 ADAPTOR PLATE ASSEMBLY
    ADAPTOR PLATE ASSEMBLY
  • 1
    56711A2 ADAPTOR PLATE ASSEMBLY
    ADAPTOR PLATE ASSEMBLY
  • 2
    23-13127 WASHER, NYLON-WATER OUTLET TUBE (ADAPTOR PLATE)
    WASHER, NYLON-WATER OUTLET TUBE (ADAPTOR PLATE)
  • 3
    26-36556 SEAL, RUBBER-WATER OUTLET TUBE (ADAPTOR PLATE)
    SEAL, RUBBER-WATER OUTLET TUBE (ADAPTOR PLATE)
  • 4
    39044 SEAL, RUBBER-ADAPTOR PLATE
    SEAL, RUBBER-ADAPTOR PLATE
  • 5
    27-89937 GASKET, POWERHEAD TO PLATE
    SERIAL 01987050-09999999
    GASKET, POWERHEAD TO PLATE
    SERIAL 01987050-09999999
  • 5
    27-89937 GASKET, POWERHEAD TO ADAPTOR PLATE
    SERIAL 00000000-01987049
    GASKET, POWERHEAD TO ADAPTOR PLATE
    SERIAL 00000000-01987049
  • 6
    10-69026 SCREW, ADAPTOR PLATE TO DRIVE SHAFT HOUSING (7/8")
    SCREW, ADAPTOR PLATE TO DRIVE SHAFT HOUSING (7/8")
  • 7
    13-26992 LOCKWASHER, ADAPTOR PLATE SCREW
    LOCKWASHER, ADAPTOR PLATE SCREW
  • 8
    27-39050 GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
    GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
  • 9
    2124-4416A2 COWL, BOTTOM
    COWL, BOTTOM
  • 9
    2124-4416A2 COWL, BOTTOM
    COWL, BOTTOM
  • 10
    39474 ANCHOR, LATCH - BOTTOM COWL
    ANCHOR, LATCH - BOTTOM COWL
  • 10
    56069 ANCHOR, LATCH-BOTTOM COWL
    ANCHOR, LATCH-BOTTOM COWL
  • 11
    10-22483 SCREW, LATCH ANCHOR TO BOTTOM COWL(1 1/8")
    SCREW, LATCH ANCHOR TO BOTTOM COWL(1 1/8")
  • 12
    13-26992 LOCKWASHER, LATCH ANCHOR SCREW
    LOCKWASHER, LATCH ANCHOR SCREW
  • 13
    25-39054 GROMMET, CHOKE SHAFAT-BOTTOM COWL
    GROMMET, CHOKE SHAFAT-BOTTOM COWL
  • 14
    39051A1 PLATE ASSEMBLY, COVER-BOTTOM COWL
    PLATE ASSEMBLY, COVER-BOTTOM COWL
  • 15
    39068 PAD, SOUND-COVER PLATE
    PAD, SOUND-COVER PLATE
  • 16
    10-8M0113176 SCREW, COVER PLATE TO BOTTOM COWL (3/8")
    SCREW, COVER PLATE TO BOTTOM COWL (3/8")
  • 17
    39058 SEAL, SHIFT HANDLE-BOTTOM COWL
    SEAL, SHIFT HANDLE-BOTTOM COWL
  • 18
    39145 MOUNT, RUBBER-BOTTOM COWL TO ADAPTOR PLATE (STARBOARD)
    MOUNT, RUBBER-BOTTOM COWL TO ADAPTOR PLATE (STARBOARD)
  • 19
    39144 MOUNT, RUBBER-BOTTOM COWL TO ADAPTOR PLATE (PORT)
    MOUNT, RUBBER-BOTTOM COWL TO ADAPTOR PLATE (PORT)
  • 20
    10-29238 SCREW, RUBBER MOUNT TO BOTTOM COWL (3/8")
    SCREW, RUBBER MOUNT TO BOTTOM COWL (3/8")
  • 21
    11-20184 NUT, ADAPTOR PLATE TO RUBBER MOUNT
    NUT, ADAPTOR PLATE TO RUBBER MOUNT
  • 22
    39565 SPOOL, NYLON-TOP COWL LATCHING (BOTTOM COWL)
    SPOOL, NYLON-TOP COWL LATCHING (BOTTOM COWL)
  • 23
    10-32228 SCREW, NYLON SPOOL TO BOTTOM COWL (5/8")
    SCREW, NYLON SPOOL TO BOTTOM COWL (5/8")
  • 24
    13-26996 LOCKWASHER, NYLON SPOOL SCREW
    LOCKWASHER, NYLON SPOOL SCREW
  • 25
    39147 ADAPTOR, R EAR MOUNT TO BOTTOM COWL
    ADAPTOR, R EAR MOUNT TO BOTTOM COWL
  • 26
    10-69026 SCREW, REAR MOUNT ADAPTOR TO BOTTOM COWL (7/8")
    SCREW, REAR MOUNT ADAPTOR TO BOTTOM COWL (7/8")
  • 27
    13-26992 LOCKWASHER, REAR MOUNT ADAPTOR SCREW
    LOCKWASHER, REAR MOUNT ADAPTOR SCREW
  • 28
    39146 MOUNT, RUBBER-BOTTOM COWL TO ADAPTOR PLATE (REAR)
    MOUNT, RUBBER-BOTTOM COWL TO ADAPTOR PLATE (REAR)
  • 29
    13-26992 LOCKWASHER, REAR MOUNT
    LOCKWASHER, REAR MOUNT
  • 30
    11-20088 NUT, REAR MOUNT TO ADAPTOR
    NUT, REAR MOUNT TO ADAPTOR
  • 31
    11-20184 NUT, ADAPTOR PLATE TO REAR RUBBER MOUT
    NUT, ADAPTOR PLATE TO REAR RUBBER MOUT
  • 31
    11-20184 NUT, ADAPTOR PLATE TO REAR RUBBER MOUT
    NUT, ADAPTOR PLATE TO REAR RUBBER MOUT
  • 32
    63648 ROD, COWL LATCH-BOTTOM COWL
    ROD, COWL LATCH-BOTTOM COWL
  • 33
    39099 BRACKET, COWL LATCH ROD
    BRACKET, COWL LATCH ROD
  • 34
    10-69026 SCREW, COWL LATCH BRACKET TO BOTTOM COWL (7/8")
    SCREW, COWL LATCH BRACKET TO BOTTOM COWL (7/8")
  • 35
    13-26992 LOCKWASHER, COWL LATCH BRACKET SCREW
    LOCKWASHER, COWL LATCH BRACKET SCREW
  • 36
    39083 HANDLE, COWL LATCH ROD (PORT)
    HANDLE, COWL LATCH ROD (PORT)
  • 37
    39098 HANDLE, COWL LATCH ROD (STARBOAR)
    HANDLE, COWL LATCH ROD (STARBOAR)
  • 38
    23-22981 BUSHING, NYLON-COWL LATCH ROD TO BOTTOM COWL
    BUSHING, NYLON-COWL LATCH ROD TO BOTTOM COWL
  • 39
    17-25319 PIN, ROLL-HANDLE TO COWL LATCH ROD
    PIN, ROLL-HANDLE TO COWL LATCH ROD
  • 40
    32-28373 SLEEVE, COWL LATCH ROD (EARLY MODELS ONLY)
    SLEEVE, COWL LATCH ROD (EARLY MODELS ONLY)
  • 41
    32-8M0108355 TUBE, TELL TALE
    TUBE, TELL TALE
  • 42
    56712 NOZZLE, TELL TALE
    NOZZLE, TELL TALE
  • 43
    10-41228 SCREW, TELL TALE NOZZLE TO BOTTOM COWL
    SCREW, TELL TALE NOZZLE TO BOTTOM COWL
  • --
    32372A2 STOP SWITCH ASSEMBLY
    STOP SWITCH ASSEMBLY
  • --
    57186A4 STOP SWITCH ASSEMBLY
    STOP SWITCH ASSEMBLY
  • 44
    32372 HARNESS, STOP SWITCH
    HARNESS, STOP SWITCH
  • 45
    30859 INSULATOR, SLEEVE-INNER SWITCH TERMINALS
    INSULATOR, SLEEVE-INNER SWITCH TERMINALS
  • 46
    24-30858A1 SPRING AND CONTACT ASSEMBLY
    SPRING AND CONTACT ASSEMBLY
  • 47
    38950A1 COVER ASSEMBLY, STOP SWITCH
    COVER ASSEMBLY, STOP SWITCH
  • 48
    12-38949 WASHER, SEALING-STOP SWITCH
    WASHER, SEALING-STOP SWITCH
  • 49
    13-21972 LOCKWASHER, STOP SWITCH CONNECTOR
    LOCKWASHER, STOP SWITCH CONNECTOR
  • 50
    11-21971 NUT, STOP SWITCH TO BOTTOM COWL
    NUT, STOP SWITCH TO BOTTOM COWL
  • 51
    10-8M0113176 SCREW, STOP SWITCH LEAD TO BOTTOM COWL (3/8")
    SCREW, STOP SWITCH LEAD TO BOTTOM COWL (3/8")
