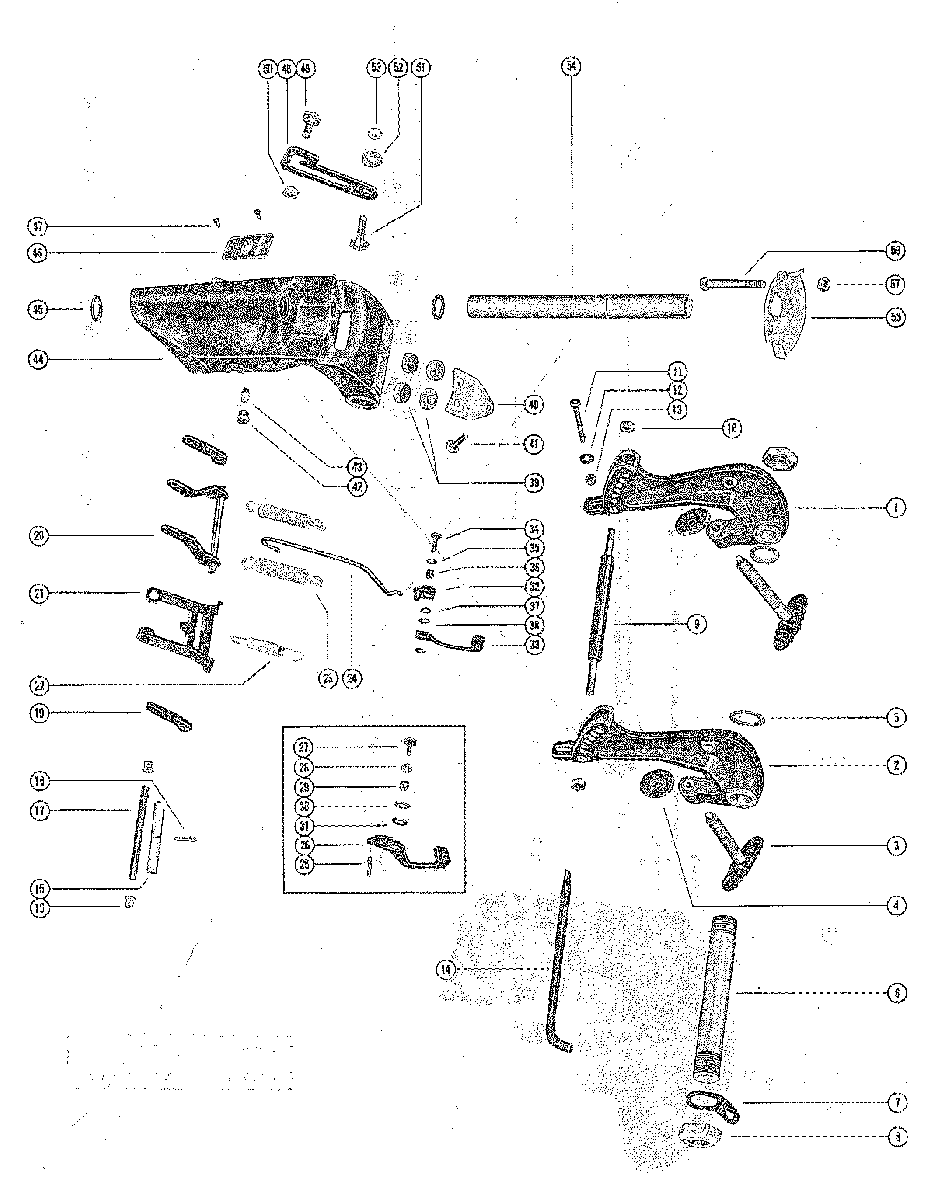

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 110 1865779 THRU 2798056

  • №
    Артикул
    Название
  • 1
    1467-5406A2 CLAMP BRACKET ASSEMBLY (PORT)
    CLAMP BRACKET ASSEMBLY (PORT)
  • 2
    1467-5406A2 CLAMP BRACKET ASSEMBLY (STARBOARD)
    CLAMP BRACKET ASSEMBLY (STARBOARD)
  • 3
    59170A3 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 4
    12-26227 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 5
    12-52864 WASHER, TILT TUBE-CLAMP TO SWIVEL BRACKET
    WASHER, TILT TUBE-CLAMP TO SWIVEL BRACKET
  • 6
    45757 TILT TUBE, CLAMP BRACKET TO SWIVEL BRACKET
    TILT TUBE, CLAMP BRACKET TO SWIVEL BRACKET
  • 6
    45757 TILT TUBE, CLAMP BRACKET TO SWIVEL BRACKET
    TILT TUBE, CLAMP BRACKET TO SWIVEL BRACKET
  • 7
    54-8M0085928 CLAMP, SAFETY CHAIN-TILT TUBE
    CLAMP, SAFETY CHAIN-TILT TUBE
  • 8
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 9
    16-59622 STUD, CLAMP BRACKET SPACER
    STUD, CLAMP BRACKET SPACER
  • 10
    11-20184 NUT, CLAMP BRACKET STUD FASTENING
    NUT, CLAMP BRACKET STUD FASTENING
  • 11
    10-67982 SCREW, CLAMP BRACKET TO BOAT TRANSOM
    SCREW, CLAMP BRACKET TO BOAT TRANSOM
  • 12
    12-67983 WASHER, CLAMP BRACKET SCREW
    WASHER, CLAMP BRACKET SCREW
  • 13
    11-8267098 NUT, CLAMP BRACKET SCREW
    NUT, CLAMP BRACKET SCREW
  • 14
    17-55952A1 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 14
    17-55952A1 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 15
    23-30813 SPACER, TUBE-REVERSE LOCK LEVER ROD
    SPACER, TUBE-REVERSE LOCK LEVER ROD
  • 16
    23-26856 BUSHING, NYLON-REVERSE LOCK LEVER ROD
    BUSHING, NYLON-REVERSE LOCK LEVER ROD
  • 17
    56663 ROD, REVERSE LOCK TO SWIVEL BRACKET
    ROD, REVERSE LOCK TO SWIVEL BRACKET
  • 17
    56663 ROD, REVERSE LOCK TO SWIVEL BRACKET
    ROD, REVERSE LOCK TO SWIVEL BRACKET
  • 18
    18-56206 COTTER PIN, REVERSE LOCK LEVER TO ROD
    COTTER PIN, REVERSE LOCK LEVER TO ROD
  • 19
    30815 LINK, REVERSE LOCK LEVER
    LINK, REVERSE LOCK LEVER
  • 20
    30807A1 REVERSE LOCK LEVER ASSEMBLY
    REVERSE LOCK LEVER ASSEMBLY
  • 20
    53267A1 REVERSE LOCK LEVER ASSEMBLY
    REVERSE LOCK LEVER ASSEMBLY
  • 21
    53435 BRACKET, STOP
    BRACKET, STOP
  • 22
    24-53456 SPRING, EXTENSION-STOP BRACKET
    SPRING, EXTENSION-STOP BRACKET
  • 23
    24-31918 SPRING, TENSION-REVERSE LOCK LEVER
    SPRING, TENSION-REVERSE LOCK LEVER
  • 24
    38318 ROD, LINK-REVERSE LOCK LEVER
    ROD, LINK-REVERSE LOCK LEVER
  • 25
    17-25905 PIN, ROLL-SWIVEL BRACKET CONTROL LEVER
    PIN, ROLL-SWIVEL BRACKET CONTROL LEVER
  • 26
    32351T LEVER, CONTROL-REVERSE LOCK
    LEVER, CONTROL-REVERSE LOCK
  • 27
    10-28789 SCREW, CONTROL LEVER TO SWIVEL BRACKET
    SCREW, CONTROL LEVER TO SWIVEL BRACKET
  • 28
    12-56681 WASHER, CONTROL LEVER SCREW
    WASHER, CONTROL LEVER SCREW
  • 29
    23-31309 SPACER, CONTROL LEVER FASTENING SCREW
    SPACER, CONTROL LEVER FASTENING SCREW
  • 30
    13-34632 WASHER, WAVE-CONTROL LEVER FASTENING SCREW
    WASHER, WAVE-CONTROL LEVER FASTENING SCREW
  • 31
    12-24812 WASHER, CONTROL LEVER FASTENING SCREW
    WASHER, CONTROL LEVER FASTENING SCREW
  • 32
    56636A1 LINK ASSEMBLY, REVERSE LOCK CONTROL LEVER
    LINK ASSEMBLY, REVERSE LOCK CONTROL LEVER
  • 33
    56637T LEVER, CONTROL-REVERSE LOCK
    LEVER, CONTROL-REVERSE LOCK
  • 34
    10-852368 SCREW, CONTROL LEVER TO LINK
    SCREW, CONTROL LEVER TO LINK
  • 35
    12-56681 WASHER, CONTROL LEVER FASTENING SCREW
    WASHER, CONTROL LEVER FASTENING SCREW
  • 36
    23-56639 SPACER, CONTROL LEVER SCREW
    SPACER, CONTROL LEVER SCREW
  • 37
    13-34632 WASHER, WAVE-CONTROL LEVER SCREW
    WASHER, WAVE-CONTROL LEVER SCREW
  • 38
    12-24812 WASHER, CONTROL LEVER SCREW
    WASHER, CONTROL LEVER SCREW
  • 39
    20203 DISC, FRICTION-CLAMP PLATE AND SWIVEL BRACKET
    DISC, FRICTION-CLAMP PLATE AND SWIVEL BRACKET
  • 40
    61296 PLATE, CLAMP-CO-PILOT
    PLATE, CLAMP-CO-PILOT
  • 41
    10-56649 SCREW, CLAMP PLATE ADJUSTING
    SCREW, CLAMP PLATE ADJUSTING
  • 42
    19-77633Q LUBRICAP, GREASE FITTING
    LUBRICAP, GREASE FITTING
  • 43
    22-74036 FITTING, GREASE-SWIVEL BRACKET
    FITTING, GREASE-SWIVEL BRACKET
  • 44
    1451-1788 SWIVEL BRACKET
    SWIVEL BRACKET
  • 45
    25-25439 "O" RING, SWIVEL BRACKET
    "O" RING, SWIVEL BRACKET
  • 46
    38-31042 SERIAL PLATE
    SERIAL PLATE
  • 47
    10-28642 SCREW, DRIVE-SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE-SERIAL PLATE TO SWIVEL BRACKET
  • 48
    63310A1 LEVER, TILT STOP
    LEVER, TILT STOP
  • 48
    63310A1 LEVER, TILT STOP
    LEVER, TILT STOP
  • 49
    10-29237 SCREW, RETAINING-TILT STOP LEVER
    SCREW, RETAINING-TILT STOP LEVER
  • 50
    11-20184 NUT, TILT STOP LEVER RETAINING SCREW
    NUT, TILT STOP LEVER RETAINING SCREW
  • 51
    10-27791 SCREW, ANCHOR-TILT STOP LEVER
    SCREW, ANCHOR-TILT STOP LEVER
  • 52
    13-20846 WASHER, WAVE-LEVER ANCHOR SCREW
    WASHER, WAVE-LEVER ANCHOR SCREW
  • 53
    11-20184 NUT, TILT STOP LEVER ANCHOR SCREW
    NUT, TILT STOP LEVER ANCHOR SCREW
  • 54
    17-30688 SWIVEL PIN, SWIVEL BRACKET TO SADDLE
    SWIVEL PIN, SWIVEL BRACKET TO SADDLE
  • 55
    77334 CO-PILOT DISC
    CO-PILOT DISC
  • 56
    10-30679 SCREW, CO-PILOT DISC TO SADDLE
    SCREW, CO-PILOT DISC TO SADDLE
  • 57
    11-20184 NUT, CO-PILOT DISC FASTENING SCREW
    NUT, CO-PILOT DISC FASTENING SCREW
