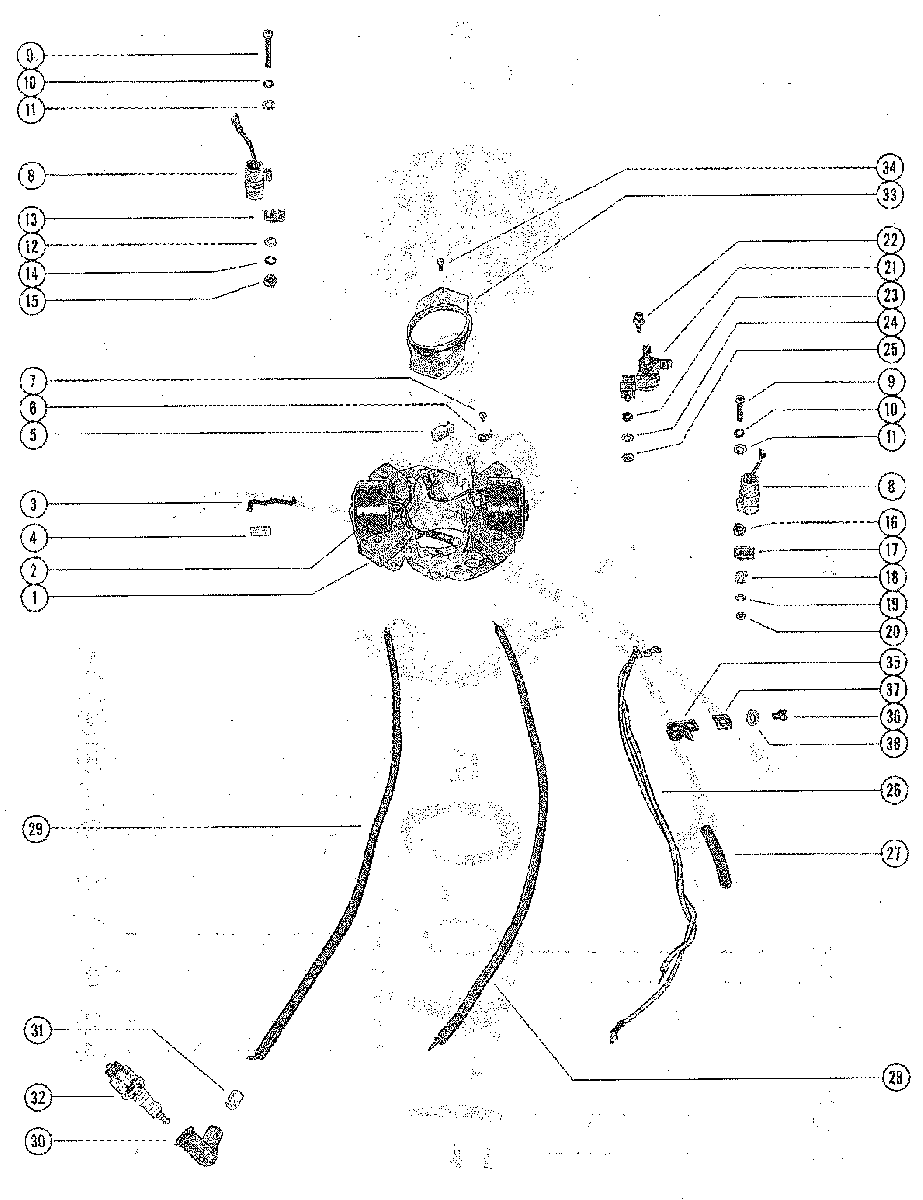

STATOR PLATE ASSEMBLY для Mercury - 110 1865779 THRU 2798056
-
№АртикулНазвание
-
-398-2574A4 STATOR PLATE ASSEMBLY, COMPLETE
FOR ADDITIONAL PARTS OF A-398-2574A4 STATOR PLATE ASSEMBLY, COMPLETE, SEE PAGE 3STATOR PLATE ASSEMBLY, COMPLETE
FOR ADDITIONAL PARTS OF A-398-2574A4 STATOR PLATE ASSEMBLY, COMPLETE, SEE PAGE 3 -
1398-2221 STATOR PLATE AND CORESTATOR PLATE AND CORE
-
2398-2568T1 COIL ASSEMBLYCOIL ASSEMBLY
-
3398-2321 CLIP, COIL RETAININGCLIP, COIL RETAINING
-
4398-2413 CLIP, COIL RETAININGCLIP, COIL RETAINING
-
5398-2207 FELT, CAM - BREAKERFELT, CAM - BREAKER
-
6398-732 CLIP, GROUND WIRE LEADCLIP, GROUND WIRE LEAD
-
710-21130 SCREW, GROUND TERMINALSCREW, GROUND TERMINAL
-
8398-2203 CONDENSER ASSEMBLYCONDENSER ASSEMBLY
-
910-38395 SCREW, CONDENSER FASTENING (1 1/4")SCREW, CONDENSER FASTENING (1 1/4")
-
1013-21134 LOCKWASHER, CONDENSER FASTENING SCREWLOCKWASHER, CONDENSER FASTENING SCREW
-
1112-21135 WASHER, CONDENSER FASTENING SCREWWASHER, CONDENSER FASTENING SCREW
-
1254-39844A1 CLAMP, LEAD WIRECLAMP, LEAD WIRE
-
1312-21135 WASHER, LEAD WIRE CLAMP SCREWWASHER, LEAD WIRE CLAMP SCREW
-
1413-21134 LOCKWASHER, LEAD WIRE CLAMP SCREWLOCKWASHER, LEAD WIRE CLAMP SCREW
-
1511-21923T NUT, LEAD WIRE CLAMP SCREWNUT, LEAD WIRE CLAMP SCREW
-
1611-21825 NUT, COIL LEAD WIRE CLIP SCREW (SPACER)NUT, COIL LEAD WIRE CLIP SCREW (SPACER)
-
1754-24836 CLIP, NYLON - COIL LEAD WIRECLIP, NYLON - COIL LEAD WIRE
-
188M0084613 "D" WASHER, COIL LEAD WIRE CLIP"D" WASHER, COIL LEAD WIRE CLIP
-
1913-26995 LOCKWASHER, COIL LEAD WIRE CLIP SCREWLOCKWASHER, COIL LEAD WIRE CLIP SCREW
-
2011-26419 NUT, COIL LEAD WIRE CLIP SCREWNUT, COIL LEAD WIRE CLIP SCREW
-
21398-2202 BREAKER ASSEMBLYBREAKER ASSEMBLY
-
2210-33988 SCREW/LOCKWASHER, BREAKER FASTENINGSCREW/LOCKWASHER, BREAKER FASTENING
-
2312-21135 WASHER, TERMINAL SCREWWASHER, TERMINAL SCREW
-
2413-21134 LOCKWASHER, TERMINAL SCREWLOCKWASHER, TERMINAL SCREW
-
2511-21923T NUT, TERMINAL SCREWNUT, TERMINAL SCREW
-
26398-2206 GROUND LEAD, STATOR TO TERMINAL BLOCKGROUND LEAD, STATOR TO TERMINAL BLOCK
-
2723-30419 SLEEVE, INISULATION - GROUND LEADSLEEVE, INISULATION - GROUND LEAD
-
2884-821945A46 LEAD WIRELEAD WIRE
-
2984-821945A46 LEAD WIRE - TOPLEAD WIRE - TOP
-
3085-63709A1 PROTECTOR, SPARK PLUSPROTECTOR, SPARK PLUS
-
3120117 MARKER, "TOP" - LEAD WIREMARKER, "TOP" - LEAD WIRE
-
3233-22805 SPARK PLUG (CHAMPION - J7J)SPARK PLUG (CHAMPION - J7J)
-
3233-8M0114739 SPARK PLUG (CHAMPION - L4J)SPARK PLUG (CHAMPION - L4J)
-
33398-2208 COVER, DUST - STATOR PLATECOVER, DUST - STATOR PLATE
-
3410-36455 SCREW, DUST COVER TO STATOR PLATESCREW, DUST COVER TO STATOR PLATE
-
3554-24836 CLIP, #1 AND #2 STATOR LEADSCLIP, #1 AND #2 STATOR LEADS
-
3610-62568 SCREW, #1 AND #2 CLIP TO MANIFOLD COVERSCREW, #1 AND #2 CLIP TO MANIFOLD COVER
-
378M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
-
3812-847883 WASHER, #2 STATOR LEAD CLIP SCREWWASHER, #2 STATOR LEAD CLIP SCREW
-
--92-336731 IGNTIION COIL BOND KITIGNTIION COIL BOND KIT
