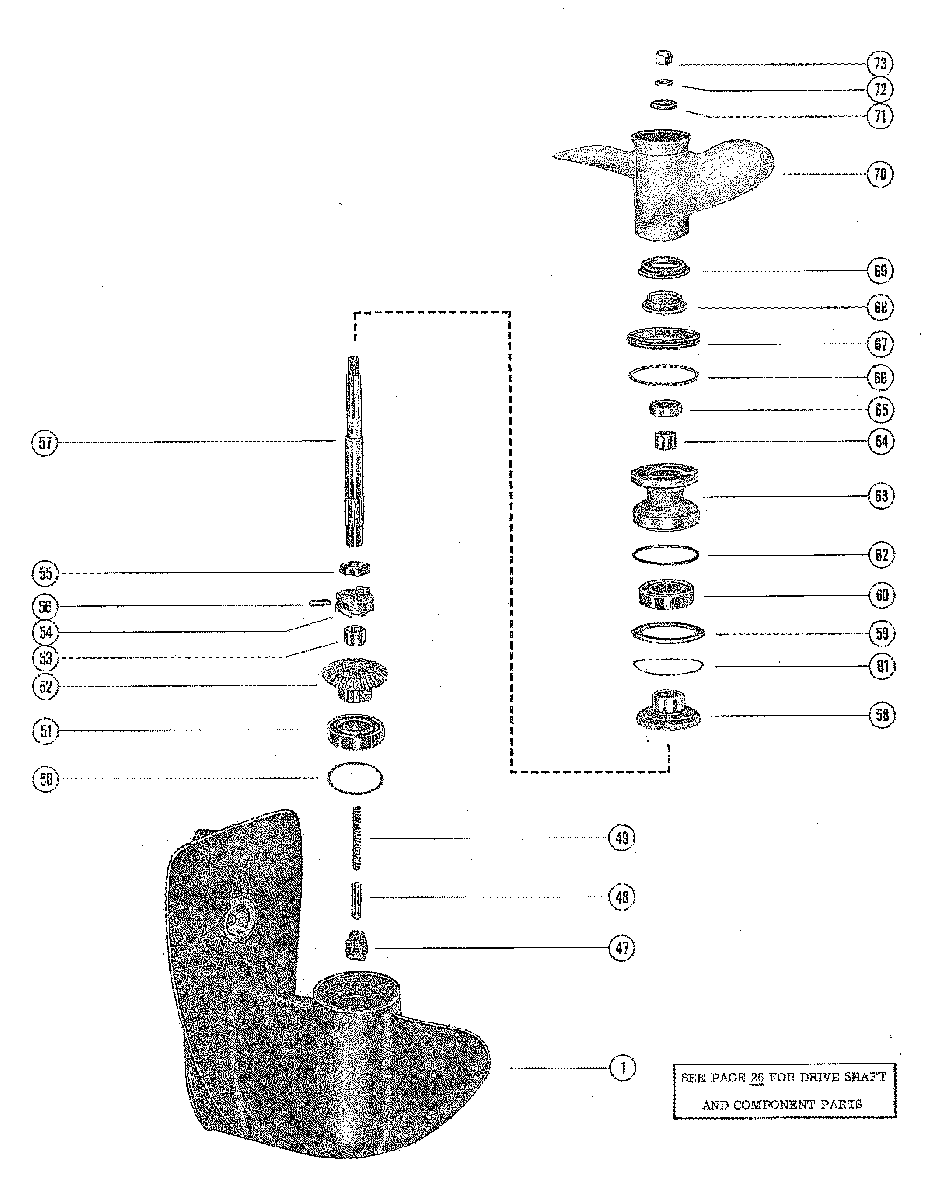

GEAR HOUSING ASSEMBLY, COMPLETE для Mercury - 110 1865779 THRU 2798056
-
№АртикулНазвание
-
-1630-2643A22 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
A-1630-2643A5, A4, A22, A23, A18, A19, A24, A25, A30, A31, A32, AND A33 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #67 AS LISTED ON PAGES 26 AND 27GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
A-1630-2643A5, A4, A22, A23, A18, A19, A24, A25, A30, A31, A32, AND A33 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #67 AS LISTED ON PAGES 26 AND 27 -
-1630-2643A23 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
A-1630-2643A5, A4, A22, A23, A18, A19, A24, A25, A30, A31, A32, AND A33 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #67 AS LISTED ON PAGES 26 AND 27GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
A-1630-2643A5, A4, A22, A23, A18, A19, A24, A25, A30, A31, A32, AND A33 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #67 AS LISTED ON PAGES 26 AND 27 -
-1630-2643A22 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
A-1630-2643A5, A4, A22, A23, A18, A19, A24, A25, A30, A31, A32, AND A33 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #67 AS LISTED ON PAGES 26 AND 27GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
A-1630-2643A5, A4, A22, A23, A18, A19, A24, A25, A30, A31, A32, AND A33 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #67 AS LISTED ON PAGES 26 AND 27 -
-1630-2643A23 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
A-1630-2643A5, A4, A22, A23, A18, A19, A24, A25, A30, A31, A32, AND A33 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #67 AS LISTED ON PAGES 26 AND 27GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
A-1630-2643A5, A4, A22, A23, A18, A19, A24, A25, A30, A31, A32, AND A33 GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDES ALL PARTS FROM REFERENCE #1 THRU REFERENCE #67 AS LISTED ON PAGES 26 AND 27 -
-1630-2643A32 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE 1 IN BLOCK COMMENTSGEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE 1 IN BLOCK COMMENTS -
-1630-2643A33 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE 1 IN BLOCK COMMENTSGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE 1 IN BLOCK COMMENTS -
-1630-2643A32 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE 2 IN BLOCK COMMENTSGEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE 2 IN BLOCK COMMENTS -
-1630-2643A33 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE 2 IN BLOCK COMMENTSGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE 2 IN BLOCK COMMENTS -
-1630-2643A32 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE 2 IN BLOCK COMMENTSGEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE 2 IN BLOCK COMMENTS -
-1630-2643A33 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE 2 IN BLOCK COMMENTSGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE 2 IN BLOCK COMMENTS -
-1630-2643A32 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE 2 IN BLOCK COMMENTSGEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE 2 IN BLOCK COMMENTS -
-1630-2643A33 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE 2 IN BLOCK COMMENTSGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE 2 IN BLOCK COMMENTS -
11630-2643A9 GEAR HOUSING ASSEMBLY - SEE PAGE 26 FOR PARTS BREAKDOWNGEAR HOUSING ASSEMBLY - SEE PAGE 26 FOR PARTS BREAKDOWN
-
11630-2643A9 GEAR HOUSING ASSEMBLY - SEE PAGE 26 FOR PARTS BREAKDOWNGEAR HOUSING ASSEMBLY - SEE PAGE 26 FOR PARTS BREAKDOWN
-
4730599 CAM, SHIFTCAM, SHIFT
-
4831334 FOLLOWER, SHIFT CAMFOLLOWER, SHIFT CAM
-
4924-31333 SPRING, COMPRESSION-CAM FOLLOWERSPRING, COMPRESSION-CAM FOLLOWER
-
5015-30522A1 SHIM, FORWARD GEAR BALL BEARING TO GEAR HOUSING (.002-3-5-1)SHIM, FORWARD GEAR BALL BEARING TO GEAR HOUSING (.002-3-5-1)
-
5130-21889 BEARING, BALL-FORWARD GEARBEARING, BALL-FORWARD GEAR
-
5243-48577A2 FORWARD GEAR ASSEMBLY (STRAIGHT)FORWARD GEAR ASSEMBLY (STRAIGHT)
-
5243-48577A3 FORWARD GEAR ASSEMBLY (SPIRAL)FORWARD GEAR ASSEMBLY (SPIRAL)
-
5331-22458 BEARING, ROLLER-FORWARD GEARBEARING, ROLLER-FORWARD GEAR
-
5443-48577A2 RATCHET ASSEMBLY, SLIDING CLUTCH (STRAIGHT)RATCHET ASSEMBLY, SLIDING CLUTCH (STRAIGHT)
-
5452-47581 RATCHET ASSEMBLY, SLIDING CLUTCH (SPIRAL)RATCHET ASSEMBLY, SLIDING CLUTCH (SPIRAL)
-
5553-32449 RING, RETAINING-CROSS PIN
PART OF 1-52-32473A1 RATCHET ASSEMLBYRING, RETAINING-CROSS PIN
PART OF 1-52-32473A1 RATCHET ASSEMLBY -
5617-30535 PIN, CROSS-RATCHET TO PROPELLER SHAFTPIN, CROSS-RATCHET TO PROPELLER SHAFT
-
5744-33640 SHAFT, PROPELLERSHAFT, PROPELLER
-
5744-47851 SHAFT, PROPELLERSHAFT, PROPELLER
-
5843-48577A2 REVERSE GEAR ASSEMBLY (STRAIGHT)REVERSE GEAR ASSEMBLY (STRAIGHT)
-
5843-48578 REVERSE GEAR ASSEMBLY (SPIRAL)REVERSE GEAR ASSEMBLY (SPIRAL)
-
5912-30531 WASHER, THRUST-REVERSE GEARWASHER, THRUST-REVERSE GEAR
-
6030-21889 BEARING, BALL-REVERSE GEARBEARING, BALL-REVERSE GEAR
-
6115-30532A1 SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
-
6225-30529 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6330541T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
6431-22458 BEARING, ROLLER-BEARING CARRIERBEARING, ROLLER-BEARING CARRIER
-
6526-30530 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
6612-30528 WASHER, GEAR HOUSING COVERWASHER, GEAR HOUSING COVER
-
6730537 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
6812-31980A2 COLLAR ASSEMBLY, GUIDE-PROPELLER SHAFTCOLLAR ASSEMBLY, GUIDE-PROPELLER SHAFT
-
7048-31504A1 PROPELLER ASSEMBLY (2 BLADE-ALUMINUM-10" PITCH)
SHIPPED WITH ENGINE FROM FACTORYPROPELLER ASSEMBLY (2 BLADE-ALUMINUM-10" PITCH)
SHIPPED WITH ENGINE FROM FACTORY -
7048-31504A1 PROPELLER ASSEMBLY (2 BLADE-ALUMINUM-10" PITCH)
SHIPPED WITH ENGINE FROM FACTORYPROPELLER ASSEMBLY (2 BLADE-ALUMINUM-10" PITCH)
SHIPPED WITH ENGINE FROM FACTORY -
7048-34400A1 PROPELLER ASSEMBLY (2 BLADE-BRONZE-10" PITCH)PROPELLER ASSEMBLY (2 BLADE-BRONZE-10" PITCH)
-
7048-32364A1 PROPELLER ASSEMBLY (2 BLADE-ALUMINUM-9" PITCH)
SHIPPED WITH ENGINE FROM FACTORYPROPELLER ASSEMBLY (2 BLADE-ALUMINUM-9" PITCH)
SHIPPED WITH ENGINE FROM FACTORY -
7048-32364A1 PROPELLER ASSEMBLY (2 BLADE-ALUMINUM-9" PITCH)
SHIPPED WITH ENGINE FROM FACTORYPROPELLER ASSEMBLY (2 BLADE-ALUMINUM-9" PITCH)
SHIPPED WITH ENGINE FROM FACTORY -
7048-37318A1 PROPELLER ASSEMBLY (3 BLADE-ALUMINUM-7" PITCH)PROPELLER ASSEMBLY (3 BLADE-ALUMINUM-7" PITCH)
-
7112-30524 WASHER, SPLINE-PROPELLER SHAFTWASHER, SPLINE-PROPELLER SHAFT
-
7212-20084 WASHER, PROPELLER NUTWASHER, PROPELLER NUT
-
7311-82670911 NUT, PROPELLERNUT, PROPELLER
-
6886665A1 THRUST HUB ASSEMBLY, PROPELLER SHAFTTHRUST HUB ASSEMBLY, PROPELLER SHAFT
-
6886665A1 THRUST HUB ASSEMBLY, PROPELLER SHAFTTHRUST HUB ASSEMBLY, PROPELLER SHAFT
-
6986665A1 WASHER, CUPPED-THRUST HUBWASHER, CUPPED-THRUST HUB
-
6986665A1 WASHER, CUPPED-THRUST H UBWASHER, CUPPED-THRUST H UB
-
7048-47922A10 PROPELLER ASSEMBLY (2 BLADE-ALUMINUM-9" PITCH)
SHIPPED WITH ENGINE FROM FACTORYPROPELLER ASSEMBLY (2 BLADE-ALUMINUM-9" PITCH)
SHIPPED WITH ENGINE FROM FACTORY -
7048-47922A10 PROPELLER ASSEMBLY (2 BLADE-ALUMINUM-10" PITCH)PROPELLER ASSEMBLY (2 BLADE-ALUMINUM-10" PITCH)
-
7048-47924A1 PROPELLER ASSEMBLY (2 BLADE-BRONZE-10" PITCH)PROPELLER ASSEMBLY (2 BLADE-BRONZE-10" PITCH)
-
7048-47670A10 PROPELLER ASSEMBLY (3 BLADE-ALUMINUM-7" PITCH)PROPELLER ASSEMBLY (3 BLADE-ALUMINUM-7" PITCH)
-
7111-64075A1 SPACER, SPLINED-PROPELLER SHAFTSPACER, SPLINED-PROPELLER SHAFT
-
7212-27025 WASHER, PROPELLER NUTWASHER, PROPELLER NUT
-
7311-34933 NUT, PROPELLERNUT, PROPELLER
