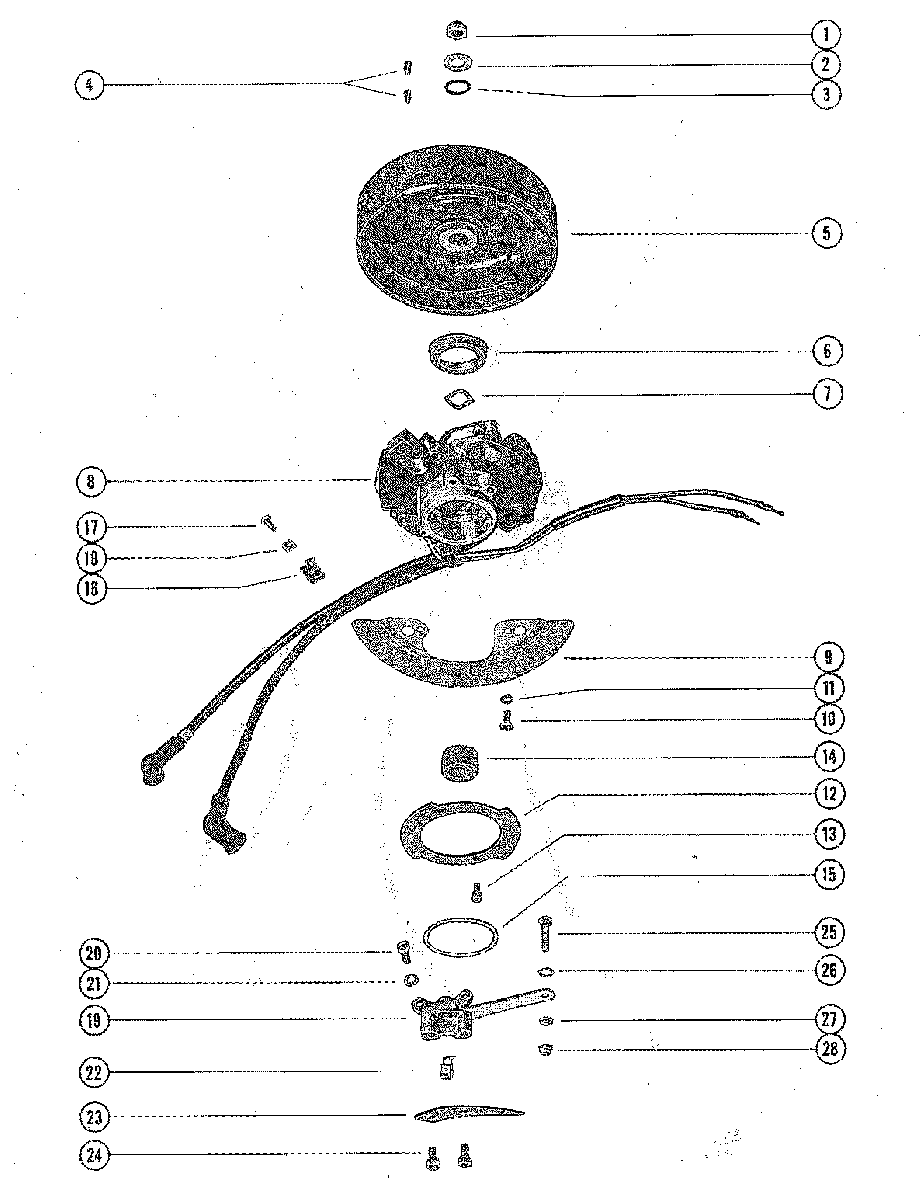

FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE для Mercury - 110 1865779 THRU 2798056

  • №
    Артикул
    Название
  • 1
    11-20696 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 2
    12-36245 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 3
    25-62701 "O" RING, FLYWHEEL HUB
    "O" RING, FLYWHEEL HUB
  • 4
    28-20094 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 5
    219-2246A4 FLYWHEEL ASSEMBLY, COMPLETE
    FLYWHEEL ASSEMBLY, COMPLETE
  • 6
    23-34367 COLLAR, FLYWHEEL DUST SHIELD
    COLLAR, FLYWHEEL DUST SHIELD
  • 7
    13-22027 WASHER, WAVE - MAGNETO CAM TENSION
    WASHER, WAVE - MAGNETO CAM TENSION
  • 8
    398-2574A4 STATOR PLATE ASSEMBLY, COMPLETE
    FOR ADDITIONAL PARTS OF A-398-2574A4 STATOR PLATE ASSEMBLY, COMPLETE, SEE PAGE 6
    STATOR PLATE ASSEMBLY, COMPLETE
    FOR ADDITIONAL PARTS OF A-398-2574A4 STATOR PLATE ASSEMBLY, COMPLETE, SEE PAGE 6
  • 9
    39326A1 SHIELD ASSEMBLY, MAGNETO
    SHIELD ASSEMBLY, MAGNETO
  • 10
    10-45742 SCREW, SHIELD TO MAGNETO
    SCREW, SHIELD TO MAGNETO
  • 11
    13-26996 LOCKWASHER, SHIELD SCREW
    LOCKWASHER, SHIELD SCREW
  • 12
    33904 RING, HOLD DOWN - STATOR PLATE
    RING, HOLD DOWN - STATOR PLATE
  • 13
    10-35400 SCREW, HOLD DOWN RIING TO STATOR PLATE
    SCREW, HOLD DOWN RIING TO STATOR PLATE
  • 14
    398-2230 CAM, BREAKER
    CAM, BREAKER
  • 15
    15-33910015 SHIM, STATOR PLATE TO UPPER END CAP (.015)
    SHIM, STATOR PLATE TO UPPER END CAP (.015)
  • 16
    54-45806 CLAMP, STATOR LEAD
    CLAMP, STATOR LEAD
  • 17
    10-20720 SCREW, STATOR LEAD CLIP TO PORT COVER
    SCREW, STATOR LEAD CLIP TO PORT COVER
  • 18
    8M0084613 "D" WASHER, LEAD CLIP SCREW
    "D" WASHER, LEAD CLIP SCREW
  • 19
    34363A1 THROTTLE CAM BRACKET ASSEMBLY
    THROTTLE CAM BRACKET ASSEMBLY
  • 20
    10-20738 SCREW, CAM BRACKET TO STATOR PLATE
    SCREW, CAM BRACKET TO STATOR PLATE
  • 20
    10-53296 SCREW, CAM BRACKET TO STATOR PLATE
    SCREW, CAM BRACKET TO STATOR PLATE
  • 21
    13-26991 LOCKWASHER, CAM PRACKET FASTENING SCREW
    LOCKWASHER, CAM PRACKET FASTENING SCREW
  • 22
    54-34449 CLIP, THROTTLE CAM BRACKET
    CLIP, THROTTLE CAM BRACKET
  • 23
    36000 CAM, THROTTLE
    CAM, THROTTLE
  • 24
    10-28707 SCREW, THROTTLE CAM TO CAM BRACKET
    SCREW, THROTTLE CAM TO CAM BRACKET
  • 24
    10-53296 SCREW, THROTTLE CAM TO CAM BRACKET
    SCREW, THROTTLE CAM TO CAM BRACKET
  • 25
    10-34696 SCREW, CONTROL LEVER TO CAM BRACKET
    SCREW, CONTROL LEVER TO CAM BRACKET
  • 26
    13-29720 WASHER, WAVE - CONTROL LEVER SCREW
    WASHER, WAVE - CONTROL LEVER SCREW
  • 27
    12-34392 WASHER, CONTROL LEVER SCREW
    WASHER, CONTROL LEVER SCREW
  • 28
    11-28656 NUT, CONTROL LEVER SCREW
    NUT, CONTROL LEVER SCREW
