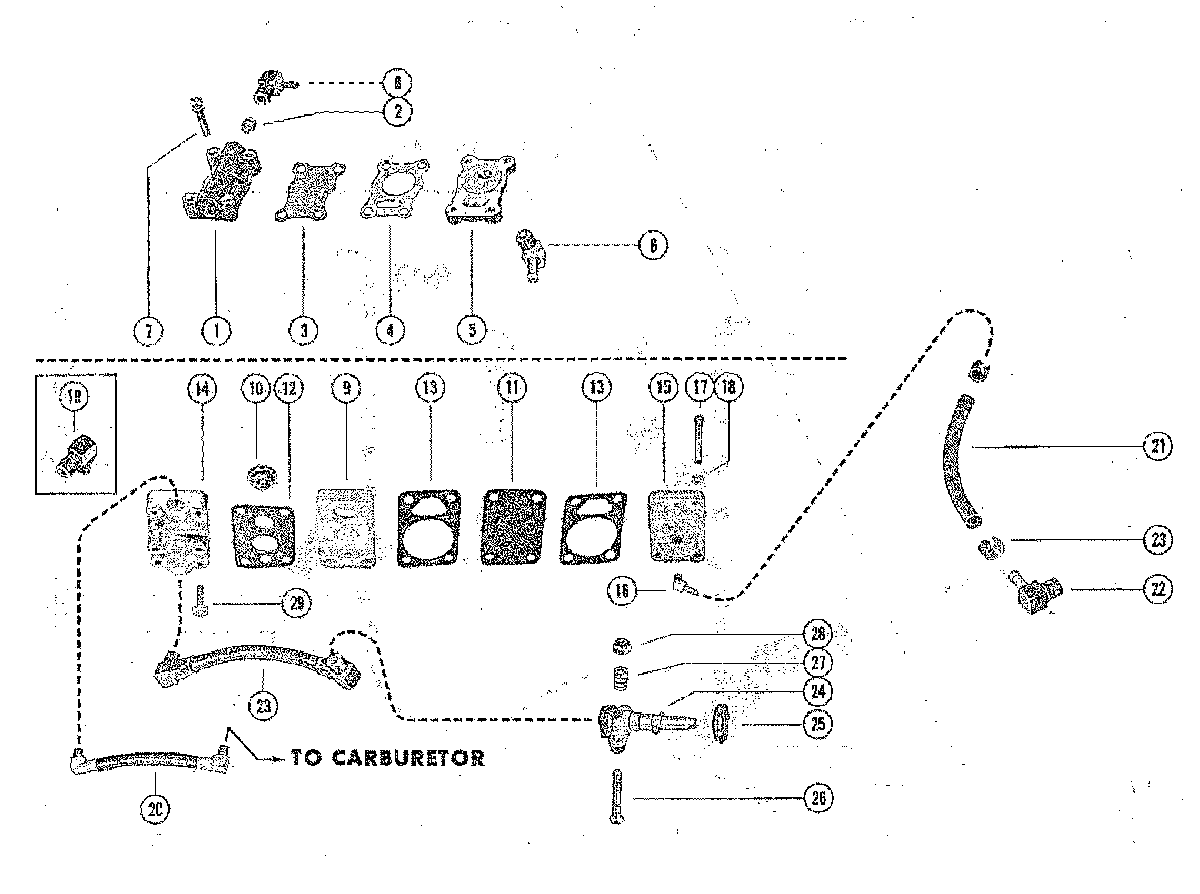

FUEL PUMP ASSEMBLY для Mercury - 110 1865779 THRU 2798056

  • №
    Артикул
    Название
  • 1
    39082A4 FUEL PUMP ASSEMBLY
    (MERC-110-5: S/N 1912759 thru 2125963 and S/N 1865779 thru 2095505)(MERC 110-6: S/N 2135068 thru 2275946 and S/N 2098352 thru 2246009)(MERC 110-7: S/N2290663 thru 2475151 and S/N 2295448 thru 2295997)
    FUEL PUMP ASSEMBLY
    (MERC-110-5: S/N 1912759 thru 2125963 and S/N 1865779 thru 2095505)(MERC 110-6: S/N 2135068 thru 2275946 and S/N 2098352 thru 2246009)(MERC 110-7: S/N2290663 thru 2475151 and S/N 2295448 thru 2295997)
  • 2
    21-22974A3 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    31503A1 DIAPHRAGM KIT, FUEL PUMP
    DIAPHRAGM KIT, FUEL PUMP
  • 4
    90-8M0143356 GASKET, FUEL PUMP TO SPACER
    GASKET, FUEL PUMP TO SPACER
  • 5
    39259 SPACER, FUEL PUMP
    SPACER, FUEL PUMP
  • 6
    22-33373001 ELBOW, FUEL PUMP SPACER TO PRESSURE HOSE
    ELBOW, FUEL PUMP SPACER TO PRESSURE HOSE
  • 7
    10-68918 SCREW, FUEL PUMP TO SPACER (1")
    SCREW, FUEL PUMP TO SPACER (1")
  • 8
    22-39079 ELBOW, FUEL PUMP TO CARBURETOR
    ELBOW, FUEL PUMP TO CARBURETOR
  • 9
    89977A1 FUEL PUMP ASSEMBLY
    (MERC-110-8: S/N 2508759 thru 2708870 and S/N 2514399 thru 2709765)(MERC 110-9: S/N 2798057 thru 2938415 and S/N 280252 thru 2939545)
    FUEL PUMP ASSEMBLY
    (MERC-110-8: S/N 2508759 thru 2708870 and S/N 2514399 thru 2709765)(MERC 110-9: S/N 2798057 thru 2938415 and S/N 280252 thru 2939545)
  • 10
    21-30430A2 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 11
    53245A1 DIAPHRAGM KIT, FUEL PUMP
    DIAPHRAGM KIT, FUEL PUMP
  • 12
    90-8M0143356 GASKET, FUEL PUMP TO BASE
    GASKET, FUEL PUMP TO BASE
  • 13
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 14
    53242 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 14
    53241 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 15
    54066 COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 16
    22-54090 ELBOW, FUEL PUMP OUTLET
    ELBOW, FUEL PUMP OUTLET
  • 17
    10-32627 SCREW, FUEL PUMP TO BASE
    SCREW, FUEL PUMP TO BASE
  • 18
    12-847883 WASHER, FUEL PUMP SCREW
    WASHER, FUEL PUMP SCREW
  • 19
    22-53246 ELBOW, FUEL PUMP TO CARBURETOR
    ELBOW, FUEL PUMP TO CARBURETOR
  • 20
    32-64055 FUEL LINE, FUEL PUMP TO CARBURETOR
    FUEL LINE, FUEL PUMP TO CARBURETOR
  • 21
    32-9912688 HOSE, PRESSURE - FUEL PUMP (4 3/9")
    HOSE, PRESSURE - FUEL PUMP (4 3/9")
  • 21
    32-9912688 HOSE, PRESSURE - FUEL PUMP (6 1/2")
    HOSE, PRESSURE - FUEL PUMP (6 1/2")
  • 21
    32-9912688 HOSE, PRESSURE - FUEL PUMP (7 1/8")
    HOSE, PRESSURE - FUEL PUMP (7 1/8")
  • 22
    22-33373001 ELBOW, CYLINDER BLOCK TO PRESSURE HOSE (90)
    ELBOW, CYLINDER BLOCK TO PRESSURE HOSE (90)
  • 22
    22-53553 ELBOW, CYLINDER BLOCK TO PRESSURE HOSE (45)
    ELBOW, CYLINDER BLOCK TO PRESSURE HOSE (45)
  • 23
    54-20387 CLAMP, PRESSURE HOSE FASTENING
    CLAMP, PRESSURE HOSE FASTENING
  • 23
    32-39485 FUEL LINE, FUEL PUMP TO ADAPTOR (5 1/4")
    FUEL LINE, FUEL PUMP TO ADAPTOR (5 1/4")
  • 23
    32-53247 FUEL LINE, FUEL PUMP TO ADAPTOR (7")
    FUEL LINE, FUEL PUMP TO ADAPTOR (7")
  • 24
    32454 ADAPTOR, CHECK UNIT (FUEL LINE)
    ADAPTOR, CHECK UNIT (FUEL LINE)
  • 25
    39052 SEAL, ADAPTOR TO BOTTOM COWL
    SEAL, ADAPTOR TO BOTTOM COWL
  • 26
    10-73656 SCREW, ADAPTOR TO BOTTOM COWL (1 3/8")
    SCREW, ADAPTOR TO BOTTOM COWL (1 3/8")
  • 27
    24-28357 SPRING, ADAPTOR SCREW
    SPRING, ADAPTOR SCREW
  • 28
    11-20110 NUT, ADAPTOR SCREW
    NUT, ADAPTOR SCREW
  • 29
    10-29200 SCREW, FUEL PUMP TO ANCHOR (5/8")
    SCREW, FUEL PUMP TO ANCHOR (5/8")
