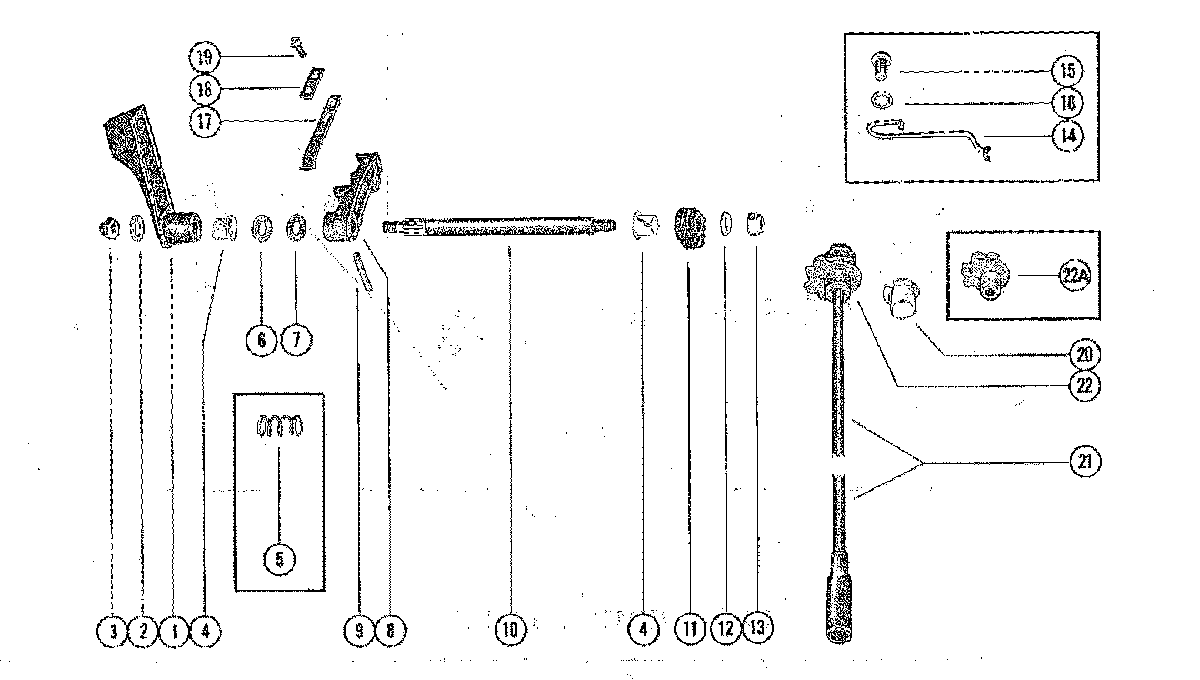

SHIFT CONTROL LINKAGE для Mercury - 110 1865779 THRU 2798056
-
№АртикулНазвание
-
159107 HANDLE, SHIFT CONTROLHANDLE, SHIFT CONTROL
-
212-29245 WASHER, SHIFT CONTROL SHAFTWASHER, SHIFT CONTROL SHAFT
-
311-826709109 NUT, SHIFT HANDLE TO SHIFT CONTROL SHAFTNUT, SHIFT HANDLE TO SHIFT CONTROL SHAFT
-
423-30678 BUSHING, NYLON - SHIFT CONTROL SHAFTBUSHING, NYLON - SHIFT CONTROL SHAFT
-
524-30817 SPRING, TENSION - SHIFT COTNROL SHAFTSPRING, TENSION - SHIFT COTNROL SHAFT
-
612-37828 WASHER, SHIFT CONTROL SHAFTWASHER, SHIFT CONTROL SHAFT
-
713-36206 WASHER, WAVE - SHIFT CONTROL SHAFTWASHER, WAVE - SHIFT CONTROL SHAFT
-
839048 LEVER, SHIFT CONTROL (REMOTE)LEVER, SHIFT CONTROL (REMOTE)
-
863673 LEVER, SHIFT CONTROL (REMOTE)LEVER, SHIFT CONTROL (REMOTE)
-
917-99615 PIN, SHIFT LEVER TO SHIFT CONTROL SHAFTPIN, SHIFT LEVER TO SHIFT CONTROL SHAFT
-
1039047 SHAFT, SHIFT CONTROLSHAFT, SHIFT CONTROL
-
1143-30802 GEAR, SECTOR - SHFIT CONTROL SHAFT (HORIZONTAL)GEAR, SECTOR - SHFIT CONTROL SHAFT (HORIZONTAL)
-
1212-29245 WASHER, SHIFT CONTROL SHAFTWASHER, SHIFT CONTROL SHAFT
-
1311-8267089 NUT, SECTOR GEAR TO SHIFT CONTROL SHAFTNUT, SECTOR GEAR TO SHIFT CONTROL SHAFT
-
1424-30816 SPRING, DETENT - SECTOR GEARSPRING, DETENT - SECTOR GEAR
-
1510-28639 SCREW, DETENT SPRING TO BOTTOM COWL (5/8")SCREW, DETENT SPRING TO BOTTOM COWL (5/8")
-
1613-21272 LOCKWASHER, DETENT SPRING SCREWLOCKWASHER, DETENT SPRING SCREW
-
1724-39627 SPRING, DETENT - SHIFT CONTROL LEVERSPRING, DETENT - SHIFT CONTROL LEVER
-
1839601 PLATE, DETENT SPRINGPLATE, DETENT SPRING
-
1910-25764 SCREW, PLATE AND SPRING TO ADAPTOR PLATESCREW, PLATE AND SPRING TO ADAPTOR PLATE
-
2023-30677 BUSHING, NYLON - UPPER SHIFT SHAFTBUSHING, NYLON - UPPER SHIFT SHAFT
-
2145250A2 SHIFT SHAFT ASEMBLY, UPPER
SERIAL 00000000-01987829SHIFT SHAFT ASEMBLY, UPPER
SERIAL 00000000-01987829 -
2145250A2 SHIFT SHAFT ASSEMBLY, UPPER
SERIAL 01987830-09999999SHIFT SHAFT ASSEMBLY, UPPER
SERIAL 01987830-09999999 -
2243-32453 GEAR, SECTOR - UPPER SHIFT SHAFTGEAR, SECTOR - UPPER SHIFT SHAFT
-
22A43-86686A1 GEAR, SECTOR - SHIFT SHAFT
SECTOR GEAR IS INCLUDED WITH GEAR HOUSING ASSEMBLY, COMPLETE.GEAR, SECTOR - SHIFT SHAFT
SECTOR GEAR IS INCLUDED WITH GEAR HOUSING ASSEMBLY, COMPLETE. -
22A43-86686A1 GEAR, SECTOR - SHIFT SHAFT
SECTOR GEAR IS INCLUDED WITH GEAR HOUSING ASSEMBLY, COMPLETE.GEAR, SECTOR - SHIFT SHAFT
SECTOR GEAR IS INCLUDED WITH GEAR HOUSING ASSEMBLY, COMPLETE.
Все узлы модели:
- BOTTOM COWL AND ADAPTOR PLATE
- CARBURETOR ASSEMBLY
- CARBURETOR CHOKE LINKAGE
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- CRANKSHAFT AND MAIN BEARING ASSEMBLY
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE
- FLYWHEEL, STATOR AND IGNITION COIL
- FUEL PUMP ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE
- GEAR HOUSING ASSEMBLY, COMPLETE(CONT)
- MISCELLANEOUS/ACCESSORIES
- PISTON AND CONNECTING ROD ASSEMBLY
- • SHIFT CONTROL LINKAGE
- STATOR PLATE ASSEMBLY
- STEERING HANDLE ASSEMBLY
- THROTTLE CONTROL LINKAGE
- TOP COWL AND STARTER ASSEMBLY
