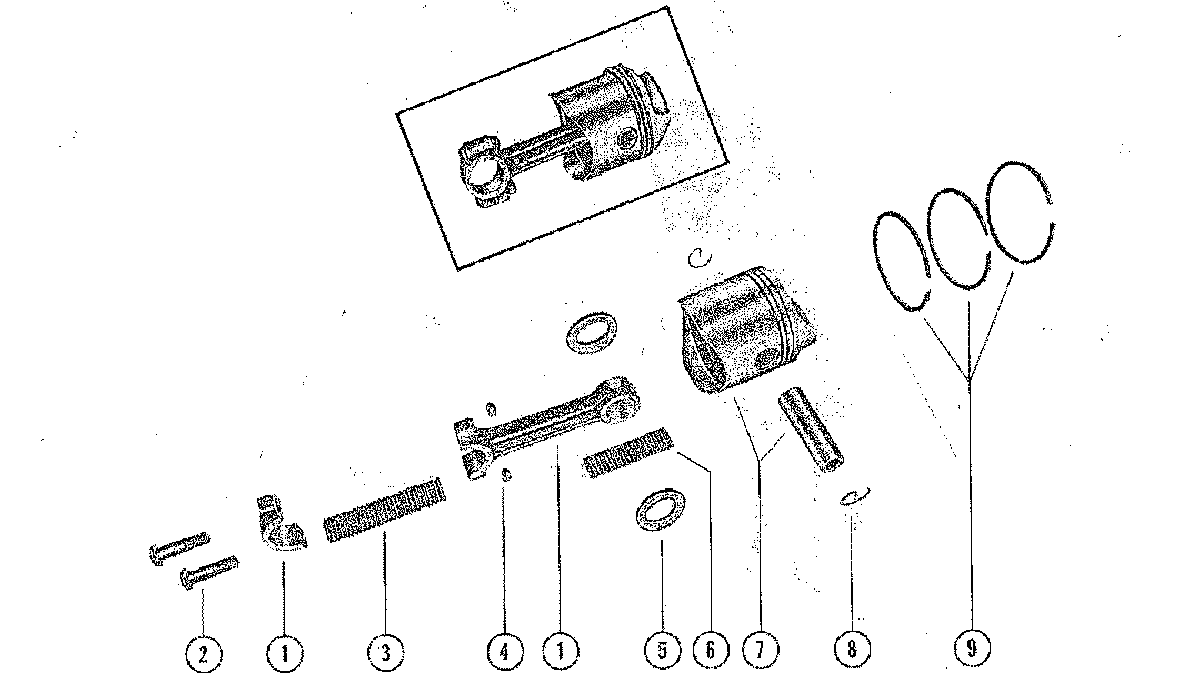

PISTON AND CONNECTING ROD ASSEMBLY для Mercury - 110 1865779 THRU 2798056

  • №
    Артикул
    Название
  • 1
    608-7395A2 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 2
    10-87374 SCREW, CONNECTING ROD
    SCREW, CONNECTING ROD
  • 3
    31-8M0045032 BEARING, NEEDLE - CRANKPIN
    BEARING, NEEDLE - CRANKPIN
  • 4
    11-20061 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 5
    12-31433 WASHER, NEEDLE BEARING RETAINING
    WASHER, NEEDLE BEARING RETAINING
  • 6
    29-31505 BEARING, NEEDLE - PISTON PIN
    BEARING, NEEDLE - PISTON PIN
  • 7
    719-7391T3 PISTON/PIN ASS'Y
    PISTON/PIN ASS'Y
  • 7
    719-7391T3 PISTON/PIN ASS'Y
    SERIAL 00000000-02387383
    PISTON/PIN ASS'Y
    SERIAL 00000000-02387383
  • 7
    719-7391T3 PISTON/PIN ASS'Y
    SERIAL 02387384-09999999
    PISTON/PIN ASS'Y
    SERIAL 02387384-09999999
  • 8
    40-21666 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 9
    39-21665A12 RING, PISTON
    RING, PISTON
