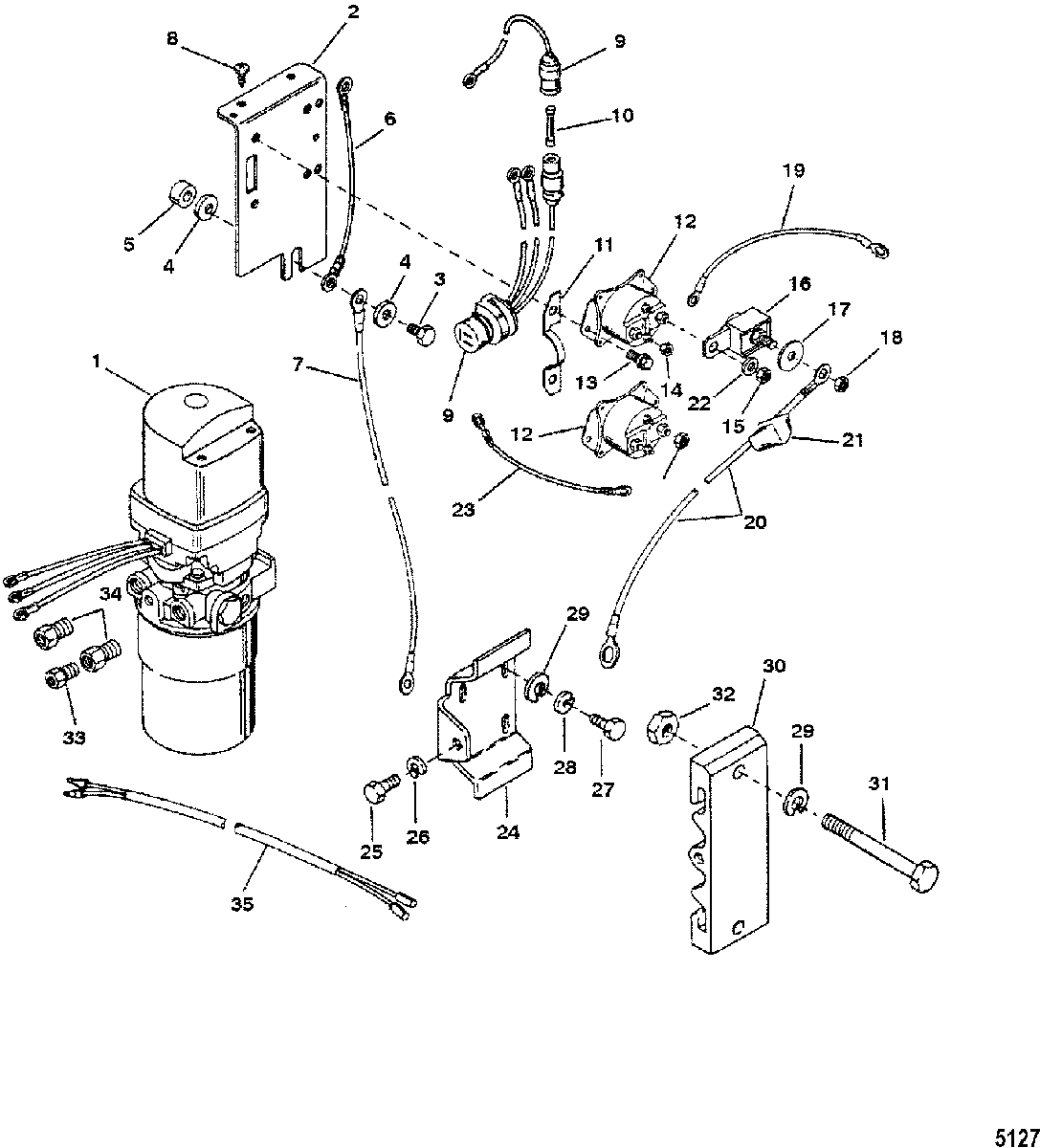

HYDRAULIC PUMP AND BRACKETS(III-IV-V) (OILDYNE) для Mercruiser - ALPHA ONE SS 1986-1989 ALL THRU none

  • №
    Артикул
    Название
  • -
    846859A4 PUMP ASSEMBLY, Hydraulic
    (COMPLETE) (OILDYNE)
    PUMP ASSEMBLY, Hydraulic
    (COMPLETE) (OILDYNE)
  • 1
    8M0051203 PUMP ASSEMBLY, Hydraulic
    (See Hydraulic Pump Assembly for Breakdown)
    PUMP ASSEMBLY, Hydraulic
    (See Hydraulic Pump Assembly for Breakdown)
  • 2
    818567 BRACKET, Relay Mount
    BRACKET, Relay Mount
  • 3
    10-38837 SCREW, (.312-18 x 1.12)
    SCREW, (.312-18 x 1.12)
  • 4
    12-57792 WASHER
    WASHER
  • 5
    23-34948 SPACER
    SPACER
  • 6
    84-65999A12 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 7
    84-79138A9 CABLE ASSEMBLY, (6.00 Feet) Black-Negative (NEGATIVE)
    CABLE ASSEMBLY, (6.00 Feet) Black-Negative (NEGATIVE)
  • 8
    10-92051 SCREW, (10-16 x .75)
    SCREW, (10-16 x .75)
  • 9
    84-79147A5 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 10
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 11
    88075 RETAINER, Harness Connector
    RETAINER, Harness Connector
  • 12
    89-853654A1 SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 13
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 14
    11-20110 NUT, (#10-32)
    NUT, (#10-32)
  • 15
    11-26484 NUT, (.312-18)
    NUT, (.312-18)
  • 16
    88-79023T10 FUSE ASSEMBLY, 110 Ampere
    FUSE ASSEMBLY, 110 Ampere
  • 17
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 18
    11-21825 NUT, (.250-28)
    NUT, (.250-28)
  • 19
    84-65999A11 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 20
    84-79139A12 CABLE ASSEMBLY, Red-Positive (POSITIVE)
    CABLE ASSEMBLY, Red-Positive (POSITIVE)
  • 21
    46265 BOOT
    BOOT
  • 22
    12-22753 WASHER
    WASHER
  • 23
    84-79139A26 CABLE ASSEMBLY, Red
    CABLE ASSEMBLY, Red
  • 24
    87760T PLATE, Mounting
    PLATE, Mounting
  • 25
    10-39349 SCREW, (.312-18 x .750) Stainless Steel
    SCREW, (.312-18 x .750) Stainless Steel
  • 26
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 27
    10-90271 SCREW, (.375-16 x .62)
    SCREW, (.375-16 x .62)
  • 28
    13-58643 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 29
    12-856774 WASHER, (.406 x .750 x .104)
    WASHER, (.406 x .750 x .104)
  • 30
    87762 BRACKET
    BRACKET
  • 31
    10-63826 SCREW, (.375-16 x 2.50)
    SCREW, (.375-16 x 2.50)
  • 32
    11-82670912 NUT, (.375-16)
    NUT, (.375-16)
  • 33
    22-818200 FITTING
    FITTING
  • 34
    22-77366 FITTING
    FITTING
  • 35
    84-65017A14 HARNESS ASSEMBLY, Tilt
    HARNESS ASSEMBLY, Tilt
