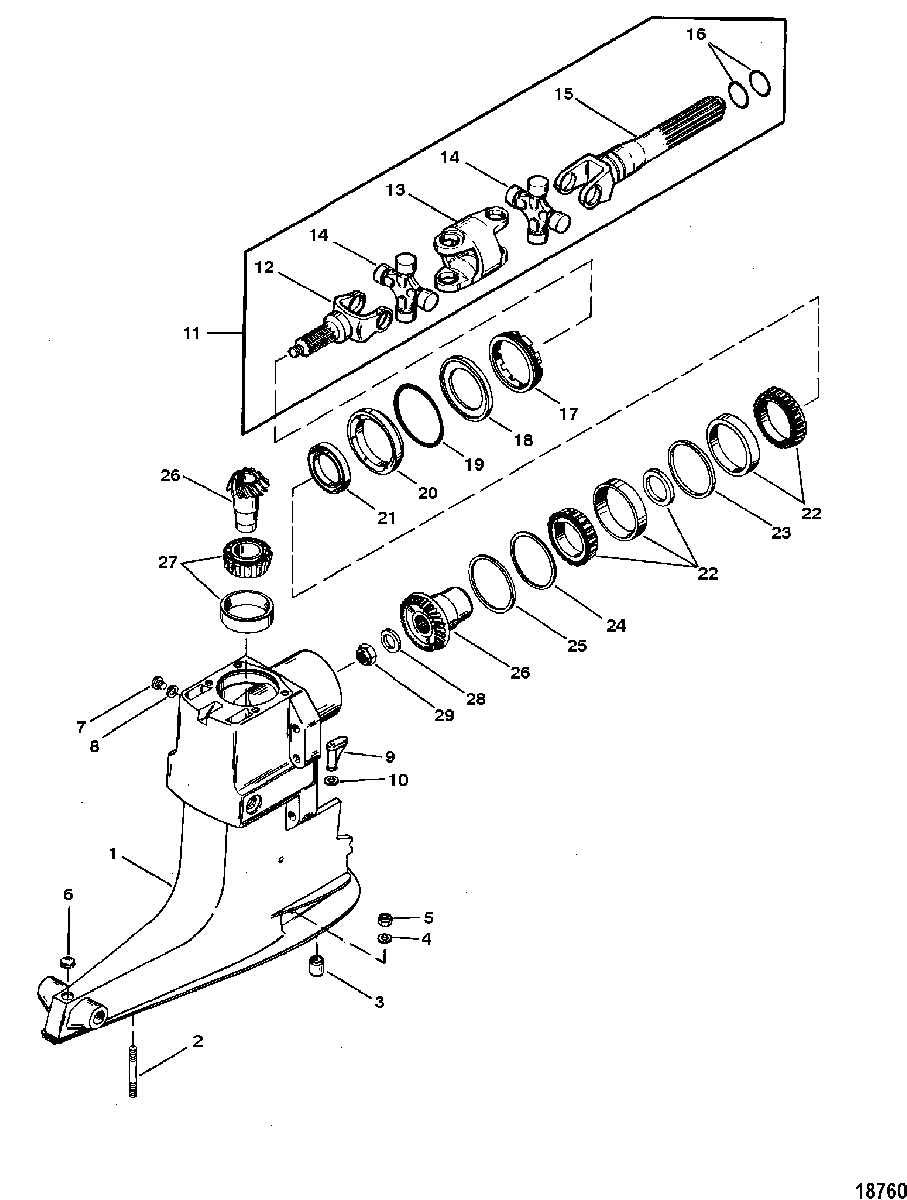

DRIVESHAFT HOUSING AND GEAR ASSY(ALPHA ONE-SS) для Mercruiser - ALPHA ONE SS 1986-1989 ALL THRU none

  • №
    Артикул
    Название
  • 1
    3500-9552A5 HOUSING ASSEMBLY, Driveshaft
    HOUSING ASSEMBLY, Driveshaft
  • 2
    16-56295 STUD, (.437 x 2.69)
    STUD, (.437 x 2.69)
  • 3
    23-812846 BUSHING
    BUSHING
  • 4
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 5
    11-859116 NUT, (.4375-20)
    NUT, (.4375-20)
  • 6
    19-47579 PLUG
    PLUG
  • 7
    10-79953Q04 SCREW, (.375-16 x .250)
    SCREW, (.375-16 x .250)
  • 8
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 9
    12625 SHIFTER
    SHIFTER
  • 10
    53-12626 RING, Retaining
    RING, Retaining
  • 11
    814819A2 UNIVERSAL JOINT
    UNIVERSAL JOINT
  • 12
    46020T02 YOKE, Gear End
    YOKE, Gear End
  • 13
    393831 SOCKET, Center
    SOCKET, Center
  • 14
    75832T1 CROSS AND BEARING
    CROSS AND BEARING
  • 15
    59830A7 YOKE ASSEMBLY (Coupling End)
    YOKE ASSEMBLY (Coupling End)
  • 16
    25-25439 O-RING, (.862 x .103)
    O-RING, (.862 x .103)
  • 17
    8168112 RETAINER
    RETAINER
  • 18
    35983 RING
    RING
  • 19
    25-70937 O-RING
    O-RING
  • 20
    66081A2 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 21
    26-823894 SEAL, Oil
    SEAL, Oil
  • 22
    31-35988A9 BEARING ASSEMBLY
    (1.50:1 RATIO)(STEP SHOULDER GEAR)
    BEARING ASSEMBLY
    (1.50:1 RATIO)(STEP SHOULDER GEAR)
  • 22
    31-35988A12 BEARING ASSEMBLY, Tapered Roller
    (1.50:1 RATIO)(STRAIGHT SHOULDER GEAR)
    BEARING ASSEMBLY, Tapered Roller
    (1.50:1 RATIO)(STRAIGHT SHOULDER GEAR)
  • 22
    31-35988A3 BEARING ASSEMBLY, Tapered Roller
    (1.32:1 RATIO)
    BEARING ASSEMBLY, Tapered Roller
    (1.32:1 RATIO)
  • 23
    23-66824 SPACER
    (1.50:1 RATIO)(STEP SHOULDER GEAR)
    SPACER
    (1.50:1 RATIO)(STEP SHOULDER GEAR)
  • 23
    23-35985 SPACER
    (1.50:1 RATIO)(STRAIGHT SHOULDER GEAR)
    SPACER
    (1.50:1 RATIO)(STRAIGHT SHOULDER GEAR)
  • 23
    23-66824 SPACER
    (1.32:1 RATIO)
    SPACER
    (1.32:1 RATIO)
  • 24
    15-35980A1 SHIM SET
    SHIM SET
  • 25
    23-8M0124132 SHIM, Spacer
    SHIM, Spacer
  • 26
    43-18411A4 GEAR SET (Pinion and Drive)
    (1.50:1 RATIO) (20-22 GEAR RATIO)
    GEAR SET (Pinion and Drive)
    (1.50:1 RATIO) (20-22 GEAR RATIO)
  • 26
    43-8M0080756 GEAR SET (Pinion and Drive)
    (1.32:1 RATIO) (16-20 GEAR RATIO)
    GEAR SET (Pinion and Drive)
    (1.32:1 RATIO) (16-20 GEAR RATIO)
  • 27
    31-32573A1 BEARING ASSEMBLY, Roller
    (1.50:1 RATIO)
    BEARING ASSEMBLY, Roller
    (1.50:1 RATIO)
  • 27
    31-66818A1 BEARING ASSEMBLY, Tapered Roller
    (1.32:1 RATIO)
    BEARING ASSEMBLY, Tapered Roller
    (1.32:1 RATIO)
  • 28
    12-45810 WASHER
    WASHER
  • 29
    11-22339 NUT, (.625-18)
    NUT, (.625-18)
  • -
    26-32511A1 SEAL KIT
    SEAL KIT
