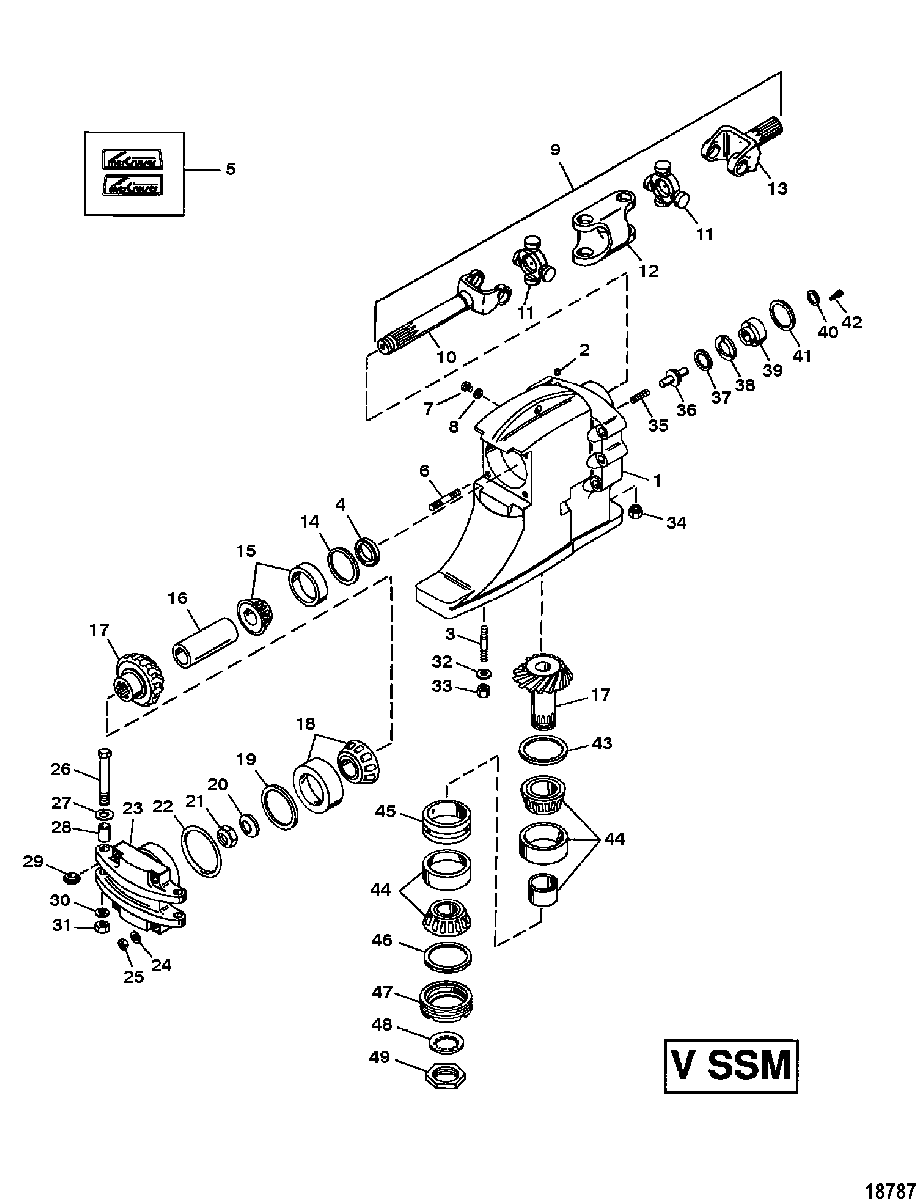

DRIVESHAFT HOUSING AND GEAR ASSY(V SSM) для Mercruiser - ALPHA ONE SS 1986-1989 ALL THRU none
-
№АртикулНазвание
-
13509-9806A2 HOUSING ASSEMBLY, DriveshaftHOUSING ASSEMBLY, Driveshaft
-
222-56800 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
316-57985 STUD (2.810)STUD (2.810)
-
426-38105 SEAL, OilSEAL, Oil
-
537-14489A90 DECAL SETDECAL SET
-
616-13208 STUDSTUD
-
722-8M0058389 SCREW, (.735-16), Vent (Magnetic)SCREW, (.735-16), Vent (Magnetic)
-
812-191833 WASHER, FiberWASHER, Fiber
-
944253T1 UNIVERSAL JOINT ASSEMBLYUNIVERSAL JOINT ASSEMBLY
-
1044271 YOKE (Driven End)YOKE (Driven End)
-
118M0085593 CROSS AND BEARING ASSEMBLYCROSS AND BEARING ASSEMBLY
-
1263575T SOCKETSOCKET
-
1344253 YOKE (Driving End)YOKE (Driving End)
-
1415-36178A02 SHIM SETSHIM SET
-
1531-39908T1 BEARING ASSEBMLY, Tapered RollerBEARING ASSEBMLY, Tapered Roller
-
1623-8M0050924 SPACERSPACER
-
1743-818653A2 GEAR SET (Pinion and Drive)
(1.00:1 RATIO) (POLYGON DRIVESHAFT)GEAR SET (Pinion and Drive)
(1.00:1 RATIO) (POLYGON DRIVESHAFT) -
1743-818654A2 GEAR SET (Pinion and Drive)
(1.18:1 RATIO) (POLYGON DRIVESHAFT)GEAR SET (Pinion and Drive)
(1.18:1 RATIO) (POLYGON DRIVESHAFT) -
1743-818655A2 GEAR SET (Pinion and Drive)
(1.25:1 RATIO) (POLYGON DRIVESHAFT)GEAR SET (Pinion and Drive)
(1.25:1 RATIO) (POLYGON DRIVESHAFT) -
1743-818656A2 GEAR SET (Pinion and Drive)
(1.33:1 RATIO) (POLYGON DRIVESHAFT)GEAR SET (Pinion and Drive)
(1.33:1 RATIO) (POLYGON DRIVESHAFT) -
1743-818657A2 GEAR SET (Pinion and Drive)
(1.40:1 RATIO) (POLYGON DRIVESHAFT)GEAR SET (Pinion and Drive)
(1.40:1 RATIO) (POLYGON DRIVESHAFT) -
1743-848150A2 GEAR SET (Pinion and Drive)
(1.50:1 RATIO) (POLYGON DRIVESHAFT)GEAR SET (Pinion and Drive)
(1.50:1 RATIO) (POLYGON DRIVESHAFT) -
1743-818653A1 GEAR SET (Pinion and Drive)
(1.00:1 RATIO) (SPLINED DRIVESHAFT)GEAR SET (Pinion and Drive)
(1.00:1 RATIO) (SPLINED DRIVESHAFT) -
1743-818654A1 GEAR SET (Pinion and Drive)
(1.18:1 RATIO) (SPLINED DRIVESHAFT)GEAR SET (Pinion and Drive)
(1.18:1 RATIO) (SPLINED DRIVESHAFT) -
1743-818655A1 GEAR SET (Pinion and Drive)
(1.25:1 RATIO) (SPLINED DRIVESHAFT)GEAR SET (Pinion and Drive)
(1.25:1 RATIO) (SPLINED DRIVESHAFT) -
1743-847823A1 GEAR SET (Pinion and Drive)
(1.31:1 RATIO) (SPLINED DRIVESHAFT)GEAR SET (Pinion and Drive)
(1.31:1 RATIO) (SPLINED DRIVESHAFT) -
1743-818656A2 GEAR SET (Pinion and Drive)
(1.33:1 RATIO) (SPLINED DRIVESHAFT)GEAR SET (Pinion and Drive)
(1.33:1 RATIO) (SPLINED DRIVESHAFT) -
1743-818657A1 GEAR SET (Pinion and Drive)
(1.40:1 RATIO) (SPLINED DRIVESHAFT)GEAR SET (Pinion and Drive)
(1.40:1 RATIO) (SPLINED DRIVESHAFT) -
1743-847825A1 GEAR SET (Pinion and Drive)
(1.44:1 RATIO) (SPLINED DRIVESHAFT)GEAR SET (Pinion and Drive)
(1.44:1 RATIO) (SPLINED DRIVESHAFT) -
1743-848150T1 GEAR SET (Pinion and Drive)
(1.50:1 RATIO) (SPLINED DRIVESHAFT)GEAR SET (Pinion and Drive)
(1.50:1 RATIO) (SPLINED DRIVESHAFT) -
1831-34804T3 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1915-34822A1 SHIM SETSHIM SET
-
2012-53212 WASHERWASHER
-
2111-82671327 NUT (1.00-14)NUT (1.00-14)
-
2225-47291 O-RINGO-RING
-
2312702T COVER (Rear)COVER (Rear)
-
2412-540121 WASHER, (.530 x .880 x .104) 630 Stainless SteelWASHER, (.530 x .880 x .104) 630 Stainless Steel
-
2511-35000 NUT, (.500-20)NUT, (.500-20)
-
2610-677551 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
2712-540121 WASHER, (.530 x .880 x .104) 630 Stainless SteelWASHER, (.530 x .880 x .104) 630 Stainless Steel
-
2823-85322 SPACERSPACER
-
2923-840229 SPACERSPACER
-
3012-24501 WASHERWASHER
-
3111-35000 NUT, (.500-20)NUT, (.500-20)
-
3212-180451 WASHERWASHER
-
3311-47302 NUT, (.562-18) Stainless SteelNUT, (.562-18) Stainless Steel
-
3411-47302 NUT, (.562-18) Stainless SteelNUT, (.562-18) Stainless Steel
-
3524-48442 SPRINGSPRING
-
3620-48219 CHECK VALVECHECK VALVE
-
3725-48452 QUAD RINGQUAD RING
-
3827-669251 GASKETGASKET
-
3912701A1 VALVE GUIDE ASSEMBLYVALVE GUIDE ASSEMBLY
-
4026-66301 SEAL, OilSEAL, Oil
-
4125-33145 O-RING, (1.984 x .139)O-RING, (1.984 x .139)
-
4210-56786 SCREW, (#8-32 x .750)SCREW, (#8-32 x .750)
-
4315-19032A1 SHIM SET
(.002 THRU .035 THICK)SHIM SET
(.002 THRU .035 THICK) -
4315-19032A2 SHIM SET
(.036 THRU .048 THICK)SHIM SET
(.036 THRU .048 THICK) -
4431-19182T2 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
4523-18998 SPACERSPACER
-
4623-18997 SPACERSPACER
-
47816230 RETAINERRETAINER
-
4812-817303 WASHERWASHER
-
4911-19039 NUT (Special)NUT (Special)
