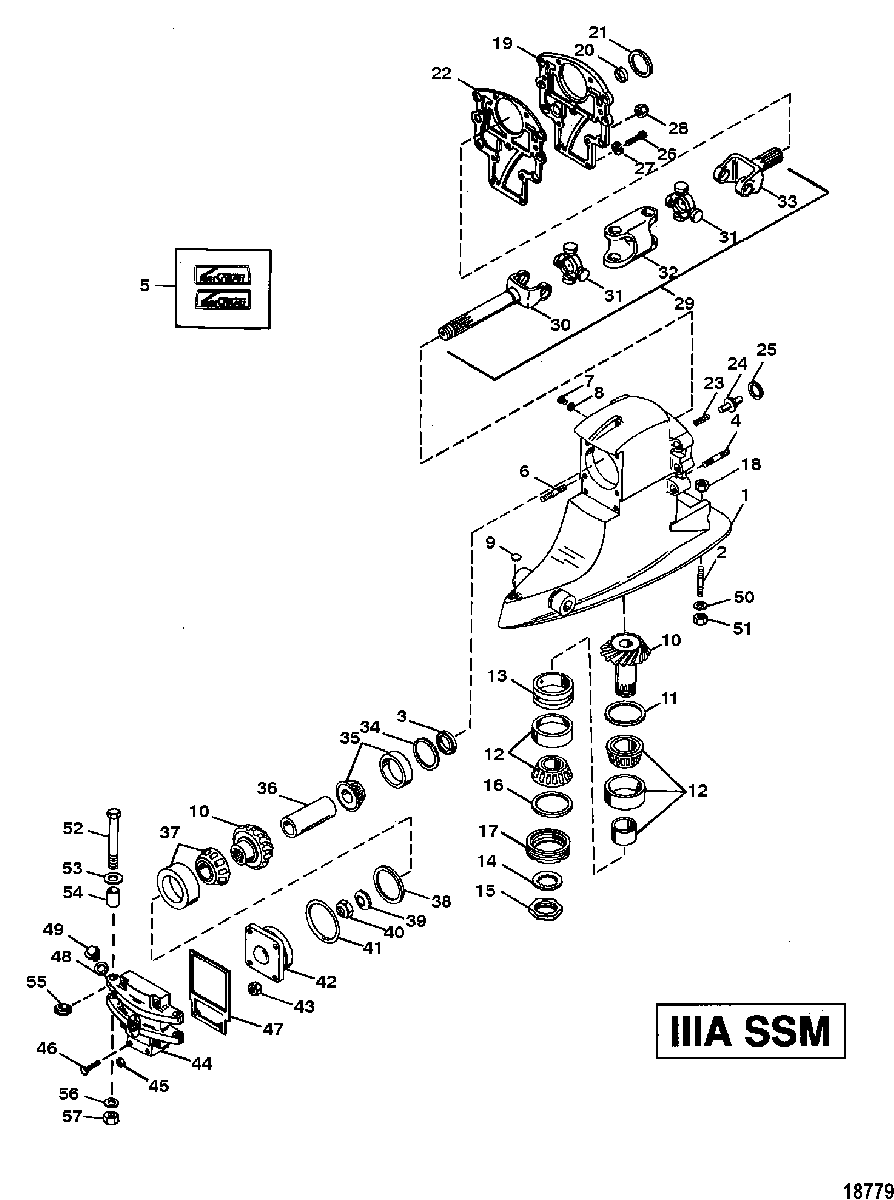

DRIVESHAFT HOUSING AND GEAR ASSY(IIIA SSM) для Mercruiser - ALPHA ONE SS 1986-1989 ALL THRU none
-
№АртикулНазвание
-
11567-817092A12 HOUSING ASSEMBLY, DriveshaftHOUSING ASSEMBLY, Driveshaft
-
216-57985 STUD (2.810)STUD (2.810)
-
326-38105 SEAL, OilSEAL, Oil
-
416-8M0022145 STUD, (.375-16/.375-24 x 1.750)STUD, (.375-16/.375-24 x 1.750)
-
537-14489A90 DECAL SETDECAL SET
-
616-57984 STUD, (.437-14/.437-20 x 2.380)STUD, (.437-14/.437-20 x 2.380)
-
616-57983 STUD (.437-14 x 2.875)STUD (.437-14 x 2.875)
-
722-8M0058389 SCREW, Magnetic, Vent (.375-16)SCREW, Magnetic, Vent (.375-16)
-
812-191833 WASHER, FiberWASHER, Fiber
-
919-47579 PLUGPLUG
-
1043-818653A1 GEAR SET (Pinion and Drive)
(1.00:1 RATIO)GEAR SET (Pinion and Drive)
(1.00:1 RATIO) -
1043-818654A1 GEAR SET (Pinion and Drive)
(1.18:1 RATIO)GEAR SET (Pinion and Drive)
(1.18:1 RATIO) -
1043-818655A1 GEAR SET (Pinion and Drive)
(1.25:1 RATIO)GEAR SET (Pinion and Drive)
(1.25:1 RATIO) -
1043-847823A1 GEAR SET (Pinion and Drive)
(1.31:1 RATIO)GEAR SET (Pinion and Drive)
(1.31:1 RATIO) -
1043-818656A2 GEAR SET (Pinion and Drive)
(1.33:1 RATIO)GEAR SET (Pinion and Drive)
(1.33:1 RATIO) -
1043-818657A1 GEAR SET (Pinion and Drive)
(1.40:1 RATIO)GEAR SET (Pinion and Drive)
(1.40:1 RATIO) -
1043-847825A1 GEAR SET (Pinion and Drive)
(1.44:1 RATIO)GEAR SET (Pinion and Drive)
(1.44:1 RATIO) -
1043-848150T1 GEAR SET (Pinion and Drive)
(1.50:1 RATIO)GEAR SET (Pinion and Drive)
(1.50:1 RATIO) -
1115-19032A1 SHIM SET
(.002 THRU .035 THICK)SHIM SET
(.002 THRU .035 THICK) -
1115-19032A2 SHIM SET
(.036 THRU .048 THICK)SHIM SET
(.036 THRU .048 THICK) -
1231-19182T2 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1323-18998 SPACERSPACER
-
1412-817303 WASHERWASHER
-
1511-19039 NUT (Special)NUT (Special)
-
1623-18997 SPACERSPACER
-
17816230 RETAINERRETAINER
-
1811-47302 NUT, (.562-18) Stainless SteelNUT, (.562-18) Stainless Steel
-
1958619A1 COVER ASSEMBLY (Front)COVER ASSEMBLY (Front)
-
2026-48443 SEAL, OilSEAL, Oil
-
2125-26722 O-RINGO-RING
-
2227-48407 GASKETGASKET
-
2324-48442 SPRINGSPRING
-
2420-48219 CHECK VALVECHECK VALVE
-
2525-48452 QUAD RINGQUAD RING
-
2610-90042 SCREW, (.437-14 x 1.500) Stainless SteelSCREW, (.437-14 x 1.500) Stainless Steel
-
2713-47659 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
2811-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
2944253T1 UNIVERSAL JOINT ASSEMBLYUNIVERSAL JOINT ASSEMBLY
-
3044271 YOKE (Gear End)YOKE (Gear End)
-
318M0085593 CROSS AND BEARING ASSEMBLYCROSS AND BEARING ASSEMBLY
-
3263575T SOCKETSOCKET
-
3344253 YOKE (Coupling End)YOKE (Coupling End)
-
3415-36178A02 SHIM SETSHIM SET
-
3531-39908T1 BEARING ASSEBMLY, Tapered RollerBEARING ASSEBMLY, Tapered Roller
-
3623-8M0050924 SPACERSPACER
-
3731-34804T3 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
3815-34822A1 SHIM SETSHIM SET
-
3912-53212 WASHERWASHER
-
4011-82671327 NUT (1.00-14)NUT (1.00-14)
-
4125-47291 O-RINGO-RING
-
4247314 RETAINERRETAINER
-
4311-35053 NUT, (.437-20)NUT, (.437-20)
-
44951061 BRACKET, Back CoverBRACKET, Back Cover
-
4511-35053 NUT, (.437-20)NUT, (.437-20)
-
4610-842787 SCREW, (.375-16 x 2.00)SCREW, (.375-16 x 2.00)
-
4727-53058 GASKETGASKET
-
4825-90196 O-RING, (.921 x .139)O-RING, (.921 x .139)
-
4922-320181 PLUGPLUG
-
5012-180451 WASHERWASHER
-
5111-47302 NUT, (.562-18) Stainless SteelNUT, (.562-18) Stainless Steel
-
5210-677551 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
5312-540121 WASHER, (.530 x .880 x .104) 630 Stainless SteelWASHER, (.530 x .880 x .104) 630 Stainless Steel
-
5423-85322 SPACERSPACER
-
5523-840229 SPACERSPACER
-
5612-24501 WASHERWASHER
-
5711-35000 NUT, (.500-20) Stainless SteelNUT, (.500-20) Stainless Steel
-
-1567-817092T11 REBUILD KITREBUILD KIT
