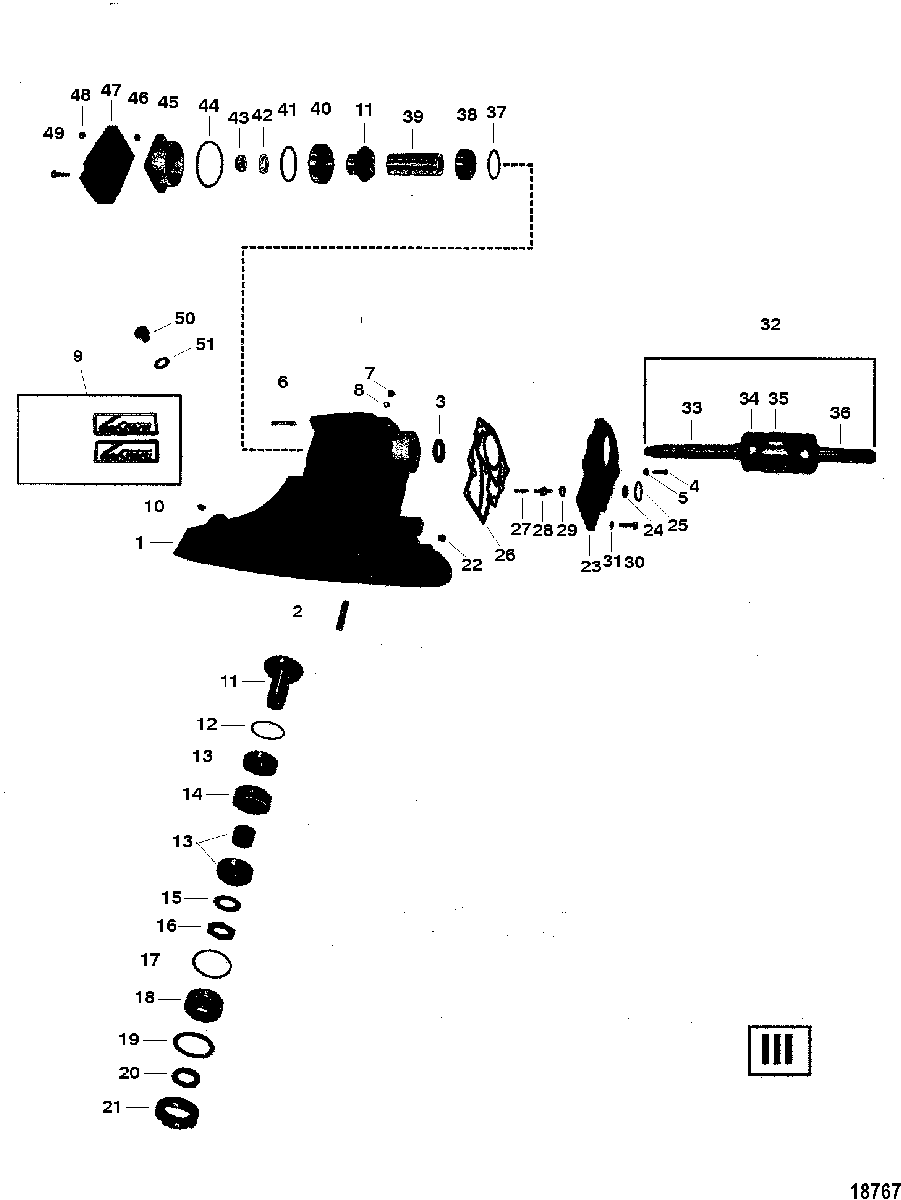

DRIVESHAFT HOUSING AND GEAR ASSEMBLY(III) для Mercruiser - ALPHA ONE SS 1986-1989 ALL THRU none

  • №
    Артикул
    Название
  • 1
    1567-3152A37 HOUSING ASSEMBLY, Driveshaft
    HOUSING ASSEMBLY, Driveshaft
  • 2
    16-57985 STUD (2.81 In.)
    STUD (2.81 In.)
  • 3
    26-38105 SEAL, Oil
    SEAL, Oil
  • 4
    10-58642 SCREW, (.375-16 x 1.50) Stainless Steel
    SCREW, (.375-16 x 1.50) Stainless Steel
  • 5
    13-58643 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 6
    16-57984 STUD, (.437-14/.437-20 x 2.380)
    STUD, (.437-14/.437-20 x 2.380)
  • 6
    16-57983 STUD (.437-20 x 2.875)
    STUD (.437-20 x 2.875)
  • 7
    10-79953Q04 SCREW, (.375-16 x .250)
    SCREW, (.375-16 x .250)
  • 8
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 9
    37-14489A90 DECAL SET
    DECAL SET
  • 10
    19-47579 PLUG
    PLUG
  • 11
    43-813941A2 GEAR ASSEMBLY
    (PINION AND DRIVE) (1.50:1 RATIO)
    GEAR ASSEMBLY
    (PINION AND DRIVE) (1.50:1 RATIO)
  • 11
    43-47237A1 GEAR ASSEMBLY
    (PINION AND DRIVE) (2.00:1 RATIO)
    GEAR ASSEMBLY
    (PINION AND DRIVE) (2.00:1 RATIO)
  • 12
    15-34800A1 SHIM SET
    SHIM SET
  • 13
    31-34804T4 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 14
    23-47285 SPACER
    SPACER
  • 15
    12-47451 WASHER
    WASHER
  • 16
    11-47449 NUT (Special)
    NUT (Special)
  • 17
    25-47288 O-RING
    O-RING
  • 18
    47303 ADAPTOR
    ADAPTOR
  • 19
    12-47289 WASHER
    WASHER
  • 20
    27-47290 GASKET
    GASKET
  • 21
    47304 RETAINER
    RETAINER
  • 22
    11-47302 NUT, (.562-18) Stainless Steel
    NUT, (.562-18) Stainless Steel
  • 22
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 23
    58619A1 COVER ASSEMBLY (Front)
    COVER ASSEMBLY (Front)
  • 24
    26-48443 SEAL, Oil
    SEAL, Oil
  • 25
    25-26722 O-RING
    O-RING
  • 26
    27-48407 GASKET
    GASKET
  • 27
    24-48442 SPRING
    SPRING
  • 28
    20-48219 CHECK VALVE
    CHECK VALVE
  • 29
    25-48452 QUAD RING
    QUAD RING
  • 30
    10-47658 SCREW, (.437-14 x 1.50) Stainless Steel (.437-14 x 1.50)
    SCREW, (.437-14 x 1.50) Stainless Steel (.437-14 x 1.50)
  • 31
    13-47659 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 32
    44253T1 UNIVERSAL JOINT ASSEMBLY
    UNIVERSAL JOINT ASSEMBLY
  • 33
    44271 YOKE (Driven End)
    YOKE (Driven End)
  • 34
    8M0085593 CROSS AND BEARING ASSEMBLY
    CROSS AND BEARING ASSEMBLY
  • 35
    63575T SOCKET
    SOCKET
  • 36
    44253 YOKE (Driving End)
    YOKE (Driving End)
  • 37
    15-36178A02 SHIM SET
    SHIM SET
  • 38
    31-39908T1 BEARING ASSEBMLY, Tapered Roller
    BEARING ASSEBMLY, Tapered Roller
  • 39
    23-8M0050924 SPACER
    SPACER
  • 40
    31-34804T3 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 41
    15-34822A1 SHIM SET
    SHIM SET
  • 42
    12-53212 WASHER
    WASHER
  • 43
    11-82671327 NUT (1.00-14)
    NUT (1.00-14)
  • 44
    25-47291 O-RING
    O-RING
  • 45
    47314 RETAINER
    RETAINER
  • 46
    11-35053 NUT, (.437-20)
    NUT, (.437-20)
  • 47
    53053 COVER (Rear)
    COVER (Rear)
  • 48
    11-35053 NUT, (.437-20)
    NUT, (.437-20)
  • 49
    10-842787 SCREW, (.375-16 x 2.00)
    SCREW, (.375-16 x 2.00)
  • 50
    22-320181 PLUG
    PLUG
  • 51
    25-35126 O-RING, (.859 x .139)
    O-RING, (.859 x .139)
