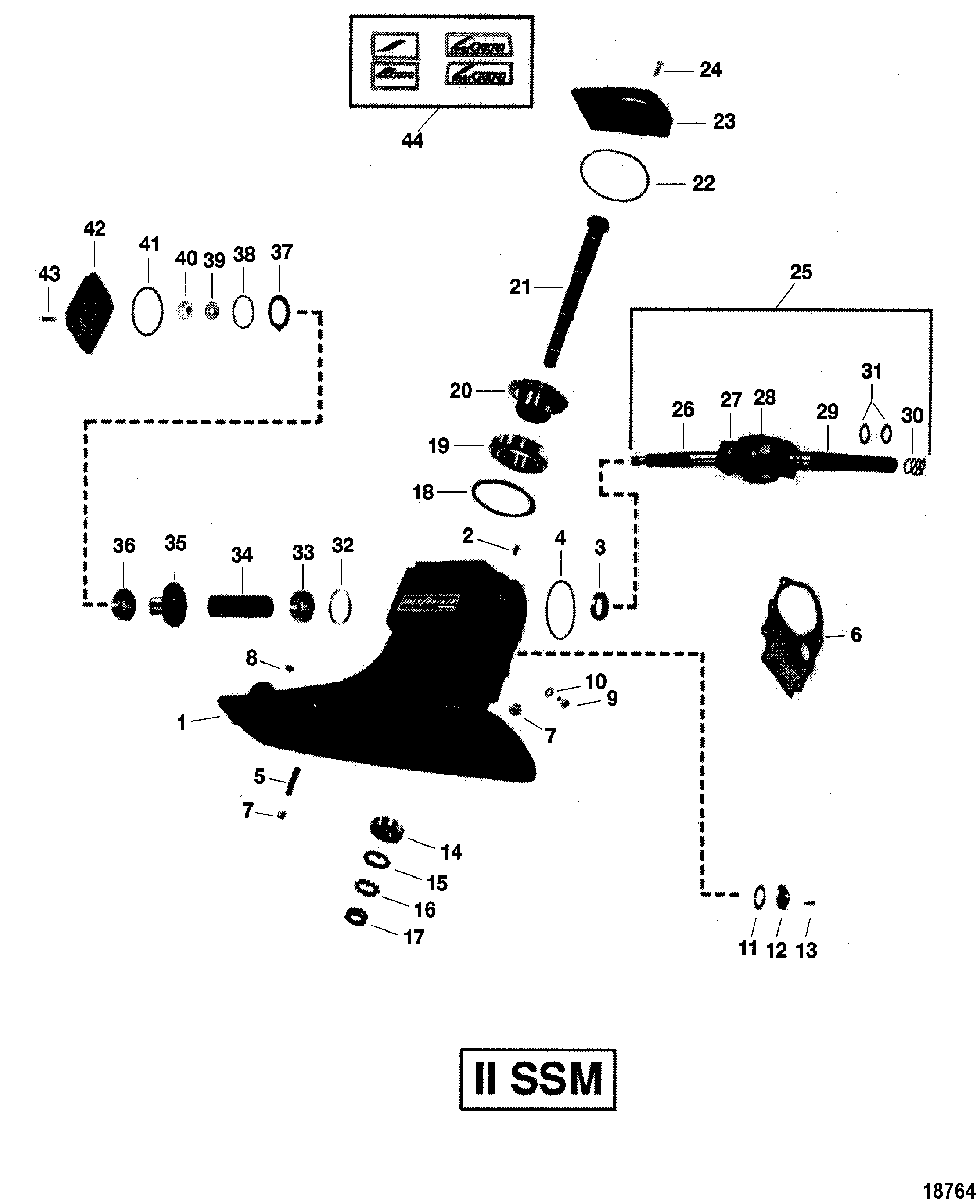

DRIVESHAFT HOUSING AND GEAR ASSEMBLY(II SSM) для Mercruiser - ALPHA ONE SS 1986-1989 ALL THRU none
-
№АртикулНазвание
-
11571-4847A5 HOUSING ASSEMBLY, DriveshaftHOUSING ASSEMBLY, Driveshaft
-
210-21934 SCREW, (.375-16 x .500)SCREW, (.375-16 x .500)
-
326-62818 SEAL, OilSEAL, Oil
-
425-62817 O-RINGO-RING
-
516-57984 STUD (.437-20 x 2.500)STUD (.437-20 x 2.500)
-
516-57921 STUD, (.437-14/.437-20 x 4.00)STUD, (.437-14/.437-20 x 4.00)
-
671945 PLATE, Bell Housing To Driveshaft HousingPLATE, Bell Housing To Driveshaft Housing
-
711-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
819-47579 PLUGPLUG
-
910-79953Q04 SCREW, (.375-16 x .250)SCREW, (.375-16 x .250)
-
1012-191833 WASHER, FiberWASHER, Fiber
-
1127-669251 GASKETGASKET
-
1289818 COVERCOVER
-
1310-55515 SCREW, (#10-32 x .750)SCREW, (#10-32 x .750)
-
1431-38356A1 BEARING SET, DriveshaftBEARING SET, Driveshaft
-
1512-62795 WASHER, TabWASHER, Tab
-
1613-62788 LOCKWASHERLOCKWASHER
-
1711-41527T NUTNUT
-
1815-846353A1 SHIM SETSHIM SET
-
1931-62799A1 BEARING SET, Drive GearBEARING SET, Drive Gear
-
2043-62879T1 GEAR, Driven, Driven (2:1 Ratio)GEAR, Driven, Driven (2:1 Ratio)
-
2145-62793T DRIVESHAFTDRIVESHAFT
-
2225-67202 O-RINGO-RING
-
2362911T COVERCOVER
-
2410-35047 SCREW, (.375-16 x 1.250) Stainless SteelSCREW, (.375-16 x 1.250) Stainless Steel
-
2562782A8 UNIVERSAL JOINT ASSEMBLY
(FEMALE YOKE)UNIVERSAL JOINT ASSEMBLY
(FEMALE YOKE) -
2562782A4 UNIVERSAL JOINT ASSEMBLY
(MALE YOKE)UNIVERSAL JOINT ASSEMBLY
(MALE YOKE) -
2662782A6 STUB ASSEMBLY (Gear End)STUB ASSEMBLY (Gear End)
-
2775832T1 CROSS AND BEARINGCROSS AND BEARING
-
28393831 SOCKET, Center, DoubleSOCKET, Center, Double
-
2962784A1 STUB ASSEMBLY
(COUPLING END-FEMALE YOKE)STUB ASSEMBLY
(COUPLING END-FEMALE YOKE) -
2957749A1 YOKE ASSEMBLY
(COUPLING END-MALE YOKE)YOKE ASSEMBLY
(COUPLING END-MALE YOKE) -
3024-62727 SPRING
(COUPLING END-FEMALE YOKE)SPRING
(COUPLING END-FEMALE YOKE) -
3125-25439 O-RING, (.862 x .103)
(COUPLING END-MALE YOKE)O-RING, (.862 x .103)
(COUPLING END-MALE YOKE) -
3215-62833A1 SHIM SETSHIM SET
-
3331-38356A1 BEARING SET, Universal JointBEARING SET, Universal Joint
-
3423-62789 SPACERSPACER
-
3543-62878 GEAR, Pinion (2:1 Ratio)GEAR, Pinion (2:1 Ratio)
-
3631-8M0103475 BEARING ASSEMBLY, Tapered Roller, Pinion GearBEARING ASSEMBLY, Tapered Roller, Pinion Gear
-
3712-62786 WASHER, ThrustWASHER, Thrust
-
3815-55499A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
3912-48912 WASHERWASHER
-
4011-82671327 NUT (1.00-14)NUT (1.00-14)
-
4125-39695 O-RINGO-RING
-
4262785T COVERCOVER
-
4310-35047 SCREW, (.375-16 x 1.250) Stainless SteelSCREW, (.375-16 x 1.250) Stainless Steel
-
4437-14489A90 DECAL SETDECAL SET
-
-1571-8945A2 REBUILD KITREBUILD KIT
