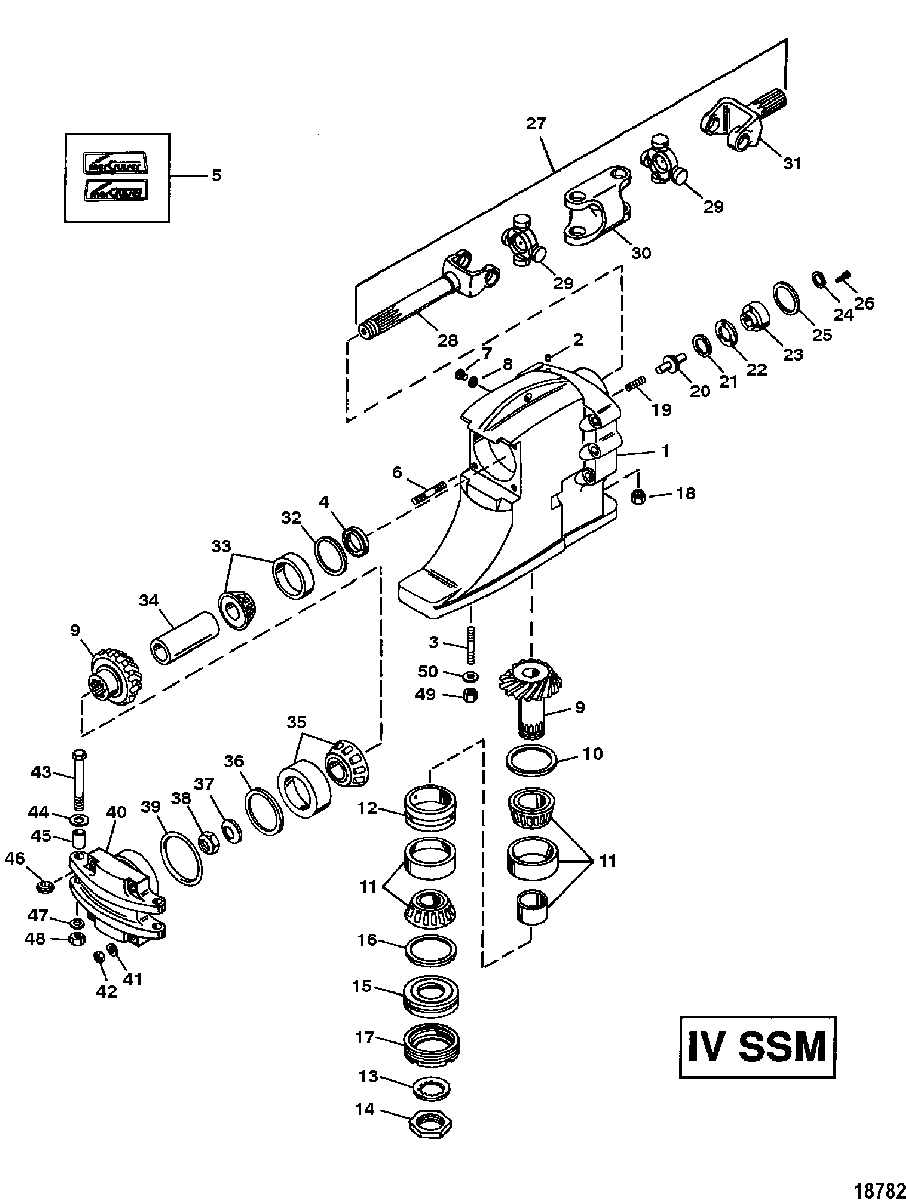

DRIVESHAFT HOUSING AND GEAR ASSEMBLY(IV SSM) для Mercruiser - ALPHA ONE SS 1986-1989 ALL THRU none

  • №
    Артикул
    Название
  • 1
    3509-812421A2 HOUSING ASSEMBLY, Driveshaft
    HOUSING ASSEMBLY, Driveshaft
  • 2
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 3
    16-57985 STUD (2.810)
    STUD (2.810)
  • 4
    26-38105 SEAL, Oil
    SEAL, Oil
  • 5
    37-14489A90 DECAL SET
    DECAL SET
  • 6
    16-13208 STUD
    STUD
  • 7
    22-8M0058389 SCREW, (.735-16), Vent (.375-16) (Magnetic)
    SCREW, (.735-16), Vent (.375-16) (Magnetic)
  • 8
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 9
    43-813803A3 GEAR SET (Pinion and Drive)
    (1.00:1 RATIO)
    GEAR SET (Pinion and Drive)
    (1.00:1 RATIO)
  • 9
    43-813804A3 GEAR SET (Pinion and Drive)
    (1.18:1 RATIO)
    GEAR SET (Pinion and Drive)
    (1.18:1 RATIO)
  • 9
    43-813806A3 GEAR SET (Pinion and Drive)
    (1.25:1 RATIO)
    GEAR SET (Pinion and Drive)
    (1.25:1 RATIO)
  • 9
    43-813802A3 GEAR SET (Pinion and Drive)
    (1.33:1 RATIO)
    GEAR SET (Pinion and Drive)
    (1.33:1 RATIO)
  • 9
    43-813807A3 GEAR SET (Pinion and Drive)
    (1.40:1 RATIO)
    GEAR SET (Pinion and Drive)
    (1.40:1 RATIO)
  • 9
    43-813805A3 GEAR SET (Pinion and Drive)
    (1.50:1 RATIO)
    GEAR SET (Pinion and Drive)
    (1.50:1 RATIO)
  • 10
    15-34800A1 SHIM SET
    SHIM SET
  • 11
    31-34804T4 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 12
    23-47285 SPACER
    SPACER
  • 13
    12-47451 WASHER
    WASHER
  • 14
    11-47449 NUT (Special)
    NUT (Special)
  • 15
    473031 ADAPTOR
    ADAPTOR
  • 16
    12-47289 WASHER
    WASHER
  • 17
    47304 RETAINER
    RETAINER
  • 18
    11-47302 NUT, (.562-18) Stainless Steel
    NUT, (.562-18) Stainless Steel
  • 19
    24-48442 SPRING
    SPRING
  • 20
    20-48219 CHECK VALVE
    CHECK VALVE
  • 21
    25-48452 QUAD RING
    QUAD RING
  • 22
    27-669251 GASKET
    GASKET
  • 23
    12701A1 VALVE GUIDE ASSEMBLY
    VALVE GUIDE ASSEMBLY
  • 24
    26-66301 SEAL, Oil
    SEAL, Oil
  • 25
    25-33145 O-RING, (1.984 x .139)
    O-RING, (1.984 x .139)
  • 26
    10-56786 SCREW, (#8-32 x .750)
    SCREW, (#8-32 x .750)
  • 27
    44253T1 UNIVERSAL JOINT ASSEMBLY
    UNIVERSAL JOINT ASSEMBLY
  • 28
    44271 YOKE (Driven End)
    YOKE (Driven End)
  • 29
    8M0085593 CROSS AND BEARING ASSEMBLY
    CROSS AND BEARING ASSEMBLY
  • 30
    63575T SOCKET
    SOCKET
  • 31
    44253 YOKE (Driving End)
    YOKE (Driving End)
  • 32
    15-36178A02 SHIM SET
    SHIM SET
  • 33
    31-39908T1 BEARING ASSEBMLY, Tapered Roller
    BEARING ASSEBMLY, Tapered Roller
  • 34
    23-8M0050924 SPACER
    SPACER
  • 35
    31-34804T3 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 36
    15-34822A1 SHIM SET
    SHIM SET
  • 37
    12-53212 WASHER
    WASHER
  • 38
    11-82671327 NUT (1.00-14)
    NUT (1.00-14)
  • 39
    25-47291 O-RING
    O-RING
  • 40
    12702T COVER (Rear)
    COVER (Rear)
  • 41
    12-540121 WASHER, (.530 x .880 x .104) 630 Stainless Steel
    WASHER, (.530 x .880 x .104) 630 Stainless Steel
  • 42
    11-35000 NUT, (.500-20)
    NUT, (.500-20)
  • 43
    10-677551 SCREW, (.500-20 x 4.500)
    SCREW, (.500-20 x 4.500)
  • 44
    12-540121 WASHER, (.530 x .880 x .104) 630 Stainless Steel
    WASHER, (.530 x .880 x .104) 630 Stainless Steel
  • 45
    23-85322 SPACER
    SPACER
  • 46
    23-840229 SPACER
    SPACER
  • 47
    12-24501 WASHER
    WASHER
  • 48
    11-35000 NUT, (.500-20)
    NUT, (.500-20)
  • 49
    11-47302 NUT, (.562-18) Stainless Steel
    NUT, (.562-18) Stainless Steel
  • 50
    12-180451 WASHER
    WASHER
  • -
    1567-8942A8 REBUILD KIT
    REBUILD KIT
