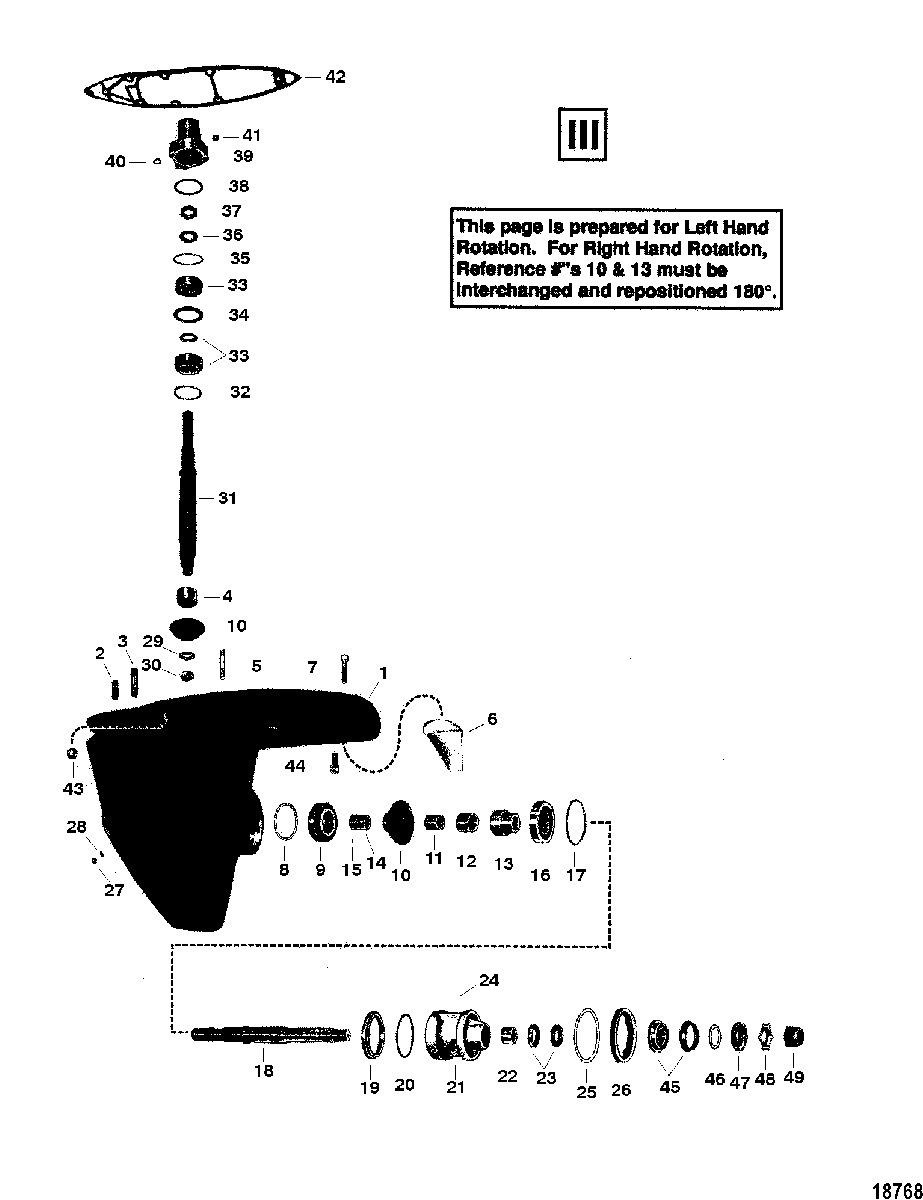

GEAR HOUSING ASSY(DRIVESHAFT & PROPSHAFT) (III) для Mercruiser - ALPHA ONE SS 1986-1989 ALL THRU none
-
№АртикулНазвание
-
11636-4354A3 GEAR HOUSING ASSEMBLY (BASIC)GEAR HOUSING ASSEMBLY (BASIC)
-
216-8M0041668 STUD, (.437-14/.437-20 x 1.875)STUD, (.437-14/.437-20 x 1.875)
-
316-57985 STUD (2.810)STUD (2.810)
-
431-35246 BEARING, RollerBEARING, Roller
-
516-57981 STUD (.375-16 x 3.00)STUD (.375-16 x 3.00)
-
697-31640Q4 TRIM TAB ASSEMBLYTRIM TAB ASSEMBLY
-
710-41350 SCREW, (.437-14 x 2.50) Stainless SteelSCREW, (.437-14 x 2.50) Stainless Steel
-
815-47295A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
931-47484A1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1043-53572A2 GEAR ASSEMBLY (Pinion and Drive)GEAR ASSEMBLY (Pinion and Drive)
-
1123-48016 SPACERSPACER
-
1223-48015 SPACERSPACER
-
1353516 ADAPTORADAPTOR
-
1423-48011 SLEEVESLEEVE
-
1517-53308 PIN, DowelPIN, Dowel
-
1631-47484A1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1715-47297A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
1844-53185A1 PROPELLER SHAFT ASSEMBLY (1.250-12)PROPELLER SHAFT ASSEMBLY (1.250-12)
-
1947307 RING, ThrustRING, Thrust
-
2025-47298 O-RINGO-RING
-
2152623A2 CARRIER ASSEMBLY, Bearing, BearingCARRIER ASSEMBLY, Bearing, Bearing
-
2231-47946 BEARING, RollerBEARING, Roller
-
2326-19473 SEAL, OilSEAL, Oil
-
2428-30281 KEYKEY
-
2514-52553 TAB WASHERTAB WASHER
-
2652622 COVERCOVER
-
2710-79953Q04 SCREW, (.375-16 x .250)SCREW, (.375-16 x .250)
-
2812-191833 WASHER, FiberWASHER, Fiber
-
2912-32073 WASHERWASHER
-
3011-858869 NUT, (.875-14)NUT, (.875-14)
-
3145-47323 DRIVESHAFTDRIVESHAFT
-
3215-39808A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
3331-47669A2 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
3423-47603 ELBOWELBOW
-
3515-39808A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
3612-56042 WASHERWASHER
-
3711-34826 NUT (1.250-16)NUT (1.250-16)
-
3825-20081 O-RING (Large)O-RING (Large)
-
3947315 RETAINERRETAINER
-
4025-45711 O-RING, (.612 x .103) (Small)O-RING, (.612 x .103) (Small)
-
4111-82671013 NUT, (.375-24)NUT, (.375-24)
-
4227-47317 GASKETGASKET
-
4311-47302 NUT, (.562-18) Stainless SteelNUT, (.562-18) Stainless Steel
-
4410-47557 SCREW, (.500-13 x 1.500)SCREW, (.500-13 x 1.500)
-
4548018A1 THRUST HUB AND WASHER ASSEMBLYTHRUST HUB AND WASHER ASSEMBLY
-
4612-37763 WASHER, ThrustWASHER, Thrust
-
4712-48014 WASHERWASHER
-
4814-48012 TAB WASHERTAB WASHER
-
4911-17844 NUT (1.250-12)NUT (1.250-12)
