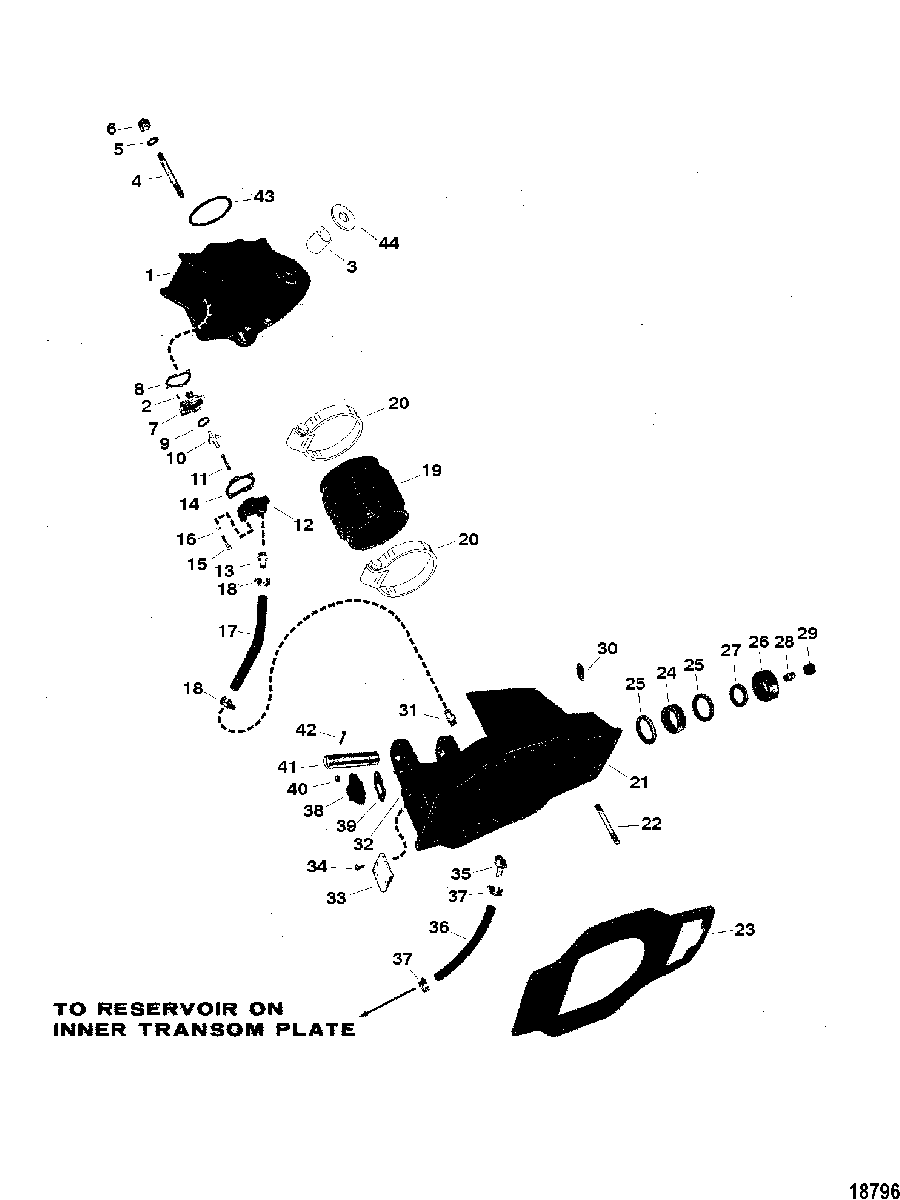

GIMBAL HOUSING AND BELL HOUSING(IIIA-V) (2ND DESIGN) для Mercruiser - ALPHA ONE SS 1986-1989 ALL THRU none
-
№АртикулНазвание
-
1814452T6 BELL HOUSING ASSEMBLYBELL HOUSING ASSEMBLY
-
217-48450 PIN, DowelPIN, Dowel
-
323-814649 BUSHING, Hinge PinBUSHING, Hinge Pin
-
416-57987 STUD (.625-18 x 4.310)STUD (.625-18 x 4.310)
-
512-47428 WASHER, (.660 x 1.120 x .141) Stainless SteelWASHER, (.660 x 1.120 x .141) Stainless Steel
-
611-47379 NUT, (.625-18) Stainless SteelNUT, (.625-18) Stainless Steel
-
748124 GUIDE, ValveGUIDE, Valve
-
827-48363 GASKET, Valve GuideGASKET, Valve Guide
-
925-48452 QUAD RINGQUAD RING
-
1020-48219 CHECK VALVECHECK VALVE
-
1124-48442 SPRINGSPRING
-
1248163A1 COVER ASSEMBLY, Valve GuideCOVER ASSEMBLY, Valve Guide
-
1322-47841 FITTING, (.375-18 x .500 )FITTING, (.375-18 x .500 )
-
1427-48363 GASKET, Valve GuideGASKET, Valve Guide
-
1510-69067 SCREW, (.250-20 x 1.375)SCREW, (.250-20 x 1.375)
-
1613-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1732-48458 HOSEHOSE
-
1854-180761 CLAMP, Worm GearCLAMP, Worm Gear
-
1947370A1 BELLOWSBELLOWS
-
2054-815504388 CLAMP, Worm GearCLAMP, Worm Gear
-
21815228T19 HOUSING ASSEMBLY, GimbalHOUSING ASSEMBLY, Gimbal
-
2216-57988 STUD (.500 x 5.375)STUD (.500 x 5.375)
-
2327-47366T GASKET, Gimbal HousingGASKET, Gimbal Housing
-
2431-30457 BEARING (Lower)BEARING (Lower)
-
2526-31851 SEAL, OilSEAL, Oil
-
2631-21638 BEARING (Upper)BEARING (Upper)
-
2726-32121 SEAL, OilSEAL, Oil
-
2822-74036 FITTING, GreaseFITTING, Grease
-
2919-77633Q LUBRICAPLUBRICAP
-
3037-1368211 DECALDECAL
-
3122-47841 FITTING, (.375-18 x .500 )FITTING, (.375-18 x .500 )
-
3216-56766 STUD, (.250-20/.250-28 x 1.380)STUD, (.250-20/.250-28 x 1.380)
-
3334762A1 PLATE ASSEMBLYPLATE ASSEMBLY
-
3410-34763 SCREW, (#12-24 x .750)SCREW, (#12-24 x .750)
-
3522-38565 FITTING, (.375-18)FITTING, (.375-18)
-
3632-8M0062669 HOSE (20.500 In.)HOSE (20.500 In.)
-
3754-180761 CLAMP, Worm GearCLAMP, Worm Gear
-
3847347 CONNECTORCONNECTOR
-
3927-476441 GASKETGASKET
-
4011-35888 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
4117-814646 PIN, SwivelPIN, Swivel
-
4218-47381 COTTER PINCOTTER PIN
-
4325-31534 O-RINGO-RING
-
4412-814640 WASHER, Hinge PinWASHER, Hinge Pin
