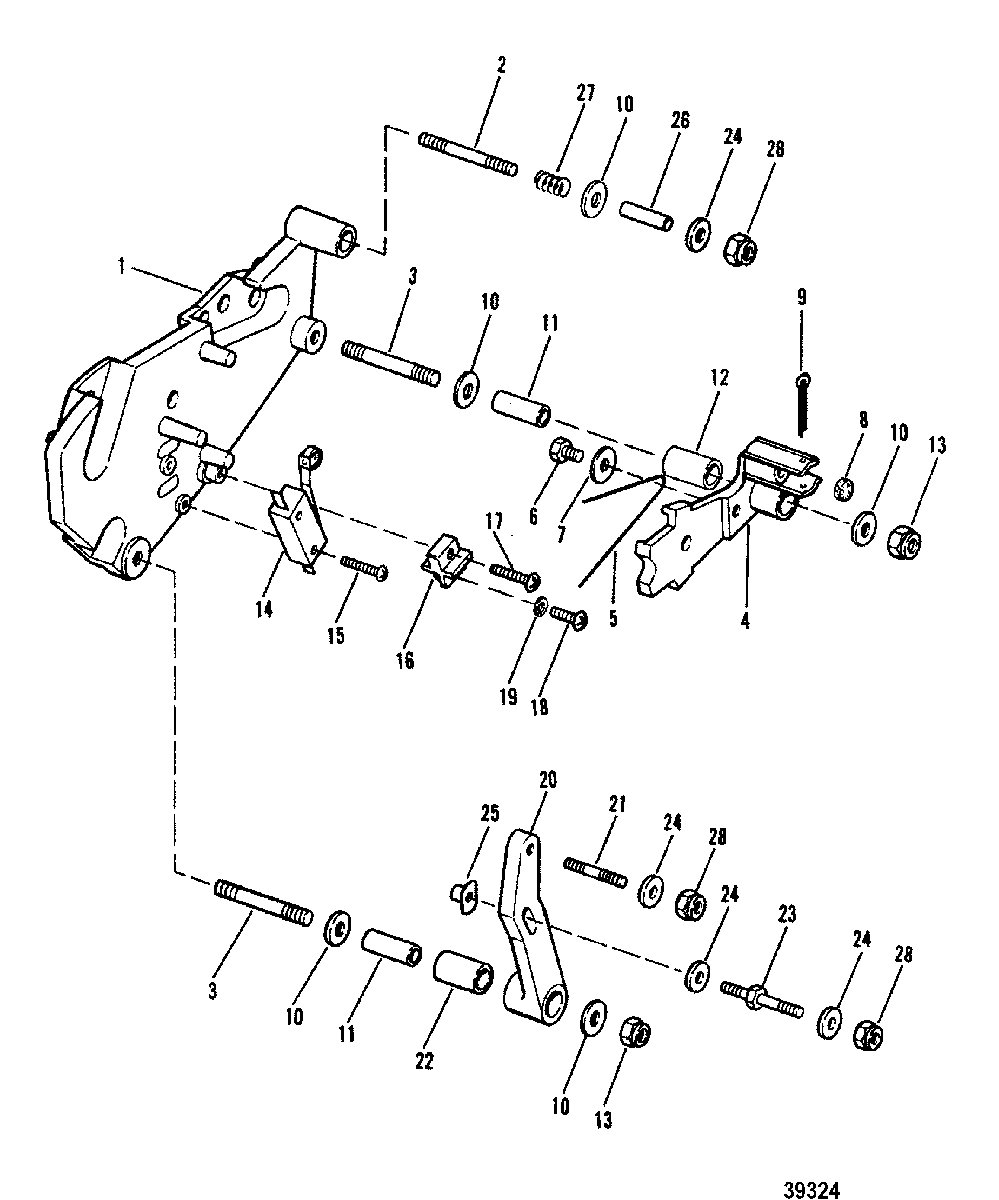

SHIFT BRACKET(OLD DESIGN) для Mercruiser - 200 (2 BBL.) GM 305 V-81 1985-1986 6218462 THRU 0B525981
-
№АртикулНазвание
-
1807962A15 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
216-865154A02 STUD, SHIFT CABLESTUD, SHIFT CABLE
-
316-96108 STUD, SHIFT BRACKETSTUD, SHIFT BRACKET
-
413051A4 ARM ASSEMBLY, ACTUATINGARM ASSEMBLY, ACTUATING
-
524-862850 SPRING, ACTUATING LEVERSPRING, ACTUATING LEVER
-
610-88743 SCREW, (.312-18 x .500), SPRING TO LEVERSCREW, (.312-18 x .500), SPRING TO LEVER
-
712-56720 WASHER, (.330 x .750 x .060) Stainless Steel, SPRING SCREWWASHER, (.330 x .750 x .060) Stainless Steel, SPRING SCREW
-
823-98828 SPACER, RUBBER PADSPACER, RUBBER PAD
-
918-328571 COTTER PIN, SHIFT CABLE RETAININGCOTTER PIN, SHIFT CABLE RETAINING
-
1012-56720 WASHER, (.330 x .750 x .060) Stainless Steel, SHIFT BRACKET STUDWASHER, (.330 x .750 x .060) Stainless Steel, SHIFT BRACKET STUD
-
1123-37981 SPACER, SHIFT BRACKET STUDSPACER, SHIFT BRACKET STUD
-
1223-45600 SLEEVE, ACTUATING LEVERSLEEVE, ACTUATING LEVER
-
1311-82670911 NUT, (.312-24) Stainless Steel, SHIFT BRACKET STUDNUT, (.312-24) Stainless Steel, SHIFT BRACKET STUD
-
1439670A28 SWITCH ASSEMBLY, CUT-OUTSWITCH ASSEMBLY, CUT-OUT
-
1510-30902 SCREW, (#6-32 x .750), SWITCH TO SHIFT BRACKETSCREW, (#6-32 x .750), SWITCH TO SHIFT BRACKET
-
1686-66986 TERMINAL BLOCKTERMINAL BLOCK
-
1710-96113 SCREW, (#10-32 x .880) Stainless Steel, TERMINAL BLOCKSCREW, (#10-32 x .880) Stainless Steel, TERMINAL BLOCK
-
1810-73287 SCREW, (#10-32 x .380), TERMINAL BLOCKSCREW, (#10-32 x .380), TERMINAL BLOCK
-
1913-26996 LOCKWASHER, (#10) Stainless Steel, TERMINAL BLOCK SCREWLOCKWASHER, (#10) Stainless Steel, TERMINAL BLOCK SCREW
-
2013898T06 LEVER ASSEMBLY, ShiftLEVER ASSEMBLY, Shift
-
2116-98851 STUD, SHIFT CABLESTUD, SHIFT CABLE
-
2223-45600 SLEEVE, SHIFT LEVERSLEEVE, SHIFT LEVER
-
2316-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor-SHIFT CABLESTUD, (.250-28 x 2.00), Throttle Cable Anchor-SHIFT CABLE
-
2412-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel, CHIFT CABLE STUDWASHER, (.2656 x .625 x .0625) Stainless Steel, CHIFT CABLE STUD
-
2511-63341 TEE NUT, SHIFT CABLE STUDTEE NUT, SHIFT CABLE STUD
-
2616-865154A02 SPACER, SHIFT CABLE STUDSPACER, SHIFT CABLE STUD
-
2724-98880 SPRING, SHIFT CABLE STUDSPRING, SHIFT CABLE STUD
-
2811-8267089 NUT, (.250-28), SHAFIT CABLE STUDNUT, (.250-28), SHAFIT CABLE STUD
