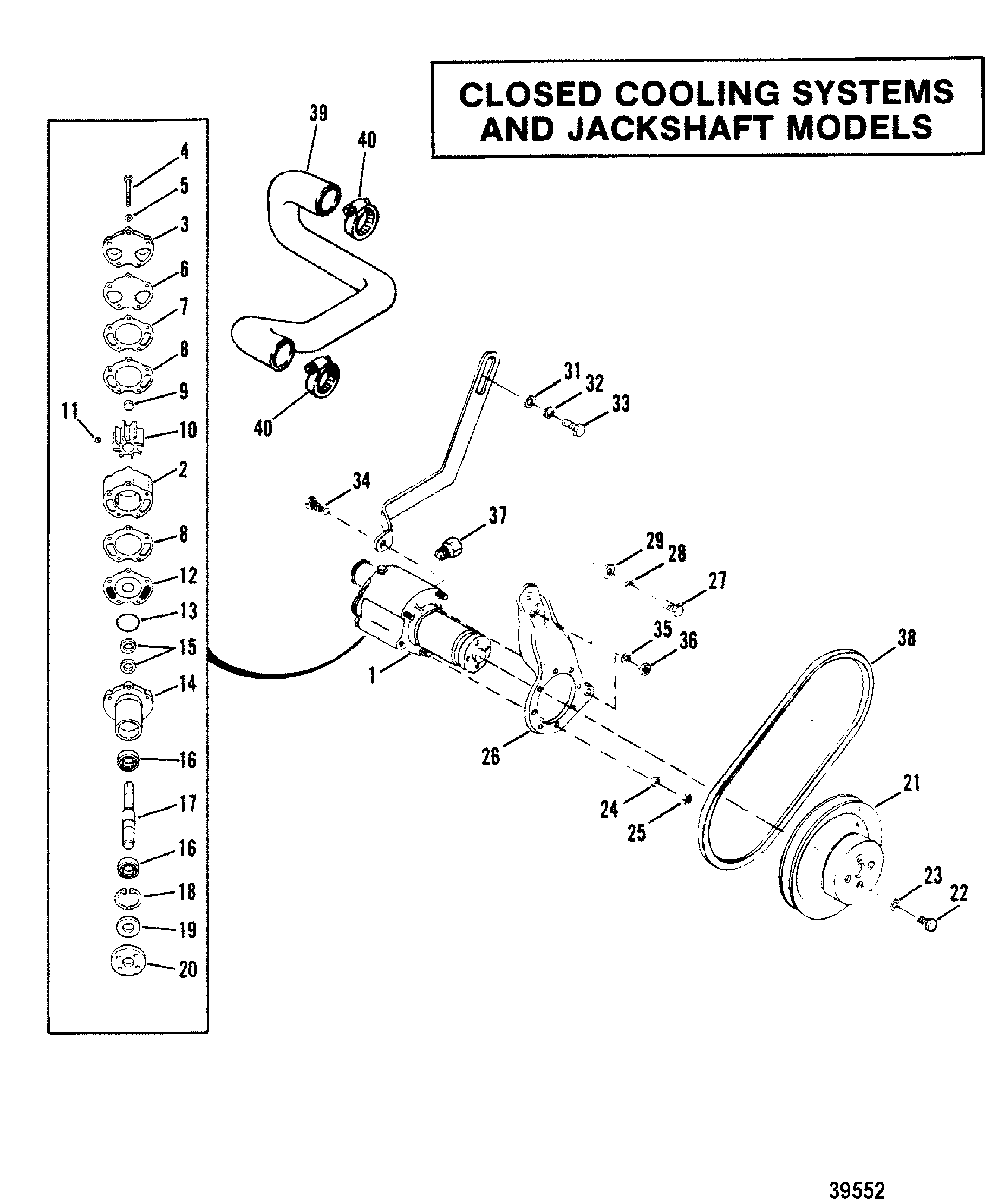

SEA WATER PUMP, CLOSED COOLING/JACKSHAFT MODELS для Mercruiser - 200 (2 BBL.) GM 305 V-81 1985-1986 6218462 THRU 0B525981

  • №
    Артикул
    Название
  • 1
    46-72774A32 PUMP ASSEMBLY, Sea Water - Complete
    PUMP ASSEMBLY, Sea Water - Complete
  • 2
    46-72774A40 BODY ASSEMBLY, Sea Water - Complete
    BODY ASSEMBLY, Sea Water - Complete
  • 3
    87631A4 COVER, WATER PUMP
    COVER, WATER PUMP
  • 4
    10-73275 SCREW, (.312-18 x 2.88), WATER PUMP
    SCREW, (.312-18 x 2.88), WATER PUMP
  • 4
    10-52743 SCREW, (.312-18 x 3.750), WATER PUMP
    SCREW, (.312-18 x 3.750), WATER PUMP
  • 5
    12-20084 WASHER, (.328 x .562 x .062), COVER SCREW
    WASHER, (.328 x .562 x .062), COVER SCREW
  • 6
    27-8052151 GASKET, COVER TO OUTER WEAR PLATE
    GASKET, COVER TO OUTER WEAR PLATE
  • 7
    94916 WEAR PLATE, OUTER
    WEAR PLATE, OUTER
  • 8
    27-94914 GASKET, BODY TO WEAR PLATE
    GASKET, BODY TO WEAR PLATE
  • 9
    19-59504 PLUG, IMPELLER
    PLUG, IMPELLER
  • 10
    47-59362T1 IMPELLER
    IMPELLER
  • 11
    28-8M0032837 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 12
    94576 WEAR PLATE, INNER
    WEAR PLATE, INNER
  • 13
    25-94288 QUAD RING, PUMP HOUSING
    QUAD RING, PUMP HOUSING
  • 14
    46-94913A1 HOUSING ASSEMBLY, Water Pump
    HOUSING ASSEMBLY, Water Pump
  • 15
    26-90562 SEAL, (1.254 x .312), WATER PUMP SHAFT
    SEAL, (1.254 x .312), WATER PUMP SHAFT
  • 16
    30-72961 BEARING, Ball, WATER PUMP SHAFT
    BEARING, Ball, WATER PUMP SHAFT
  • 17
    59501A1 SHAFT, WATER PUMP
    SHAFT, WATER PUMP
  • 18
    53-23720 RING, Retaining, BALL BEARING
    RING, Retaining, BALL BEARING
  • 19
    26-72785 SEAL, WATER PUMP SHAFT
    SEAL, WATER PUMP SHAFT
  • 20
    47530 HUB, WATER PUMP PULLEY
    HUB, WATER PUMP PULLEY
  • 21
    73798A1 PULLEY, WATER PUMP
    PULLEY, WATER PUMP
  • 22
    10-47277 SCREW, (.312-24 x .750), PULLEY
    SCREW, (.312-24 x .750), PULLEY
  • 23
    13-39107 LOCKWASHER, (.312-24), PULLEY SCREW
    LOCKWASHER, (.312-24), PULLEY SCREW
  • 24
    13-39107 LOCKWASHER, (.312-24), WATER PUMP SCREW
    LOCKWASHER, (.312-24), WATER PUMP SCREW
  • 25
    11-21908 NUT, (.312-18) Cad Plated, WATER PUMP SCREW
    NUT, (.312-18) Cad Plated, WATER PUMP SCREW
  • 26
    89535T BRACKET, WATER PUMP
    BRACKET, WATER PUMP
  • 27
    10-34353 SCREW, (.375-16 x 1.00), WATER PUMP BRACKET
    SCREW, (.375-16 x 1.00), WATER PUMP BRACKET
  • 28
    13-35048 LOCKWASHER, (.375), WATER PUMP BRACKET SCREW
    LOCKWASHER, (.375), WATER PUMP BRACKET SCREW
  • 29
    12-34714 WASHER, WATER PUMP BRACKET SCREW
    WASHER, WATER PUMP BRACKET SCREW
  • 30
    89609 BRACE, WATER PUMP ADJUSTING
    BRACE, WATER PUMP ADJUSTING
  • 31
    10-26487 SCREW, (.375-16 x 1.12), ADJUSTING BRACE
    SCREW, (.375-16 x 1.12), ADJUSTING BRACE
  • 32
    13-35048 LOCKWASHER, (.375), ADJUSTING BRACE SCREW
    LOCKWASHER, (.375), ADJUSTING BRACE SCREW
  • 33
    12-34714 WASHER, ADJUSTING BRACE SCREW
    WASHER, ADJUSTING BRACE SCREW
  • 34
    25-35789 SCREW, ADJUSTING BRACE (1")
    SCREW, ADJUSTING BRACE (1")
  • 35
    13-35048 LOCKWASHER, (.375), ADJUSTING BRACE SCREW
    LOCKWASHER, (.375), ADJUSTING BRACE SCREW
  • 36
    11-46335 NUT, ADJUSTING BRACE SCREW
    NUT, ADJUSTING BRACE SCREW
  • 37
    22-328022 PLUG, Pipe (.125-27) (FOR WATER PUMP BODY)
    PLUG, Pipe (.125-27) (FOR WATER PUMP BODY)
  • 38
    57-74271Q BELT, WATER PUMP (35")
    BELT, WATER PUMP (35")
  • 39
    32-88795 HOSE, SEA WATER PUMP TO OIL COOLER
    HOSE, SEA WATER PUMP TO OIL COOLER
  • 40
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
