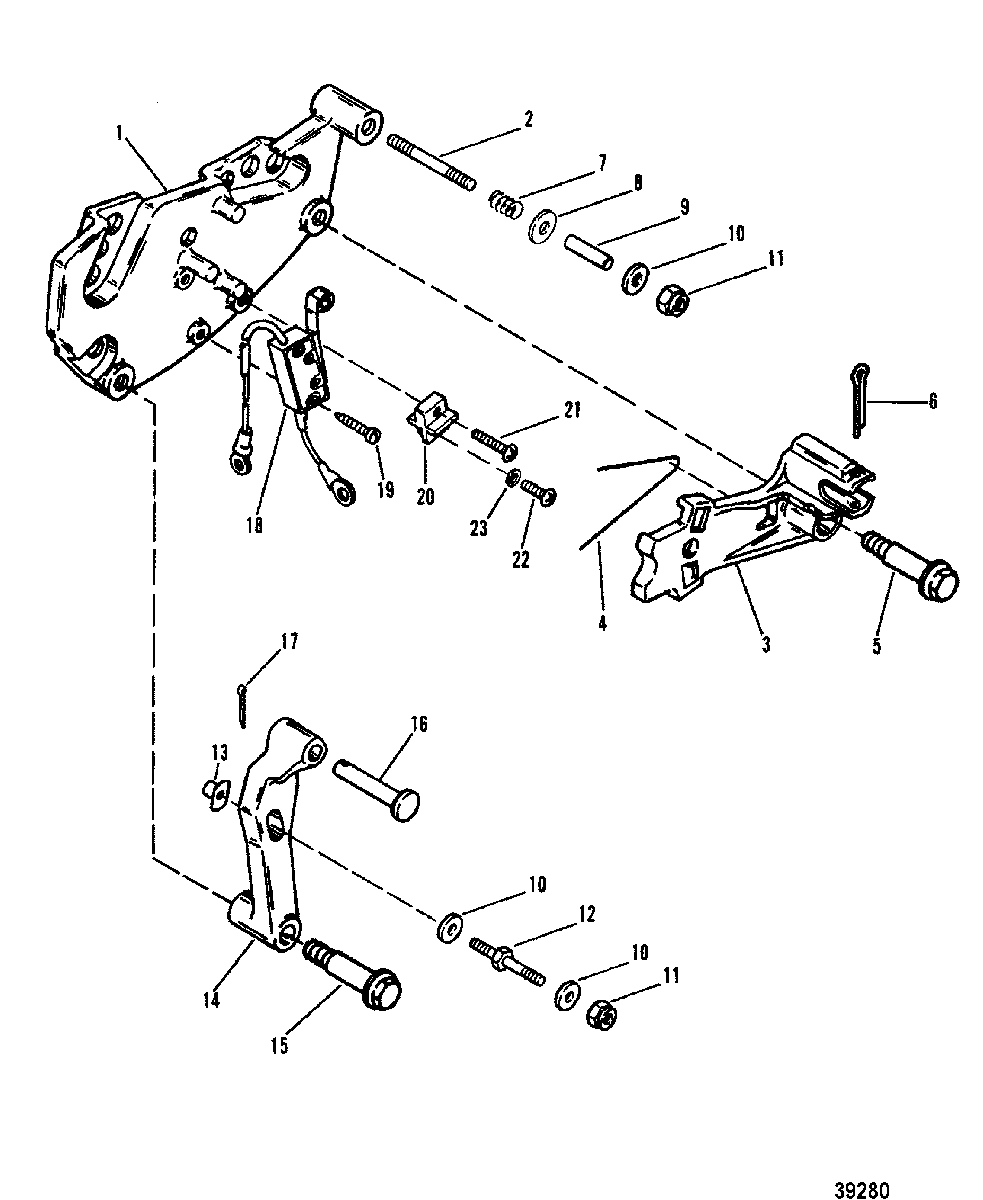

SHIFT BRACKET(NEW DESIGN) для Mercruiser - 200 (2 BBL.) GM 305 V-81 1985-1986 6218462 THRU 0B525981
-
№АртикулНазвание
-
1807962A15 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
216-865154A02 STUD, SHIFT CABLESTUD, SHIFT CABLE
-
313051A4 LEVER ASSEMBLY, ActuatingLEVER ASSEMBLY, Actuating
-
424-862850 SPRING, ACTUATING LEVERSPRING, ACTUATING LEVER
-
510-865148 SCREW, (.312-18 x 1.843), Shoulder - LEVERSCREW, (.312-18 x 1.843), Shoulder - LEVER
-
618-328571 COTTER PIN, SHIFT CABLE RETAININGCOTTER PIN, SHIFT CABLE RETAINING
-
724-98880 SPRING, SHIFT CABLE STUDSPRING, SHIFT CABLE STUD
-
812-56720 WASHER, (.330 x .750 x .060) Stainless Steel, SHIFT BRACKET STUDWASHER, (.330 x .750 x .060) Stainless Steel, SHIFT BRACKET STUD
-
916-865154A02 SPACER, SHIFT CABLE STUDSPACER, SHIFT CABLE STUD
-
1012-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel, SHIFT CABLE STUDWASHER, (.2656 x .625 x .0625) Stainless Steel, SHIFT CABLE STUD
-
1111-8267119 NUT, (.250-28), SHIFT CABLE STUDNUT, (.250-28), SHIFT CABLE STUD
-
1216-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor-SHIFT CABLESTUD, (.250-28 x 2.00), Throttle Cable Anchor-SHIFT CABLE
-
1311-63341 TEE NUT, SHIFT CABLE STUDTEE NUT, SHIFT CABLE STUD
-
1413898T06 LEVER ASSEMBLY, ShiftLEVER ASSEMBLY, Shift
-
1510-865148 SCREW, (.312-18 x 1.843), Shoulder - SHIFT LEVERSCREW, (.312-18 x 1.843), Shoulder - SHIFT LEVER
-
1617-68402 PIN, (.250 x 1.13), SHIFT LEVERPIN, (.250 x 1.13), SHIFT LEVER
-
1718-210711 COTTER PIN, SHIFT LEVERCOTTER PIN, SHIFT LEVER
-
1839670A28 SWITCH ASSEMBLY, CUT-OUTSWITCH ASSEMBLY, CUT-OUT
-
1910-30902 SCREW, (#6-32 x .750), SWITCH TO SHIFT BRACKETSCREW, (#6-32 x .750), SWITCH TO SHIFT BRACKET
-
2086-66986 TERMINAL BLOCKTERMINAL BLOCK
-
2110-96113 SCREW, (#10-32 x .880) Stainless Steel, TERMINAL BLOCKSCREW, (#10-32 x .880) Stainless Steel, TERMINAL BLOCK
-
2210-73287 SCREW, (#10-32 x .380), TERMINAL BLOCKSCREW, (#10-32 x .380), TERMINAL BLOCK
-
2313-26996 LOCKWASHER, (#10) Stainless Steel, TERMINAL BLOCK SCREWLOCKWASHER, (#10) Stainless Steel, TERMINAL BLOCK SCREW
