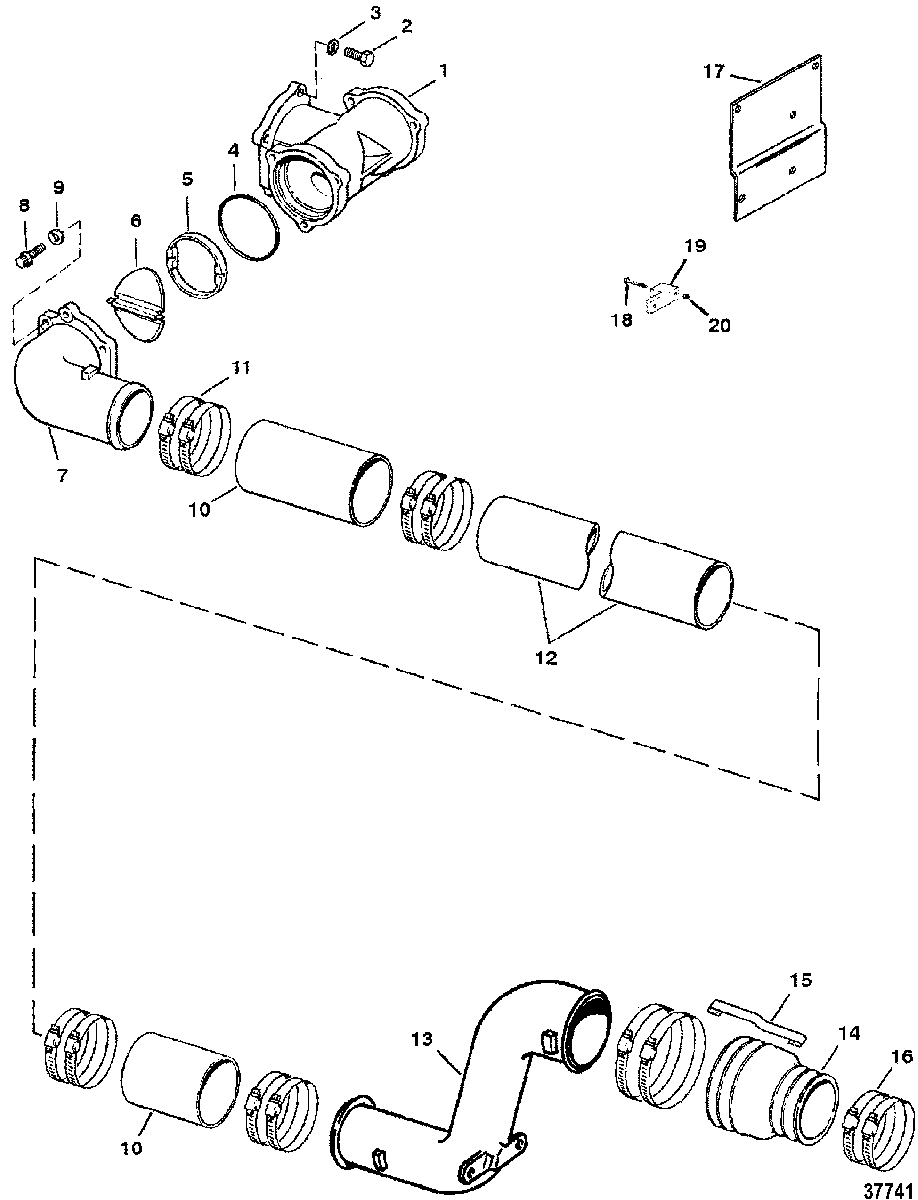

DRIVESHAFT EXTENSION COMPONENTS(JACKSHAFT MODELS) для Mercruiser - 200 (2 BBL.) GM 305 V-81 1985-1986 6218462 THRU 0B525981

  • №
    Артикул
    Название
  • 1
    98626A3 SEPARATOR
    SEPARATOR
  • 2
    10-37612 SCREW, (.375-16 x 1.250), EXHAUST SEPARATOR
    SCREW, (.375-16 x 1.250), EXHAUST SEPARATOR
  • 3
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 4
    25-35029 O-RING
    O-RING
  • 5
    60931 RETAINER, WATER SHUTTER
    RETAINER, WATER SHUTTER
  • 6
    60930 SHUTTER, Water
    SHUTTER, Water
  • 7
    94018A1 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 8
    10-8M0113174 SCREW, (.375-16 x 1.25), EXHAUST ELBOW TO SEPARATOR
    SCREW, (.375-16 x 1.25), EXHAUST ELBOW TO SEPARATOR
  • 9
    13-58643 LOCKWASHER, (.375), EXHAUST ELBOW SCREW
    LOCKWASHER, (.375), EXHAUST ELBOW SCREW
  • 10
    32-486594 HOSE, EXHASUT
    HOSE, EXHASUT
  • 11
    54-815504456 CLAMP, EXHAUST HOSE
    CLAMP, EXHAUST HOSE
  • 12
    94608A1 TUBE ASSEMBLY, Exhaust
    TUBE ASSEMBLY, Exhaust
  • 13
    98630A1 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 14
    70981A3 BELLOWS ASSEMBLY
    BELLOWS ASSEMBLY
  • 15
    95740 STRAP, Ground, EXHAUST BELLOWS
    STRAP, Ground, EXHAUST BELLOWS
  • 16
    54-815504372 CLAMP, EXHAUST BELLOWS
    CLAMP, EXHAUST BELLOWS
  • 17
    41063A1 BRACKET ASSEMBLY, MOUNTING
    BRACKET ASSEMBLY, MOUNTING
  • 18
    10-24231 SCREW, (#10-32 x .250), BRACKET
    SCREW, (#10-32 x .250), BRACKET
  • 19
    11-46438 NUT, (#10-32), BRACKET SCREW
    NUT, (#10-32), BRACKET SCREW
  • 20
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
