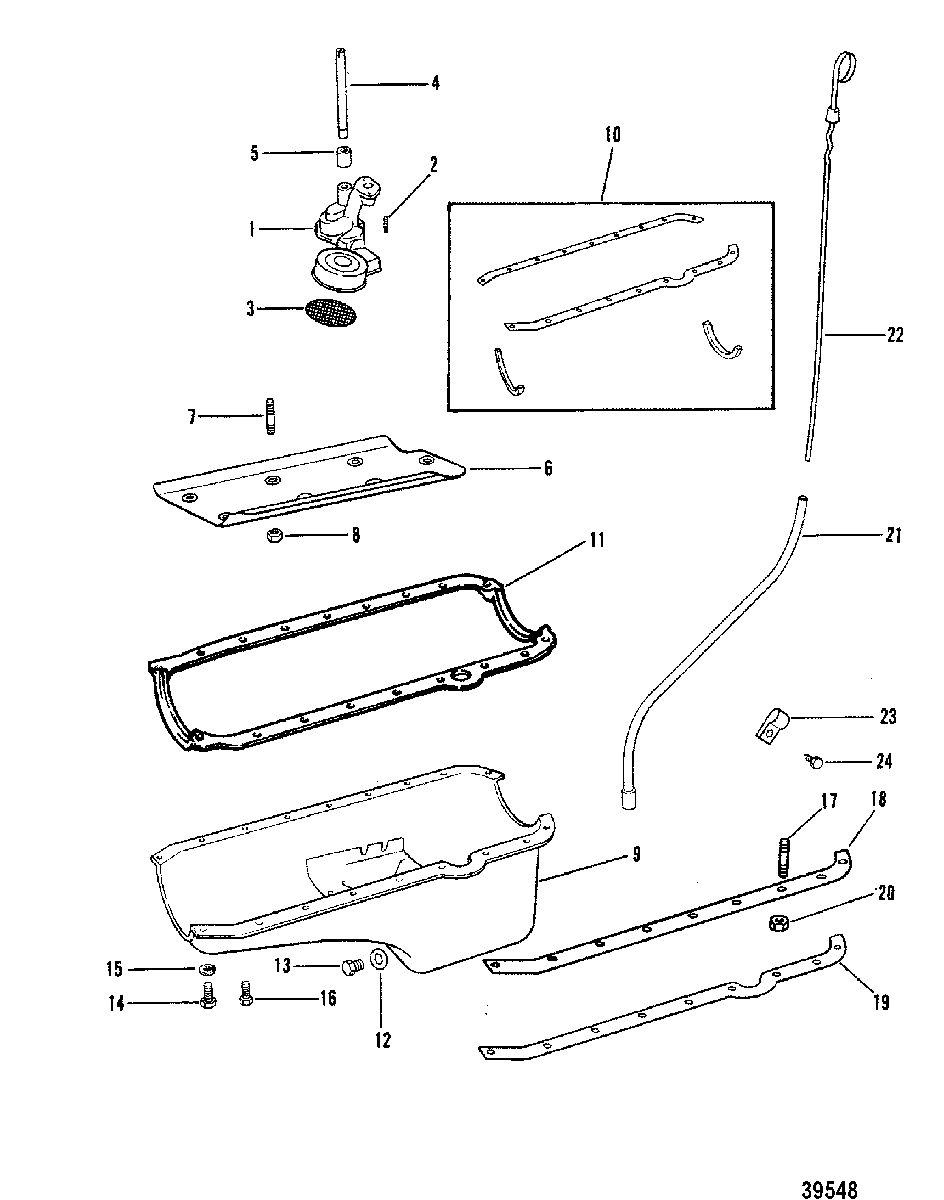

OIL PAN AND OIL PUMP для Mercruiser - 200 (2 BBL.) GM 305 V-81 1985-1986 6218462 THRU 0B525981

  • №
    Артикул
    Название
  • 1
    17617 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 2
    N.S.S. Not Sold Separate, BOLT, OIL PUMP TO CYLINDER BLOCK (2") (GM #3892678)
    Not Sold Separate, BOLT, OIL PUMP TO CYLINDER BLOCK (2") (GM #3892678)
  • 3
    35354 SCREEN ASSEMBLY, OIL PUMP (228-230)
    (228/230/260)
    SCREEN ASSEMBLY, OIL PUMP (228-230)
    (228/230/260)
  • 3
    72645 SCREEN ASSEMBLY, OIL PUMP
    (898/200)
    SCREEN ASSEMBLY, OIL PUMP
    (898/200)
  • 4
    36184 SHAFT, OIL PUMP TO DISTRIBUTOR
    SHAFT, OIL PUMP TO DISTRIBUTOR
  • 5
    23-36183 RETAINER, OIL PUMP SHAFT
    RETAINER, OIL PUMP SHAFT
  • 6
    986021 BAFFLE, OIL PAN
    (228/230/260)
    BAFFLE, OIL PAN
    (228/230/260)
  • 7
    16-54790 STUD, OIL PAN BAFFLE
    (228/230/260)
    STUD, OIL PAN BAFFLE
    (228/230/260)
  • 8
    11-37500 NUT, OIL PAN BAFFLE STUD
    (228/230/260)
    NUT, OIL PAN BAFFLE STUD
    (228/230/260)
  • 9
    93476 PAN, Oil
    (228/230/260)
    PAN, Oil
    (228/230/260)
  • 9
    94130 PAN, Oil
    (898/200)
    PAN, Oil
    (898/200)
  • 9
    809910 PAN, Oil
    (228/230/260)
    PAN, Oil
    (228/230/260)
  • 9
    14255 PAN, Oil
    (898/200)
    PAN, Oil
    (898/200)
  • 10
    27-90458A1 GASKET SET, OIL PAN
    GASKET SET, OIL PAN
  • 11
    27-138651 GASKET, OIL PAN
    NOT IMCLUDED WITH GASKET SET
    GASKET, OIL PAN
    NOT IMCLUDED WITH GASKET SET
  • 12
    27-8M0077608 GASKET, DRAIN SCREW
    GASKET, DRAIN SCREW
  • 13
    10-49956 SCREW, Drain, OIL PAN DRAIN
    SCREW, Drain, OIL PAN DRAIN
  • 14
    10-72644 SCREW, (5/16-18 x 7/8), OIL PAN (5/16-18 X 7/8")
    USE WITHOUT REINFORCEMENTS
    SCREW, (5/16-18 x 7/8), OIL PAN (5/16-18 X 7/8")
    USE WITHOUT REINFORCEMENTS
  • 15
    13-39107 LOCKWASHER, (.312-24), OIL PAN SCREW
    USE WITHOUT REINFORCEMENTS
    LOCKWASHER, (.312-24), OIL PAN SCREW
    USE WITHOUT REINFORCEMENTS
  • 16
    10-8M0040582 SCREW, (.250-20 x .563), OIL PAN
    USE WITHOUT REINFORCEMENTS
    SCREW, (.250-20 x .563), OIL PAN
    USE WITHOUT REINFORCEMENTS
  • 16
    10-14070 SCREW, (.250-20 x .625), OIL PAN
    USE WITH REINFORCEMENTS
    SCREW, (.250-20 x .625), OIL PAN
    USE WITH REINFORCEMENTS
  • 17
    16-11989 STUD, (.312-18 x 1.6718), OIL PAN
    USE WITH REINFORCEMENTS
    STUD, (.312-18 x 1.6718), OIL PAN
    USE WITH REINFORCEMENTS
  • 18
    13277 REINFORCEMENT, OIL PAN (PORT)
    USE WITH REINFORCEMENTS
    REINFORCEMENT, OIL PAN (PORT)
    USE WITH REINFORCEMENTS
  • 18
    14257 REINFORCEMENT, OIL PAN (PORT)
    USE WITH REINFORCEMENTS
    REINFORCEMENT, OIL PAN (PORT)
    USE WITH REINFORCEMENTS
  • 19
    13276 REINFORCEMENT, OIL PAN (STBD.)
    USE WITH REINFORCEMENTS
    REINFORCEMENT, OIL PAN (STBD.)
    USE WITH REINFORCEMENTS
  • 19
    14256 REINFORCEMENT, OIL PAN (STBD.)
    USE WITH REINFORCEMENTS
    REINFORCEMENT, OIL PAN (STBD.)
    USE WITH REINFORCEMENTS
  • 20
    11-11971 NUT, (.312-18), OIL PAN STUD
    USE WITH REINFORCEMENTS
    NUT, (.312-18), OIL PAN STUD
    USE WITH REINFORCEMENTS
  • 21
    92163A2 TUBE, OIL LEVEL GAUGE
    TUBE, OIL LEVEL GAUGE
  • 22
    96418A1 GAUGE, OIL LEVEL (DIPSTICK)
    (228/230/260)
    GAUGE, OIL LEVEL (DIPSTICK)
    (228/230/260)
  • 22
    96418A1 GAUGE, OIL LEVEL (DIPSTICK)
    (898/200)
    GAUGE, OIL LEVEL (DIPSTICK)
    (898/200)
  • 23
    54-92084 CLIP, OIL LEVEL TUBE
    CLIP, OIL LEVEL TUBE
  • 24
    10-98253 SCREW, (.250-20 x .500), CLIP TO CYLINDER BLOCK
    SCREW, (.250-20 x .500), CLIP TO CYLINDER BLOCK
  • -
    27-75611A86 GASKET SET
    GASKET SET
