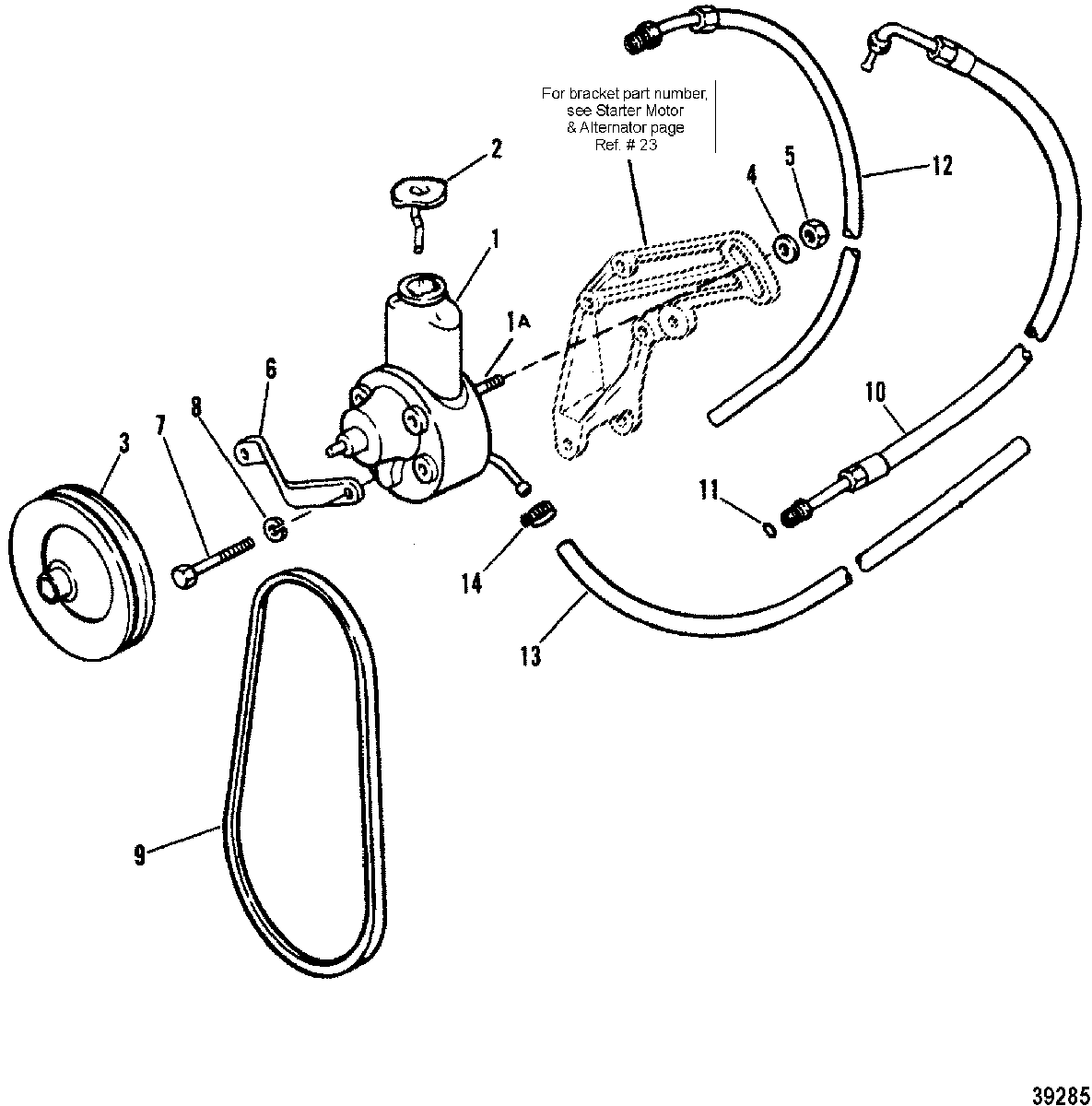

POWER STEERING COMPONENTS для Mercruiser - 200 (2 BBL.) GM 305 V-81 1985-1986 6218462 THRU 0B525981

  • №
    Артикул
    Название
  • 1
    16792A39 PUMP ASSEMBLY, POWER STEERING
    PUMP ASSEMBLY, POWER STEERING
  • 1A
    16-41877 STUD, (M10), POWER STEERING PUMP
    STUD, (M10), POWER STEERING PUMP
  • 2
    36-95805 CAP, PWER STEERING PUMP
    CAP, PWER STEERING PUMP
  • 3
    73873A1 PULLEY, POWER STEERING PUMP
    PULLEY, POWER STEERING PUMP
  • 4
    12-34567 WASHER, PUMP STUD (BRACE SLOT)
    WASHER, PUMP STUD (BRACE SLOT)
  • 5
    11-90517 NUT, (M10), MOUNTING STUD
    NUT, (M10), MOUNTING STUD
  • 6
    98644A1 BRACE, PUMP MOUNTING
    BRACE, PUMP MOUNTING
  • 7
    10-40001188 SCREW, (M10 x 20), PUMP MOUNTING BRACE
    SCREW, (M10 x 20), PUMP MOUNTING BRACE
  • 8
    13-400248 LOCKWASHER, (M10), BRACE SCREW
    LOCKWASHER, (M10), BRACE SCREW
  • 9
    57-37619Q V BELT, POWER STEERING PUMP (52")
    V BELT, POWER STEERING PUMP (52")
  • 10
    32-90494 HOSE, PRESSURE (FITTING ON BOTH ENDS)"
    HOSE, PRESSURE (FITTING ON BOTH ENDS)"
  • 10
    32-986291 HOSE, (136.00 Inches Bulk), PRESSURE (FITTINGS/BOTH ENDS)
    (JACKSHAFT MODELS)
    HOSE, (136.00 Inches Bulk), PRESSURE (FITTINGS/BOTH ENDS)
    (JACKSHAFT MODELS)
  • 11
    25-89879 O-RING, (.301 x .064), PRESSURE HOSE END
    O-RING, (.301 x .064), PRESSURE HOSE END
  • 12
    32-9884339 HOSE ASSEMBLY, (72.00 Inches Bulk), RETURN (FITTINGS ON ONE END)
    HOSE ASSEMBLY, (72.00 Inches Bulk), RETURN (FITTINGS ON ONE END)
  • 12
    32-986241 HOSE, (133.00 Inches Bulk), RETURN (FITTINGS ON ONE END)
    (JACKSHAFT MODELS)
    HOSE, (133.00 Inches Bulk), RETURN (FITTINGS ON ONE END)
    (JACKSHAFT MODELS)
  • 13
    32-8M0062341 HOSE, (53.00 Inches Bulk), PUMP TO OIL COOLER
    HOSE, (53.00 Inches Bulk), PUMP TO OIL COOLER
  • 14
    54-815504206 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
