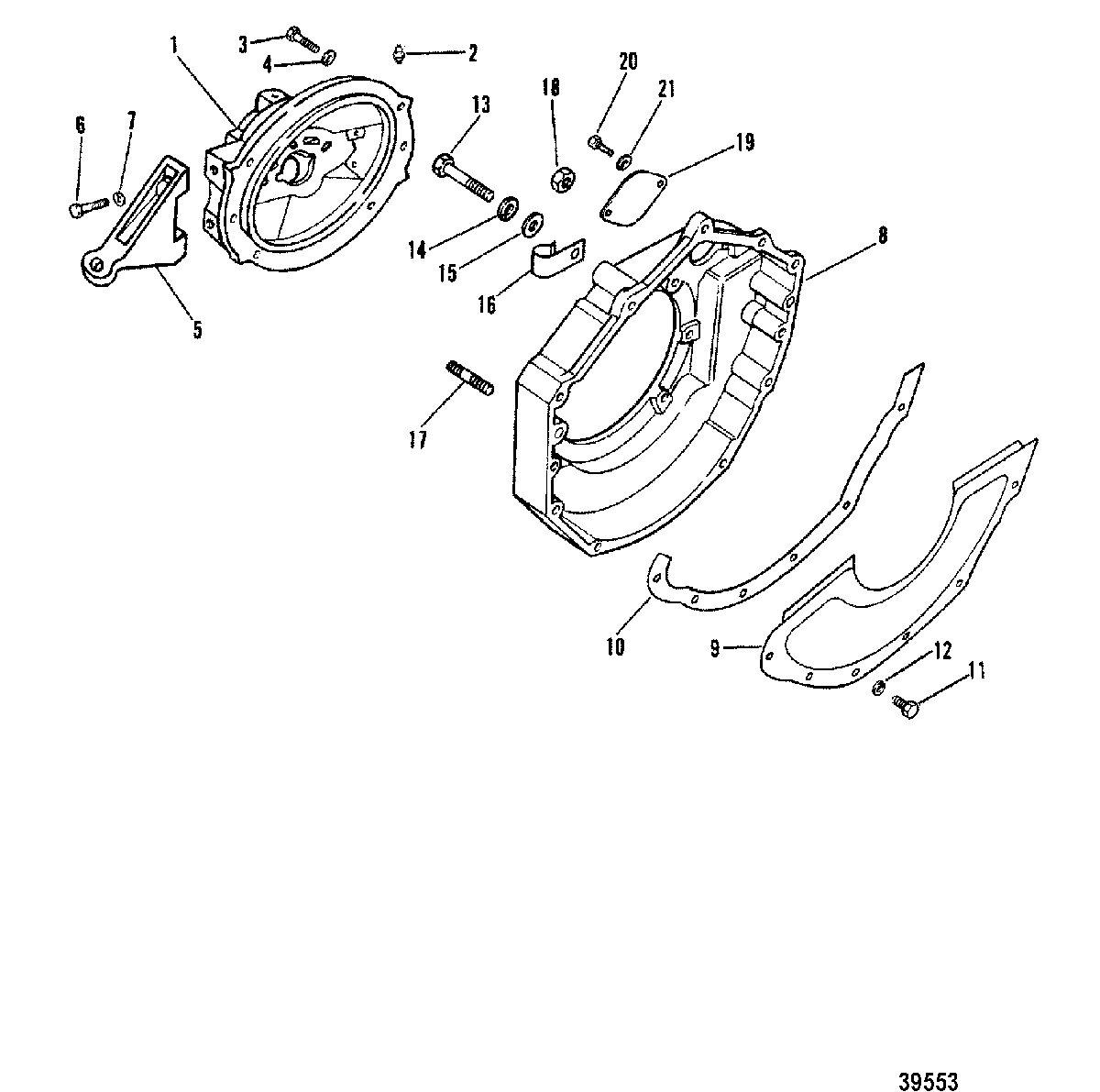

DRIVESHAFT EXTENSION COMPONENTS(JACKSHAFT MODLES) для Mercruiser - 200 (2 BBL.) GM 305 V-81 1985-1986 6218462 THRU 0B525981

№

Артикул

Название
1

93911A4 HOUSING ASSEMBLY, Shaft Extension Support

HOUSING ASSEMBLY, Shaft Extension Support
2

22-74036 FITTING, Grease

FITTING, Grease
3

10-47651 SCREW, (.437-14 x 1.50), HOUSING

SCREW, (.437-14 x 1.50), HOUSING
4

13-32993 LOCKWASHER, (.437), HOUSING SCREW

LOCKWASHER, (.437), HOUSING SCREW
5

93923A1 MOUNT ASSEMBLY, ENGINE

MOUNT ASSEMBLY, ENGINE
6

10-47651 SCREW, (.437-14 x 1.50), MOUNT

SCREW, (.437-14 x 1.50), MOUNT
7

13-32993 LOCKWASHER, (.437), MOUNT SCREW

LOCKWASHER, (.437), MOUNT SCREW
8

814309A1 HOUSING, FLYWHEEL

HOUSING, FLYWHEEL
9

93917A4 COVER ASSEMBLY, FLYWHEEL HOUSING

COVER ASSEMBLY, FLYWHEEL HOUSING
10

27-86015 GASKET, FLYWHEEL HOUSING COVER

GASKET, FLYWHEEL HOUSING COVER
11

10-98253 SCREW, (.250-20 x .500), COVER TO FLYWHEEL HOUSING

SCREW, (.250-20 x .500), COVER TO FLYWHEEL HOUSING
12

13-26992 LOCKWASHER, (.250) Stainless Steel, COVER SCREW

LOCKWASHER, (.250) Stainless Steel, COVER SCREW
13

10-37612 SCREW, (.375-16 x 1.250), FLYWHEEL HOUSING

SCREW, (.375-16 x 1.250), FLYWHEEL HOUSING
13

10-47688 SCREW, (.375-16 x 2.750), FLYWHEEL HOUSING

SCREW, (.375-16 x 2.750), FLYWHEEL HOUSING
14

13-35048 LOCKWASHER, (.375), FLYWHEEL HOUSING SCREW AND STUD

LOCKWASHER, (.375), FLYWHEEL HOUSING SCREW AND STUD
15

12-20572 WASHER, (.390 x .750 x .093) (FOR SLOT)

WASHER, (.390 x .750 x .093) (FOR SLOT)
16

54-92850 CLAMP, FLYWHEEL HOUSING SCREW

CLAMP, FLYWHEEL HOUSING SCREW
17

16-861316 STUD, (.375-16 x 2.750) Special, FLYWHEEL HOUSING

STUD, (.375-16 x 2.750) Special, FLYWHEEL HOUSING
18

11-32219 NUT, (.375-16), FLYWHEEL HOUSING STUD

NUT, (.375-16), FLYWHEEL HOUSING STUD
19

939201 PLATE, FLYWHEEL HOUSING

PLATE, FLYWHEEL HOUSING
20

10-92913 SCREW, PLATE

SCREW, PLATE
21

13-32993 LOCKWASHER, (.437), PLATE SCREW

LOCKWASHER, (.437), PLATE SCREW
