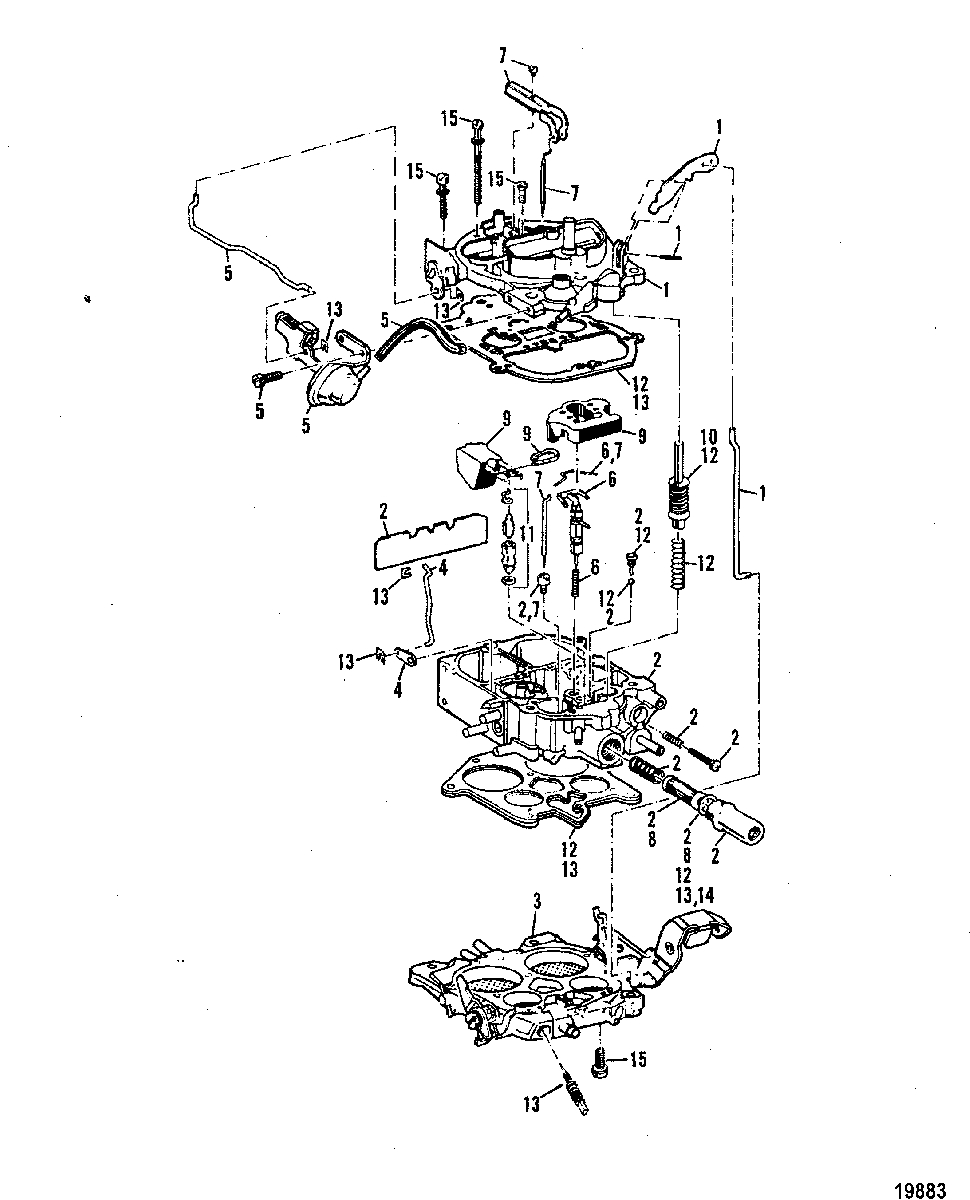

CARBURETOR(228-230-260) для Mercruiser - 200 (2 BBL.) GM 305 V-81 1985-1986 6218462 THRU 0B525981

  • №
    Артикул
    Название
  • -
    1347-804624R02 CARBURETOR ASSEMBLY
    (260)
    CARBURETOR ASSEMBLY
    (260)
  • -
    1347-804623R02 CARBURETOR ASSEMBLY
    (228/230)
    CARBURETOR ASSEMBLY
    (228/230)
  • 1
    1397-8752 AIR HORN KIT
    (260)
    AIR HORN KIT
    (260)
  • 1
    1397-8574 AIR HORN KIT
    (228/230)
    AIR HORN KIT
    (228/230)
  • 2
    1397-8753 FLOAT BOWL KIT
    (260)
    FLOAT BOWL KIT
    (260)
  • 2
    1397-8750 FLOAT BOWL KIT
    (228/230)
    FLOAT BOWL KIT
    (228/230)
  • 3
    1397-8540 THROTTLE BODY KIT
    THROTTLE BODY KIT
  • 4
    1397-8541 LINK/LEVER KIT, Choke
    LINK/LEVER KIT, Choke
  • 5
    1397-8582 PRIMARY VACUUM KIT
    PRIMARY VACUUM KIT
  • 6
    1397-8543T PISTON KIT
    PISTON KIT
  • 7
    1397-8583 METERING JET AND ROD KIT
    (260)
    METERING JET AND ROD KIT
    (260)
  • 7
    1397-8583 METERING JET AND ROD KIT
    (228/230)
    METERING JET AND ROD KIT
    (228/230)
  • 8
    1397-8767Q FILTER KIT, Fuel
    FILTER KIT, Fuel
  • 9
    1397-8546T FLOAT KIT
    FLOAT KIT
  • 10
    823426A1 PUMP KIT
    PUMP KIT
  • 11
    823426A1 NEEDLE/SEAT KIT
    NEEDLE/SEAT KIT
  • 12
    823426A1 REPAIR KIT, Carburetor
    Do not order flange gasket included in kit. Order 27-52457--1
    REPAIR KIT, Carburetor
    Do not order flange gasket included in kit. Order 27-52457--1
  • 13
    823426A1 GASKET KIT
    Do not order flange gasket included in kit. Order 27-52457--1
    GASKET KIT
    Do not order flange gasket included in kit. Order 27-52457--1
  • 14
    1397-8327 GASKET, INLET FILTER NUT
    GASKET, INLET FILTER NUT
  • 15
    1397-8557 SCREW KIT, AIR HORN/THROTTLE BODY
    SCREW KIT, AIR HORN/THROTTLE BODY
  • -
    27-524572 GASKET
    GASKET
