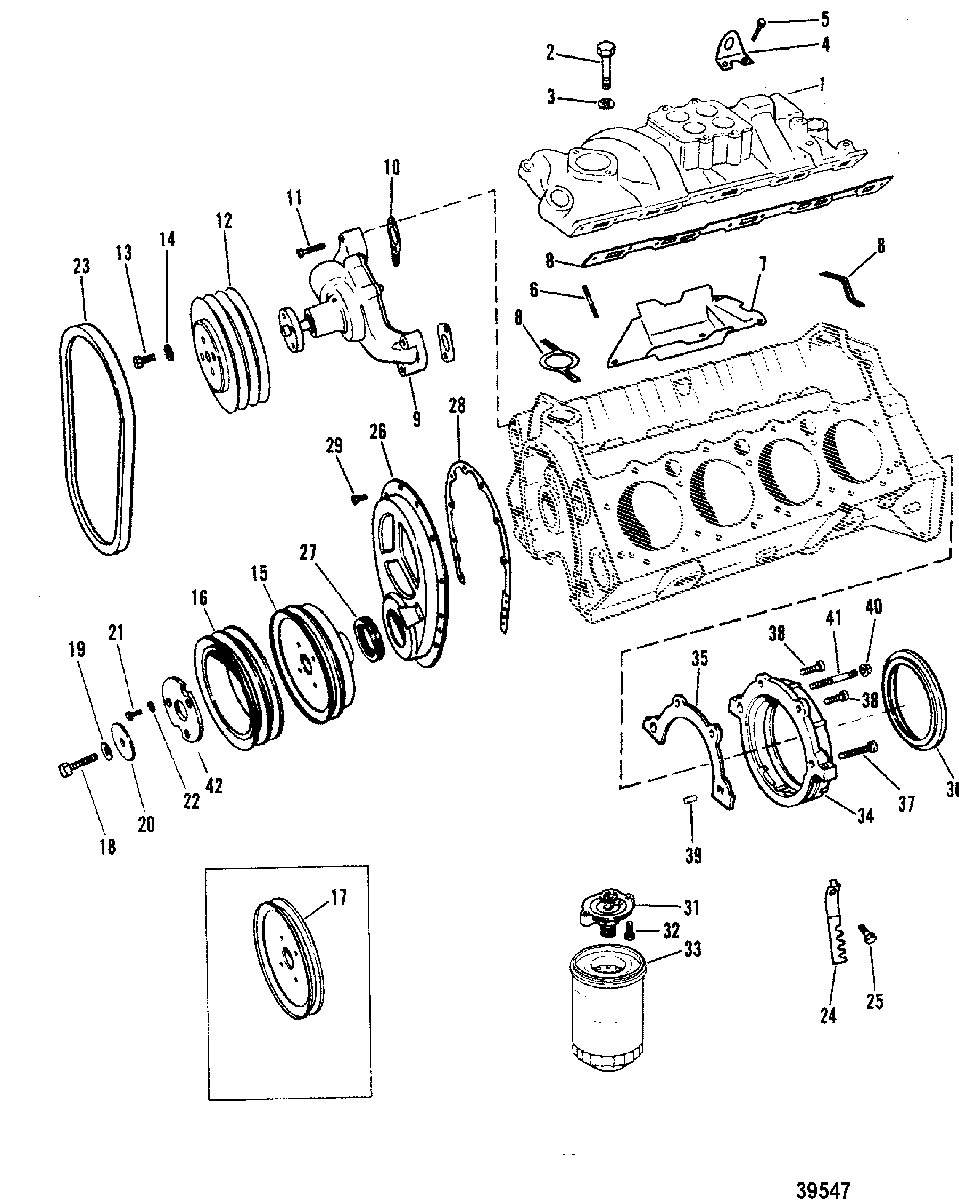

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 200 (2 BBL.) GM 305 V-81 1985-1986 6218462 THRU 0B525981

  • №
    Артикул
    Название
  • 1
    72646T MANIFOLD, Intake
    (228/230/260)
    MANIFOLD, Intake
    (228/230/260)
  • 1
    78779 MANIFOLD, Intake
    (898-200)
    MANIFOLD, Intake
    (898-200)
  • 2
    10-11976 SCREW, (.375-16 x 1.00), INTAKE MANIFOLD
    SCREW, (.375-16 x 1.00), INTAKE MANIFOLD
  • 2
    N.S.S. Not Sold Separate, BOLT, INTAKE MANIFOLD (GM #9439921)
    Not Sold Separate, BOLT, INTAKE MANIFOLD (GM #9439921)
  • 3
    12-49112 WASHER, INTAKE MANIFOLD BOLT
    WASHER, INTAKE MANIFOLD BOLT
  • 4
    54-47512 LIFTING EYE
    LIFTING EYE
  • 5
    10-34354 SCREW, (.375-16 x 1.50), LIFTING EYE
    (260)
    SCREW, (.375-16 x 1.50), LIFTING EYE
    (260)
  • 5
    10-34353 SCREW, (.375-16 x 1.00), LIFTING EYE
    (898/200/228/230)
    SCREW, (.375-16 x 1.00), LIFTING EYE
    (898/200/228/230)
  • 6
    N.S.S. Not Sold Separate, STUD, GUARD (GM #3959544)
    Not Sold Separate, STUD, GUARD (GM #3959544)
  • 7
    72647 GUARD, INTAKE MANIFOLD
    GUARD, INTAKE MANIFOLD
  • 8
    27-17145 GASKET SET, INTAKE MANIFOLD
    GASKET SET, INTAKE MANIFOLD
  • 9
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 10
    27-34897 GASKET, WATER PUMP MOUNTING
    GASKET, WATER PUMP MOUNTING
  • 11
    10-32132 SCREW, (.375-16 x 1.750), WATER PUMP TO CYLINDER BLOCK
    SCREW, (.375-16 x 1.750), WATER PUMP TO CYLINDER BLOCK
  • 11
    10-47688 SCREW, (.375-16 x 2.750), WATER PUMP TO CYLINDER BLOCK
    SCREW, (.375-16 x 2.750), WATER PUMP TO CYLINDER BLOCK
  • 11
    10-52200 SCREW, (1.625 In.), WATER PUMP TO CYLINDER BLOCK (1-1/2")
    SCREW, (1.625 In.), WATER PUMP TO CYLINDER BLOCK (1-1/2")
  • 12
    15120T PULLEY, WATER PUMP (3 GROOVE)
    PULLEY, WATER PUMP (3 GROOVE)
  • 13
    10-47277 SCREW, (.312-24 x .750), PULLEY TO WATER PUMP
    SCREW, (.312-24 x .750), PULLEY TO WATER PUMP
  • 14
    13-39107 LOCKWASHER, (.312-24), WATER PUMP PULLEY SCREW
    LOCKWASHER, (.312-24), WATER PUMP PULLEY SCREW
  • 15
    75420 BALANCER, HARMONIC - CRANKSHAFT
    BALANCER, HARMONIC - CRANKSHAFT
  • 16
    33863T PULLEY, HARMONIC BALANCER (2 GROOVE)
    PULLEY, HARMONIC BALANCER (2 GROOVE)
  • 17
    90081A1 PULLEY (1 GROOVE) (W/POWER STEERING)
    PULLEY (1 GROOVE) (W/POWER STEERING)
  • 18
    10-72626 BOLT, (2 In.), PULLEY AND HARMONIC BALANCER (2")
    BOLT, (2 In.), PULLEY AND HARMONIC BALANCER (2")
  • 19
    13-39131 LOCKWASHER, (.437), PULLEY AND HARMONIC BALANCER BOLT
    LOCKWASHER, (.437), PULLEY AND HARMONIC BALANCER BOLT
  • 20
    12-35332001 WASHER, PULLEY AND HARMONIC BALANCER BOLT
    WASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 21
    10-34352 SCREW, (.375-24 x .875), PULLEY
    (W/O POWER STEERING)
    SCREW, (.375-24 x .875), PULLEY
    (W/O POWER STEERING)
  • 21
    10-35786 SCREW, (.375-24 x 1.00), PULLEY
    (W/POWER STEERING)
    SCREW, (.375-24 x 1.00), PULLEY
    (W/POWER STEERING)
  • 22
    13-35048 LOCKWASHER, (.375), PULLEY BOLT
    LOCKWASHER, (.375), PULLEY BOLT
  • 23
    57-93658Q BELT, (44 Inch), ALTERNATOR DRIVE (44")
    BELT, (44 Inch), ALTERNATOR DRIVE (44")
  • 24
    35365 SUPPORT, SPARK PLUG LEAD WIRE
    SUPPORT, SPARK PLUG LEAD WIRE
  • 25
    10-8M0040582 SCREW, (.250-20 x .563), LEAD WIRE SUPPORT
    SCREW, (.250-20 x .563), LEAD WIRE SUPPORT
  • 26
    8M0127828 COVER, CRANKCASE FRONT
    COVER, CRANKCASE FRONT
  • 26
    8M0127828 COVER, CRANKCASE FRONT
    COVER, CRANKCASE FRONT
  • 27
    26-97335 SEAL, Oil - COVER
    SEAL, Oil - COVER
  • 28
    27-14250 GASKET, COVER
    GASKET, COVER
  • 28
    27-14250 GASKET, COVER
    GASKET, COVER
  • 29
    10-8M0040582 SCREW, (.250-20 x .563), COVER
    SCREW, (.250-20 x .563), COVER
  • 31
    71920 VALVE ASSEMBLY, Filter
    VALVE ASSEMBLY, Filter
  • 32
    10-54786 SCREW, (.312-18 x 1.250), FILTER VALVE TO CYLINDER BLOCK
    SCREW, (.312-18 x 1.250), FILTER VALVE TO CYLINDER BLOCK
  • 33
    35-866340Q03 FILTER ASSEMBLY, Oil
    FILTER ASSEMBLY, Oil
  • 34
    14239 RETAINER, OIL SEAL (REAR)
    RETAINER, OIL SEAL (REAR)
  • 35
    27-881715 GASKET, OIL SEAL RETAINER
    GASKET, OIL SEAL RETAINER
  • 36
    26-8M0077606 SEAL, Oil, CRANKSHAFT (REAR - FULL CIRCLE)
    SEAL, Oil, CRANKSHAFT (REAR - FULL CIRCLE)
  • 37
    10-8M0064241 BOLT, (.250-20 x 1.750), OIL SEAL RETAINER
    BOLT, (.250-20 x 1.750), OIL SEAL RETAINER
  • 38
    10-14242 BOLT, (.250-20 x .875), OIL SEAL RETAINER
    BOLT, (.250-20 x .875), OIL SEAL RETAINER
  • 39
    17-14263 PIN, Dowel
    PIN, Dowel
  • 40
    11-11996 NUT
    NUT
  • 41
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
  • 42
    42697 BACKING PLATE (W/OPOWER STEERING)
    BACKING PLATE (W/OPOWER STEERING)
  • -
    27-75611A86 GASKET SET
    GASKET SET
