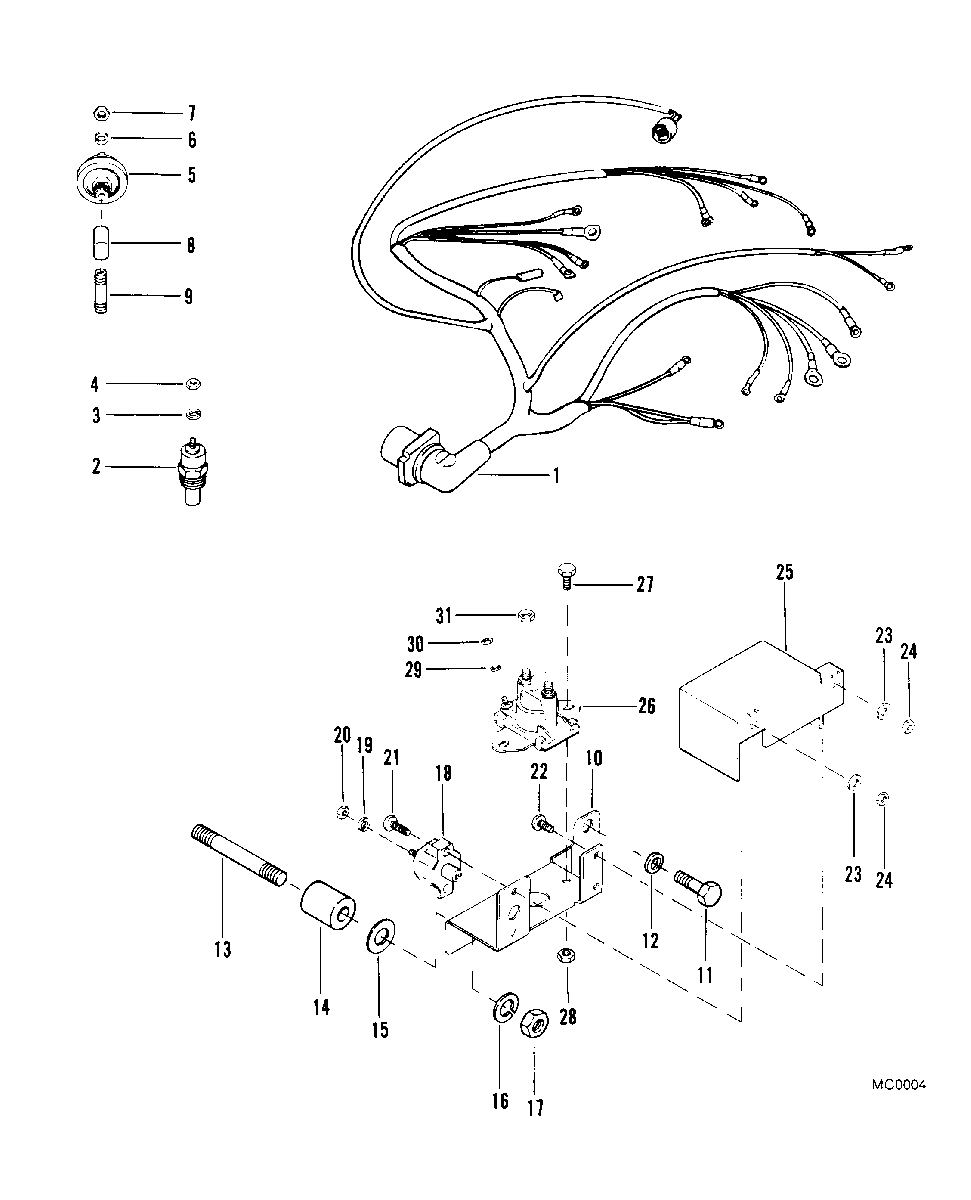

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 5.7L (SKI) GM 350 V-8 1985-1987 0A338533 THRU 0B514626

  • №
    Артикул
    Название
  • 1
    84-12307A2 WIRING HARNESS
    WIRING HARNESS
  • 2
    97258A1 TEMPERATURE SENDER
    TEMPERATURE SENDER
  • 2
    49734 TEMPERATURE SENDER (DUAL)
    TEMPERATURE SENDER (DUAL)
  • 3
    13-26996 LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
    LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 4
    11-68219 NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
    NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 5
    8M0068784 OIL PRESSURE SENDER
    OIL PRESSURE SENDER
  • 5
    37293T OIL PRESSURE SENDER (DUAL)
    OIL PRESSURE SENDER (DUAL)
  • 6
    13-26996 LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
    LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
  • 7
    11-68219 NUT, OIL PRESSURE SENDER TERMINAL (#10)
    NUT, OIL PRESSURE SENDER TERMINAL (#10)
  • 8
    22-46932 ELBOW, OIL PRESSURE SENDER
    ELBOW, OIL PRESSURE SENDER
  • 9
    22-885153 NIPPLE, OIL PRESSURE SENDER
    NIPPLE, OIL PRESSURE SENDER
  • 10
    41170T BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 11
    10-98260 SCREW, MOUNTING BRACKET (5/8")
    SCREW, MOUNTING BRACKET (5/8")
  • 12
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 13
    16-245851 STUD, MOUNTING BRACKET
    STUD, MOUNTING BRACKET
  • 14
    23-15895 SPACER, MOUNTING BRACKET STUD
    SPACER, MOUNTING BRACKET STUD
  • 15
    12-20086 WASHER, MOUNTING BRACKET STUD
    WASHER, MOUNTING BRACKET STUD
  • 16
    13-35048 LOCKWASHER, MOUNTING BRACKET STUD
    LOCKWASHER, MOUNTING BRACKET STUD
  • 17
    11-46335 NUT, MOUNTING BRACKET STUD
    NUT, MOUNTING BRACKET STUD
  • 18
    88-11178A01 CIRCUIT BREAKER (50 AMP.)
    CIRCUIT BREAKER (50 AMP.)
  • 19
    13-26996 LOCKWASHER, CIRCUIT BREAKER TERMINAL
    LOCKWASHER, CIRCUIT BREAKER TERMINAL
  • 20
    11-68219 NUT, CIRCUIT BREAKER TERMINAL
    NUT, CIRCUIT BREAKER TERMINAL
  • 21
    10-45862 SCREW, CIRCUIT BREAKER (7/8")
    SCREW, CIRCUIT BREAKER (7/8")
  • 22
    10-71405 SCREW, INSULATOR
    SCREW, INSULATOR
  • 23
    12-56681 WASHER, CIRCUIT BREAKER SCREW
    WASHER, CIRCUIT BREAKER SCREW
  • 24
    11-46438 NUT, INSULATOR SCREW
    NUT, INSULATOR SCREW
  • 25
    85-96819T INSULATOR, CIRCUIT BREAKER
    INSULATOR, CIRCUIT BREAKER
  • 26
    89-96054T STARTER SOLENOID
    STARTER SOLENOID
  • 27
    10-96138 SCREW, STARTER SOLENOID (5/8")
    SCREW, STARTER SOLENOID (5/8")
  • 28
    11-20088 NUT, STARTER SOLENOID SCREW
    NUT, STARTER SOLENOID SCREW
  • 29
    13-26992 LOCKWASHER, STARTER SOLENOID TERMINAL
    LOCKWASHER, STARTER SOLENOID TERMINAL
  • 30
    11-26419 NUT, STARTER SOLENOID TERMINAL (10-32)
    NUT, STARTER SOLENOID TERMINAL (10-32)
  • 31
    11-94330 NUT, STARTER SOLENOID TERMINAL (1/4-20)
    NUT, STARTER SOLENOID TERMINAL (1/4-20)
