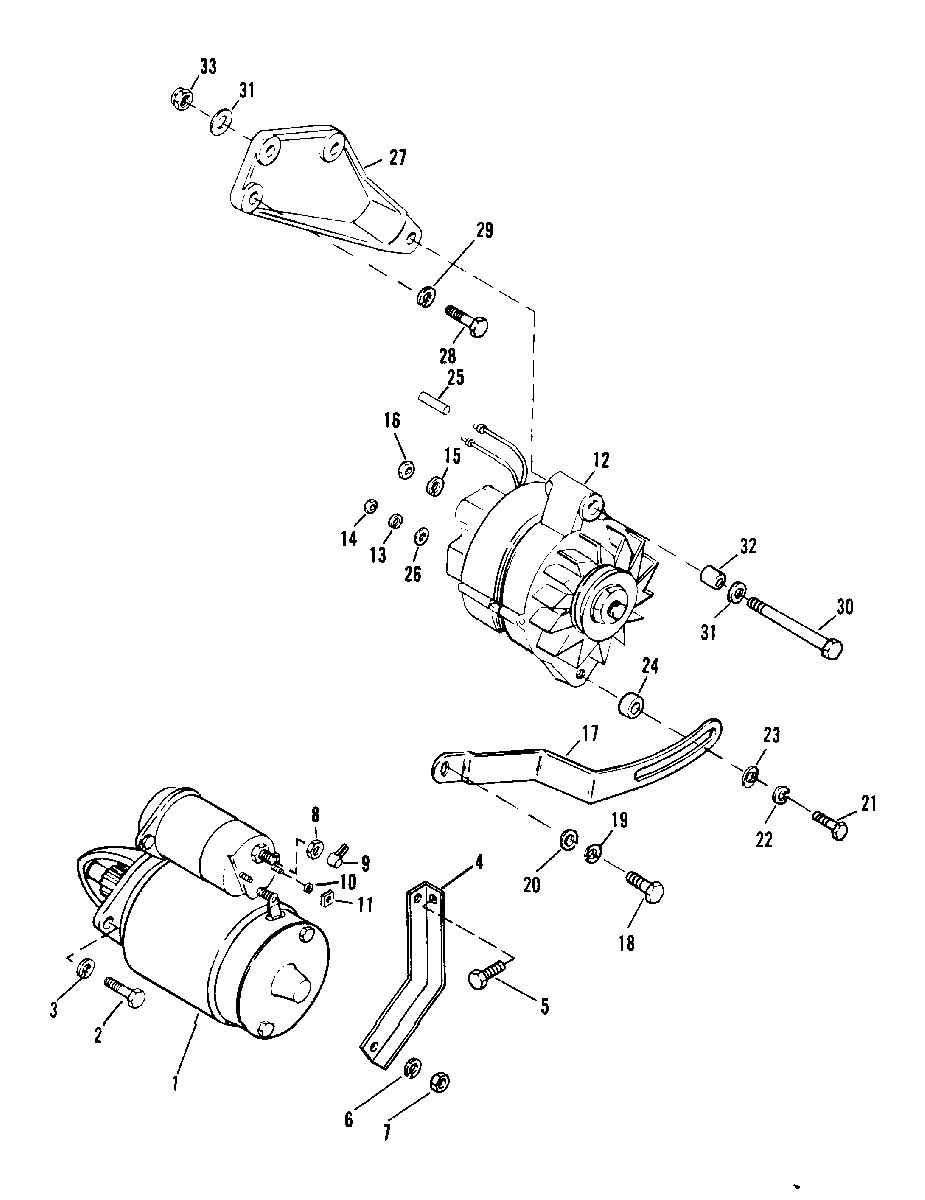

STARTER AND ALTERNATOR для Mercruiser - 5.7L (SKI) GM 350 V-8 1985-1987 0A338533 THRU 0B514626

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER, L.H. ROTATION
    STARTER, L.H. ROTATION
  • 1
    50-97499R3 STARTER, R.H. ROTATION
    STARTER, R.H. ROTATION
  • 2
    10-47462 SCREW, STARTER MOTOR (1-1/4") - R.H. ROTATION
    SCREW, STARTER MOTOR (1-1/4") - R.H. ROTATION
  • 3
    13-32993 LOCKWASHER, STARTER MOTOR SCREW -R.H. ROTATION
    LOCKWASHER, STARTER MOTOR SCREW -R.H. ROTATION
  • 2
    10-94435001 SCREW, STARTER MOTOR TO CYL. BLOCK (4-21/32")- L.H. ROTATION
    SCREW, STARTER MOTOR TO CYL. BLOCK (4-21/32")- L.H. ROTATION
  • 4
    12404 BRACE, STARTER MOTOR - L.H. ROTATION
    BRACE, STARTER MOTOR - L.H. ROTATION
  • 5
    10-35765A1 SCREW, BRACE TO ENGINE (5/8") - L.H. ROTATION
    SCREW, BRACE TO ENGINE (5/8") - L.H. ROTATION
  • 6
    12-29245 WASHER, STARTER MOTOR STUD - L.H. ROTATION
    WASHER, STARTER MOTOR STUD - L.H. ROTATION
  • 7
    11-8267088 NUT, STARTER MOTOR STUD - L.H. ROTATION
    NUT, STARTER MOTOR STUD - L.H. ROTATION
  • 8
    11-32219 NUT, STARTER TERMINAL (3/8-16)
    NUT, STARTER TERMINAL (3/8-16)
  • 9
    85-79695T BOOT, INSULATOR - STARTER TERMINAL
    BOOT, INSULATOR - STARTER TERMINAL
  • 10
    13-26995 LOCKWASHER, STARTER TERMINAL
    LOCKWASHER, STARTER TERMINAL
  • 11
    11-26419 NUT, STARTER TERMINAL (#8-32)
    NUT, STARTER TERMINAL (#8-32)
  • 12
    817119A4 ALTERNATOR (55 AMP.)
    ALTERNATOR (55 AMP.)
  • 13
    13-26996 LOCKWASHER, ALTERNATOR TERMINAL
    LOCKWASHER, ALTERNATOR TERMINAL
  • 14
    11-79989 NUT, ALTERNATOR TERMINAL (10-24)
    NUT, ALTERNATOR TERMINAL (10-24)
  • 15
    13-21272 LOCKWASHER, ALTERNATOR TERMINAL
    LOCKWASHER, ALTERNATOR TERMINAL
  • 16
    11-64015 NUT, ALTERNATOR TERMINAL (1/4-20)
    NUT, ALTERNATOR TERMINAL (1/4-20)
  • 17
    85013T BRACE, ALTERNATOR ADJUSTING
    BRACE, ALTERNATOR ADJUSTING
  • 18
    10-98261 SCREW, ALTERNATOR BRACE
    SCREW, ALTERNATOR BRACE
  • 19
    13-35048 LOCKWASHER, ALTERNATOR BRACE SCREW
    LOCKWASHER, ALTERNATOR BRACE SCREW
  • 20
    12-20553 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 21
    10-74824 SCREW, ALTERNATOR BRACE (1-1/4")
    SCREW, ALTERNATOR BRACE (1-1/4")
  • 22
    13-39107 LOCKWASHER, ALTERNATOR BRACE SCREW
    LOCKWASHER, ALTERNATOR BRACE SCREW
  • 23
    12-26168 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 24
    23-52095 SPACER, ALTERNATOR BRACE SCREW
    SPACER, ALTERNATOR BRACE SCREW
  • 25
    5790811 TUBING, ALTERNATOR LEADS
    TUBING, ALTERNATOR LEADS
  • 26
    12-96457 WASHER, ALTERNATOR TERMINAL
    WASHER, ALTERNATOR TERMINAL
  • 27
    93175T BRACKET, ALTERNATOR
    BRACKET, ALTERNATOR
  • 28
    10-37612 SCREW, ALTERNATOR BRACKET (1-1/4")
    SCREW, ALTERNATOR BRACKET (1-1/4")
  • 29
    13-35048 LOCKWASHER, ALTERNATOR BRACKET SCREW
    LOCKWASHER, ALTERNATOR BRACKET SCREW
  • 30
    10-48308 SCREW, ALTERNATOR (3-3/4")
    SCREW, ALTERNATOR (3-3/4")
  • 31
    12-20553 WASHER, ALTERNATOR BRACKET SCREW
    WASHER, ALTERNATOR BRACKET SCREW
  • 32
    23-33186 BUSHING, ALTERNATOR BRACKET SCREW
    BUSHING, ALTERNATOR BRACKET SCREW
  • 33
    11-23161 NUT, ALTERNATOR BRACKET SCREW
    NUT, ALTERNATOR BRACKET SCREW
