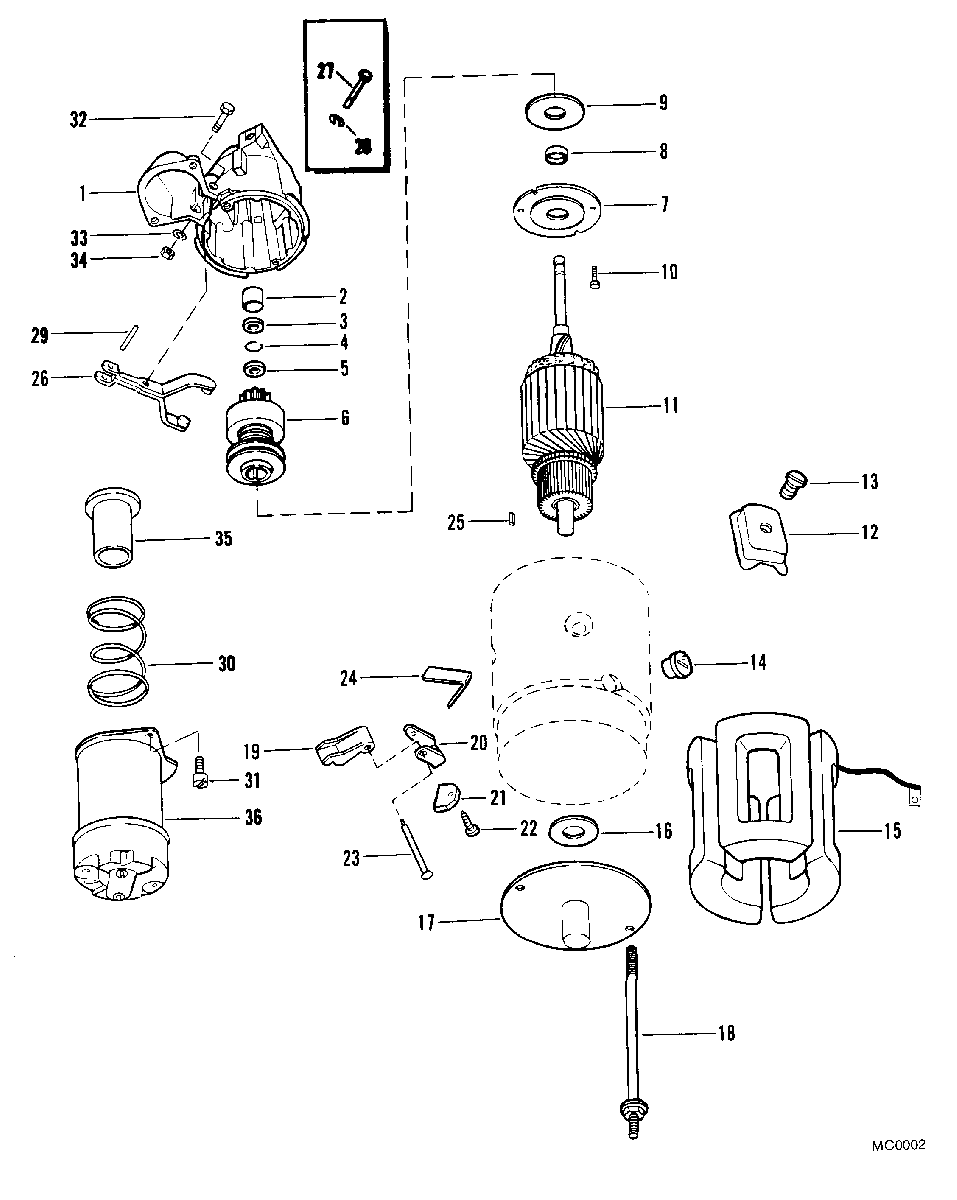

STARTER MOTOR для Mercruiser - 5.7L (SKI) GM 350 V-8 1985-1987 0A338533 THRU 0B514626

  • №
    Артикул
    Название
  • 50-863007A1 STARTER (L.H. ROTATION)
    STARTER (L.H. ROTATION)
  • 50-97499R3 STARTER (R.H. ROTATION)
    STARTER (R.H. ROTATION)
  • 1
    75666 HOUSING, DRIVE END - L.H. ROTATION
    HOUSING, DRIVE END - L.H. ROTATION
  • 1
    13754 HOUSING, DRIVE END - L.H. ROTATION
    HOUSING, DRIVE END - L.H. ROTATION
  • 1
    79206 HOUSING, DRIVE END (R.H. ROTATION)
    HOUSING, DRIVE END (R.H. ROTATION)
  • 2
    23-33369 BUSHING
    BUSHING
  • 3
    23-809457 COLLAR, THRUST
    COLLAR, THRUST
  • 4
    53-33290 RING, RETAINING
    RING, RETAINING
  • 5
    33291 COLLAR
    COLLAR
  • 6
    79205T DRIVE ASSEMBLY, CLUTCH (L.H. ROTATION)
    DRIVE ASSEMBLY, CLUTCH (L.H. ROTATION)
  • 6
    68609 DRIVE ASSEMBLY, CLUTCH (R.H. ROTATION)
    DRIVE ASSEMBLY, CLUTCH (R.H. ROTATION)
  • 7
    79396 PLATE, BEARING
    PLATE, BEARING
  • 8
    23-71694 BUSHING, BEARING PLATE
    BUSHING, BEARING PLATE
  • 9
    12-68614 WASHER, BEARING PLATE
    WASHER, BEARING PLATE
  • 10
    N.S.S. SCREW (DELCO REMY #1972786) - L.H. ROTATION
    SCREW (DELCO REMY #1972786) - L.H. ROTATION
  • 11
    71693 ARMATURE - L.H. ROTATION
    ARMATURE - L.H. ROTATION
  • 12
    N.S.S. SHOE, POLE (DELCO REMY #1931129) - L.H. ROTATION
    SHOE, POLE (DELCO REMY #1931129) - L.H. ROTATION
  • 10
    N.S.S. SCREW (DELCO REMY #1984000) - L.H. ROTATION
    SCREW (DELCO REMY #1984000) - L.H. ROTATION
  • 11
    75665 ARMATURE - L.H. ROTATION
    ARMATURE - L.H. ROTATION
  • 12
    N.S.S. SHOE, POLE (DELCO REMY #810601) - L.H. ROTATION
    SHOE, POLE (DELCO REMY #810601) - L.H. ROTATION
  • 10
    10-75659 SCREW - R.H. ROTATION
    SCREW - R.H. ROTATION
  • 11
    68607 ARMATURE - R.H. ROTATION
    ARMATURE - R.H. ROTATION
  • 12
    N.S.S. SHOE, POLE (DELCO REMY #810601) - R.H. ROTATION
    SHOE, POLE (DELCO REMY #810601) - R.H. ROTATION
  • 13
    N.S.S. SCREW, POLE SHOE TO FIELD COIL (DELCO REMY #1968396)
    SCREW, POLE SHOE TO FIELD COIL (DELCO REMY #1968396)
  • 14
    25-79208 GROMMET, FIELD FRAME (L.H. ROTATION)
    GROMMET, FIELD FRAME (L.H. ROTATION)
  • 14
    N.S.S. GROMMET, FRAME (DELCO REMY #1846097) (R.H. ROTATION)
    GROMMET, FRAME (DELCO REMY #1846097) (R.H. ROTATION)
  • 15
    79212 FIELD COIL ASSEMBLY - L.H. ROTATION
    FIELD COIL ASSEMBLY - L.H. ROTATION
  • 15
    75664 FIELD COIL ASSEMBLY - L.H. ROTATION
    FIELD COIL ASSEMBLY - L.H. ROTATION
  • 15
    75664 FIELD COIL ASSEMBLY (R.H. ROTATION)
    FIELD COIL ASSEMBLY (R.H. ROTATION)
  • 16
    12-33258 WASHER, LEATHER - COMMUTATOR END FRAME
    WASHER, LEATHER - COMMUTATOR END FRAME
  • 17
    79211 FRAME, COMMUTATOR END - LOWER
    FRAME, COMMUTATOR END - LOWER
  • 18
    N.S.S. BOLT, THRU (DELCO REMY #1941111)
    BOLT, THRU (DELCO REMY #1941111)
  • 18
    N.S.S. BOLT, THRU (DELCO REMY #1939970)
    BOLT, THRU (DELCO REMY #1939970)
  • 19
    33284 HOLDER, INSULATED
    HOLDER, INSULATED
  • 20
    33283 HOLDER, FIELD FRAME BRUSH GROUND
    HOLDER, FIELD FRAME BRUSH GROUND
  • 21
    33270 BRUSH, FIELD FRAME
    BRUSH, FIELD FRAME
  • 22
    N.S.S. SCREW, BRUSH LEAD (DELCO REMY #1967747)
    SCREW, BRUSH LEAD (DELCO REMY #1967747)
  • 22
    N.S.S. SCREW, BRUSH LEAD (DELCO REMY #443527)
    SCREW, BRUSH LEAD (DELCO REMY #443527)
  • 23
    33294 SUPPORT PACKAGE, GROUND AND INSULATED HOLDERS
    SUPPORT PACKAGE, GROUND AND INSULATED HOLDERS
  • 24
    24-33285 SPRING, FIELD FRAME BRUSH
    SPRING, FIELD FRAME BRUSH
  • 25
    N.S.S. PIN, DOWEL - FIELD FRAME 9DELCO REMY #1985696)
    PIN, DOWEL - FIELD FRAME 9DELCO REMY #1985696)
  • 26
    71698 LEVER, SHIFT L.H. ROTATION
    LEVER, SHIFT L.H. ROTATION
  • 27
    N.S.S. STUD, SHIFT LEVER (DELCO REMY #1945804) - L.H. ROTATION
    STUD, SHIFT LEVER (DELCO REMY #1945804) - L.H. ROTATION
  • 28
    N.S.S. RETAINING RING (DELCO REMY #11505767) - L.H. ROTATION
    RETAINING RING (DELCO REMY #11505767) - L.H. ROTATION
  • 29
    N.S.S. PIN, PLUNGER (DELCO REMY #1987049)
    PIN, PLUNGER (DELCO REMY #1987049)
  • 30
    N.S.S. SPRING, PLUNGER (DELCO REMY #1978281)
    SPRING, PLUNGER (DELCO REMY #1978281)
  • 31
    N.S.S. SCREW, SWITCH (DELCO REMY #9413260)
    SCREW, SWITCH (DELCO REMY #9413260)
  • 26
    33297 LEVER, SHIFT R.H. ROTATION
    LEVER, SHIFT R.H. ROTATION
  • 29
    17-79207 PIN, PLUNGER - R.H. ROTATION
    PIN, PLUNGER - R.H. ROTATION
  • 30
    24-46889 SPRING, PLUNGER - R.H. ROTATION
    SPRING, PLUNGER - R.H. ROTATION
  • 31
    N.S.S. SCREW, SWITCH (DELCO REMY #132255) - R.H. ROTATION
    SCREW, SWITCH (DELCO REMY #132255) - R.H. ROTATION
  • 32
    N.S.S. STUD, SHIFT LEVER (DELCO REMY #1814529) - R.H. ROTATION
    STUD, SHIFT LEVER (DELCO REMY #1814529) - R.H. ROTATION
  • 33
    12-68615 WASHER, SHIFT LEVER STUD - R.H. ROTATION
    WASHER, SHIFT LEVER STUD - R.H. ROTATION
  • 34
    11-26484 NUT, SHIFT LEVER STUD - R.H. ROTATION
    NUT, SHIFT LEVER STUD - R.H. ROTATION
  • 35
    33317 PLUNGER, SHIFT LEVER
    PLUNGER, SHIFT LEVER
  • 36
    13037 SOLENOID SWITCH ASSEMBLY
    SOLENOID SWITCH ASSEMBLY
