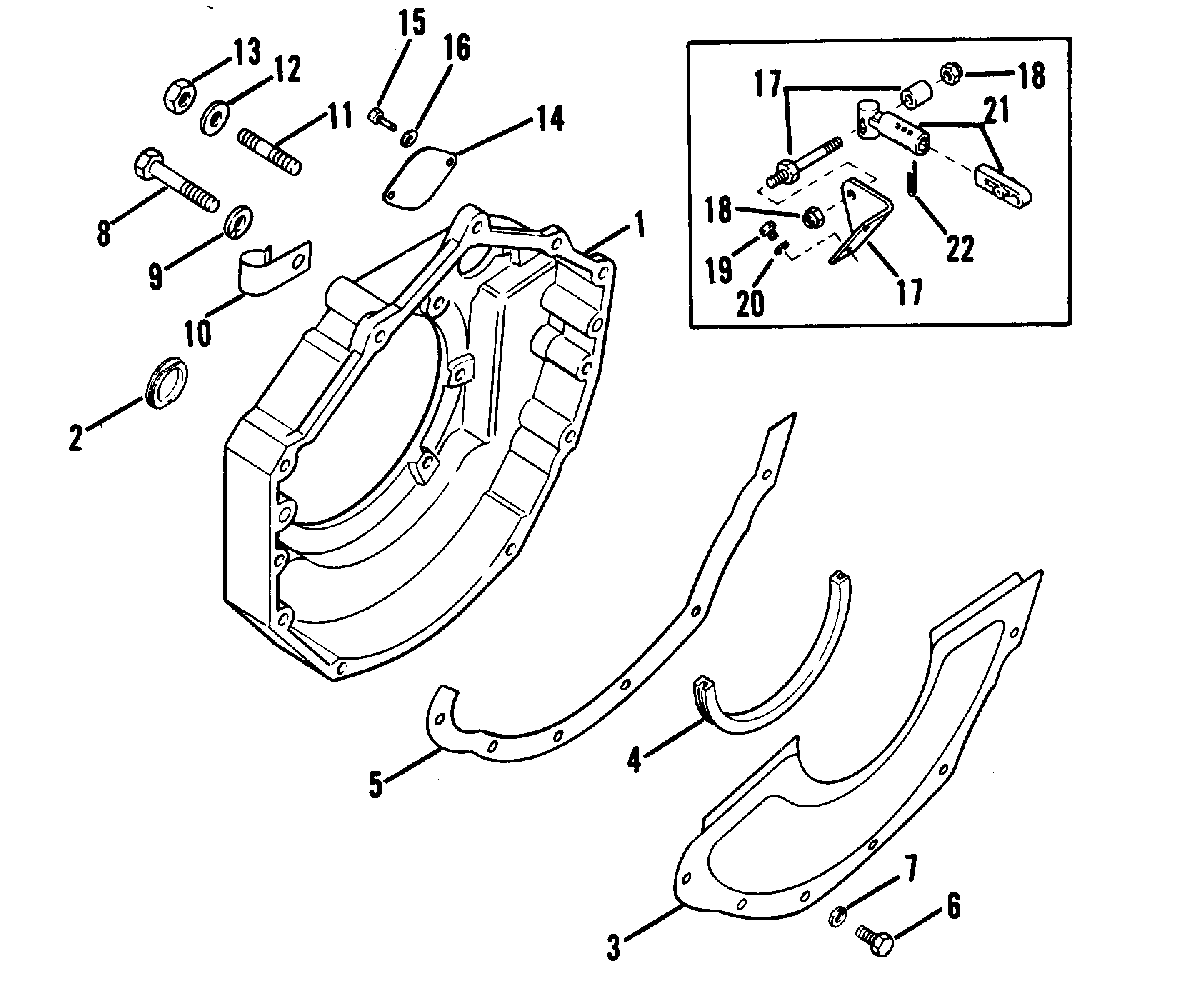

FLYWHEEL HOUSING для Mercruiser - 5.7L (SKI) GM 350 V-8 1985-1987 0A338533 THRU 0B514626

№

Артикул

Название
1

814309A1 HOUSING, FLYWHEEL

HOUSING, FLYWHEEL
2

19-12304 PLUG, TIMING WINDOW

PLUG, TIMING WINDOW
3

818718A3 COVER ASSY., FLYWHEEL HOUSING (L.H. ROTATION)

COVER ASSY., FLYWHEEL HOUSING (L.H. ROTATION)
3

818718A4 COVER ASSY., FLYWHEEL HOUSING- R.H. ROTAION

COVER ASSY., FLYWHEEL HOUSING- R.H. ROTAION
4

87690 SEAL, FLYWHEEL HOUSING COVER - R.H. ROTAION

SEAL, FLYWHEEL HOUSING COVER - R.H. ROTAION
5

27-86015 GASKET, FLYWHEEL HOUSING COVER

GASKET, FLYWHEEL HOUSING COVER
6

10-98253 SCREW, COVER TO FLYWHEEL HOUSING (1/2")

SCREW, COVER TO FLYWHEEL HOUSING (1/2")
7

13-26992 LOCKWASHER, COVER SCREW

LOCKWASHER, COVER SCREW
8

10-34353 SCREW, FLYWHEEL HOUSING (1")

SCREW, FLYWHEEL HOUSING (1")
8

10-47688 SCREW, FLYWHEEL HOUSING (2-3/4")

SCREW, FLYWHEEL HOUSING (2-3/4")
8

10-48424 SCREW, FLYWHEEL HOUSING (1-5/8")

SCREW, FLYWHEEL HOUSING (1-5/8")
9

13-35048 LOCKWASHER, FLYWHEEL HOUSING SCREW

LOCKWASHER, FLYWHEEL HOUSING SCREW
10

54-78945 J CLAMP, FLYWHEEL HOUSING SCREW

J CLAMP, FLYWHEEL HOUSING SCREW
11

16-861316 STUD, FLYWHELL HOUSING (2-1/4")

STUD, FLYWHELL HOUSING (2-1/4")
12

12-20572 WASHER, FLYWHEEL HOUSING STUD

WASHER, FLYWHEEL HOUSING STUD
13

11-32219 NUT, FLYWHEEL HOUSING STUD

NUT, FLYWHEEL HOUSING STUD
14

939201 PLATE, FLYWHEEL HOUSING-L.H. ROTATION

PLATE, FLYWHEEL HOUSING-L.H. ROTATION
15

10-92913 SCREW, PLATE -L.H. ROTATION

SCREW, PLATE -L.H. ROTATION
16

13-32993 LOCKWASHER, PLATE SCREW -L.H. ROTATION

LOCKWASHER, PLATE SCREW -L.H. ROTATION
17

18351A1 BRACKET ASSEMBLY, SHIFT CABLE

BRACKET ASSEMBLY, SHIFT CABLE
18

11-862902 NUT, SHIFT CABLE STUD

NUT, SHIFT CABLE STUD
19

10-54615 SCREW, BRACKET TO FLYWHEEL HOUSING

SCREW, BRACKET TO FLYWHEEL HOUSING
20

13-26992 LOCKWASHER, BRACKET SCREW

LOCKWASHER, BRACKET SCREW
21

64-892790A01 ADAPTOR ASSEMBLY

ADAPTOR ASSEMBLY
22

64-892790A01 CLIP, ADAPTOR

CLIP, ADAPTOR
