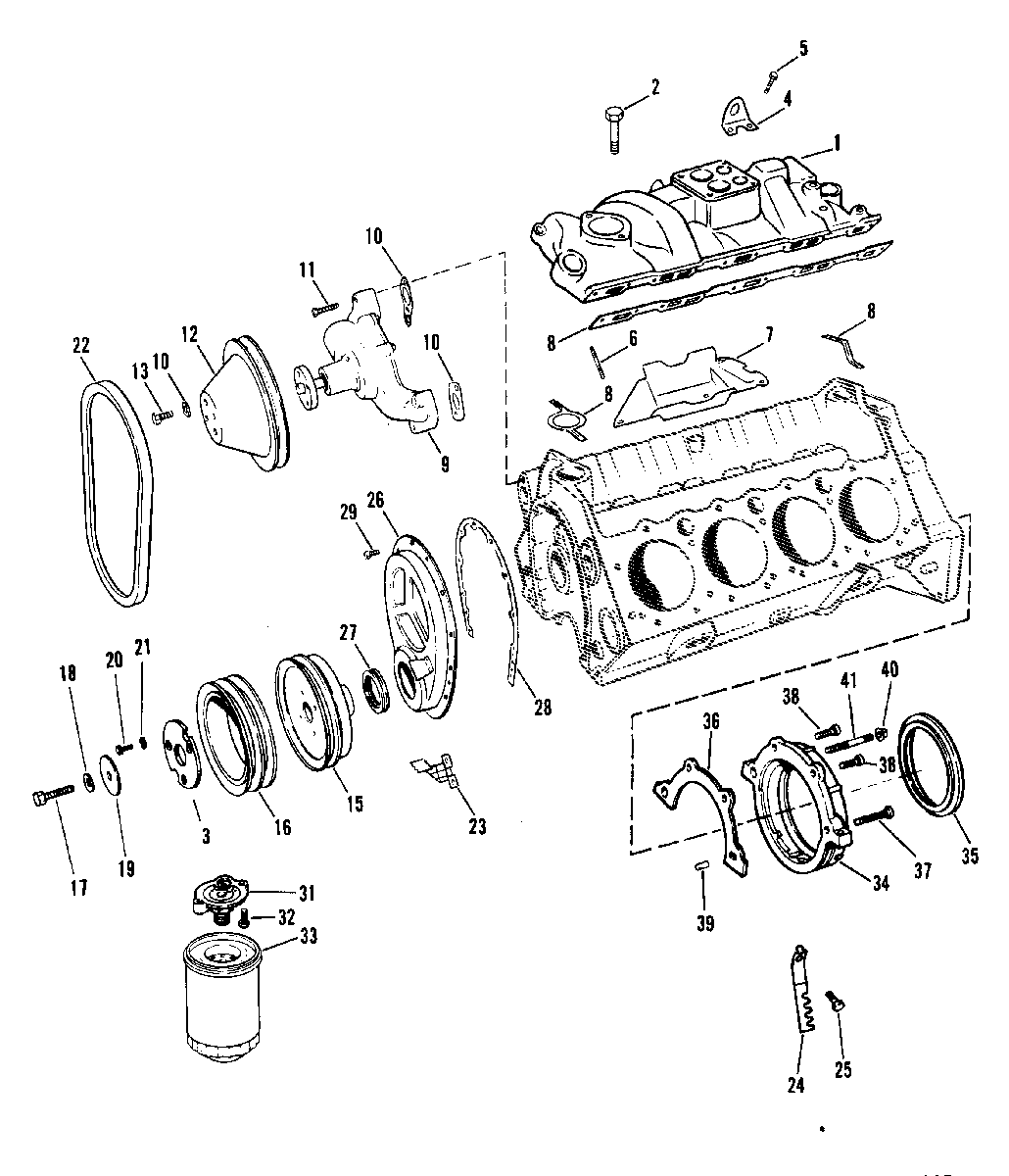

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 5.7L (SKI) GM 350 V-8 1985-1987 0A338533 THRU 0B514626

  • №
    Артикул
    Название
  • 1
    72646T INTAKE MANIFOLD
    INTAKE MANIFOLD
  • 2
    10-11976 BOLT, INTAKE MANIFOLD
    BOLT, INTAKE MANIFOLD
  • 2
    N.S.S. BOLT, INTAKE MANIFOLD (GM #9439921)
    BOLT, INTAKE MANIFOLD (GM #9439921)
  • 3
    42697 PLATE, PULLEY
    PLATE, PULLEY
  • 4
    54-47512 EYE, LIFTING
    EYE, LIFTING
  • 5
    10-34354 SCREW, LIFTING EYE
    SCREW, LIFTING EYE
  • 6
    N.S.S. STUD, GUARD TO INTAKE MANIFOLD (GM #3959544)
    STUD, GUARD TO INTAKE MANIFOLD (GM #3959544)
  • 7
    72647 GUARD, INTAKE MANIFOLD
    GUARD, INTAKE MANIFOLD
  • 8
    27-17145 GASKET SET, INTAKE MANIFOLD
    GASKET SET, INTAKE MANIFOLD
  • 9
    46-8M0113734 WATER PUMP ASSEMBLY
    WATER PUMP ASSEMBLY
  • 10
    27-34897 GASKET, WATER PUMP MOUNTING
    GASKET, WATER PUMP MOUNTING
  • 11
    10-32132 SCREW, WATER PUMP TO CYLINDER BLOCK (1-3/4")
    SCREW, WATER PUMP TO CYLINDER BLOCK (1-3/4")
  • 11
    10-47688 SCREW, WATER PUMP TO CYLINDER BLOCK (2-3/4")
    SCREW, WATER PUMP TO CYLINDER BLOCK (2-3/4")
  • 11
    10-52200 SCREW, WATER PUMP TO CYLINDER BLOCK (1-1/2")
    SCREW, WATER PUMP TO CYLINDER BLOCK (1-1/2")
  • 12
    42799 PULLEY, WATER PUMP
    PULLEY, WATER PUMP
  • 13
    10-47277 SCREW, PULLEY TO WATER PUMP (3/4")
    SCREW, PULLEY TO WATER PUMP (3/4")
  • 14
    13-39107 LOCKWASHER, WATER PUMP PULLEY SCREW
    LOCKWASHER, WATER PUMP PULLEY SCREW
  • 15
    75420 BALANCER, HARMONIC - CRANKSHAFT
    BALANCER, HARMONIC - CRANKSHAFT
  • 16
    33863T PULLEY, HARMONIC BALANCER
    PULLEY, HARMONIC BALANCER
  • 17
    10-72626 BOLT, PULLEY AND HARMONIC BALANCER (2")
    BOLT, PULLEY AND HARMONIC BALANCER (2")
  • 18
    13-39131 LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
    LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 19
    12-35332001 WASHER, PULLEY AND HARMONIC BALANCER BOLT
    WASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 20
    10-34352 BOLT, PULLEY (7/8")
    BOLT, PULLEY (7/8")
  • 21
    13-35048 LOCKWASHER, PULLEY BOLT
    LOCKWASHER, PULLEY BOLT
  • 22
    57-93658Q BELT, ALTERNATOR DRIVE (44")
    BELT, ALTERNATOR DRIVE (44")
  • 23
    75435A1 POINTER, TIMING
    POINTER, TIMING
  • 24
    35365 SUPPORT, SPARK PLUG LEAD WIRE
    SUPPORT, SPARK PLUG LEAD WIRE
  • 25
    10-8M0040582 SCREW, LEAD WIRE SUPPORT (2-1/2")
    SCREW, LEAD WIRE SUPPORT (2-1/2")
  • 26
    8M0127828 COVER ASSEMBLY, CRANKCASE FRONT (L.H. ROTATION)
    COVER ASSEMBLY, CRANKCASE FRONT (L.H. ROTATION)
  • 26
    8M0127828 COVER ASSEMBLY, CRANKCASE FRONT (R.H. ROTATION)
    COVER ASSEMBLY, CRANKCASE FRONT (R.H. ROTATION)
  • 27
    26-97335 OIL SEAL, COVER
    OIL SEAL, COVER
  • 28
    27-14250 GASKET, CRANKCASE FRONT END COVER
    GASKET, CRANKCASE FRONT END COVER
  • 26
    8M0127828 COVER, CRANKCASE FRONT
    COVER, CRANKCASE FRONT
  • 27
    26-97335 OIL SEAL, COVER
    OIL SEAL, COVER
  • 28
    8M0127828 GASKET, COVER
    GASKET, COVER
  • 29
    10-8M0040582 SCREW, COVER
    SCREW, COVER
  • 31
    71920 FILTER VALVE
    FILTER VALVE
  • 32
    10-54786 SCREW, FILTER VALVE TO CYLINDER BLOCK
    SCREW, FILTER VALVE TO CYLINDER BLOCK
  • 33
    35-866340Q03 OIL FILTER
    OIL FILTER
  • 34
    14239 RETAINER, OIL SEAL (REAR) L.H. ROTATION
    RETAINER, OIL SEAL (REAR) L.H. ROTATION
  • 35
    26-8M0077606 OIL SEAL, CRANKSHAFT (REAR) L.H. ROTATION
    OIL SEAL, CRANKSHAFT (REAR) L.H. ROTATION
  • 34
    15122 RETAINER, OIL SEAL (REAR) R.H. ROTATION
    RETAINER, OIL SEAL (REAR) R.H. ROTATION
  • 35
    26-8M0062772 OIL SEAL, CRANKSHAFT (REAR) R.H. ROTATION
    OIL SEAL, CRANKSHAFT (REAR) R.H. ROTATION
  • 36
    27-881715 GASKET, OIL SEAL RETAINER
    GASKET, OIL SEAL RETAINER
  • 37
    10-8M0064241 BOLT, OIL SEAL RETAINER
    BOLT, OIL SEAL RETAINER
  • 38
    10-14242 BOLT, OIL SEAL RETAINER
    BOLT, OIL SEAL RETAINER
  • 39
    17-14263 DOWEL PIN
    DOWEL PIN
  • 40
    11-11996 NUT
    NUT
  • 41
    16-14827 STUD
    STUD
