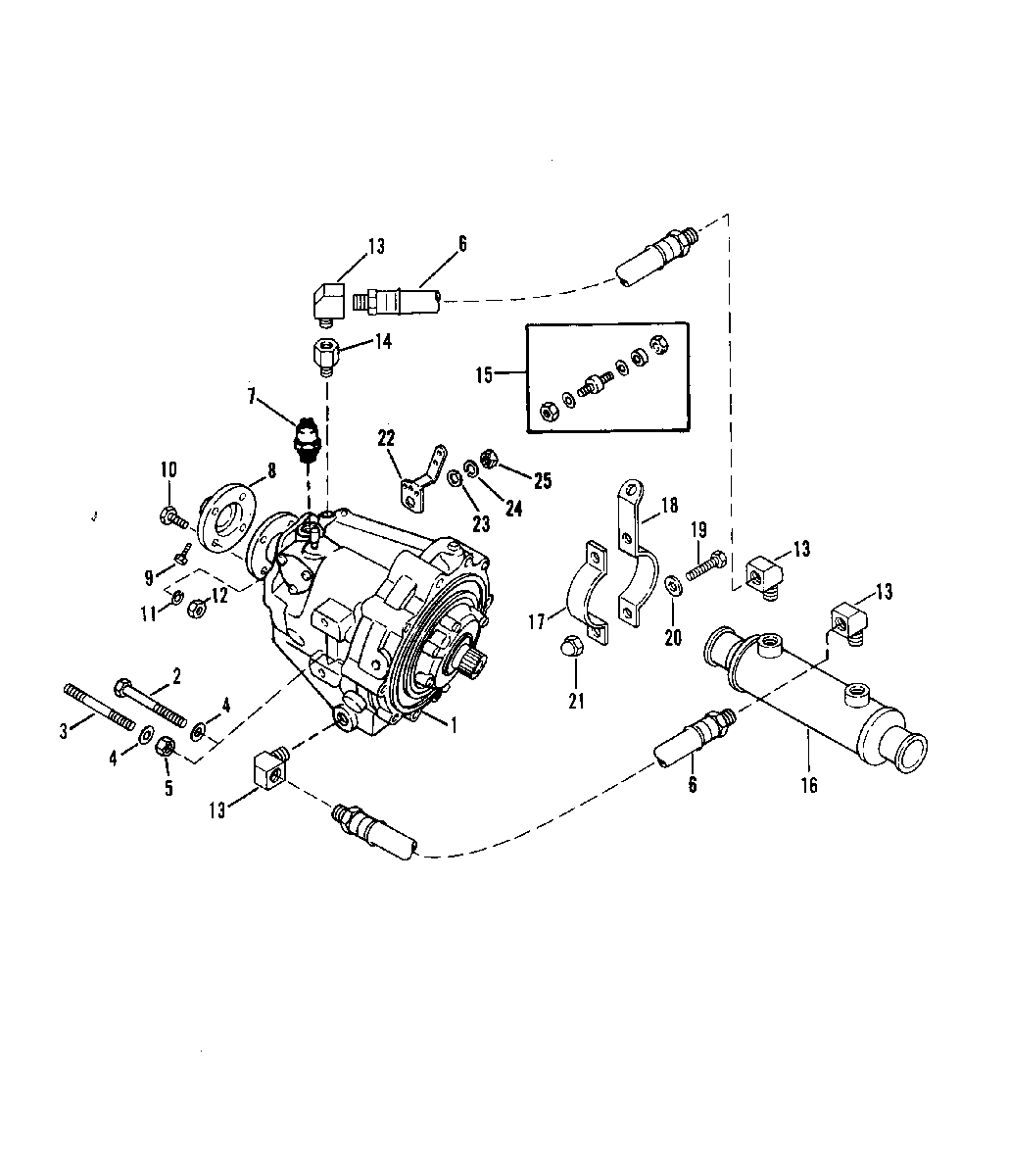

TRANSMISSION AND RELATED PARTS (IN-LINE) для Mercruiser - 5.7L (SKI) GM 350 V-8 1985-1987 0A338533 THRU 0B514626

  • №
    Артикул
    Название
  • 1
    47805A7 TRANSMISSION (DIRET DRIVE)
    TRANSMISSION (DIRET DRIVE)
  • 1
    47806R07 TRANSMISSION (1.523:1 REDUCTION)
    TRANSMISSION (1.523:1 REDUCTION)
  • 2
    10-60179 SCREW, TRANSMISSION (3-1/2")
    SCREW, TRANSMISSION (3-1/2")
  • 2
    10-60179 SCREW, TRANSMISSION (3-1/2")
    SCREW, TRANSMISSION (3-1/2")
  • 3
    16-57921 STUD, TRANSMISSION (4")
    STUD, TRANSMISSION (4")
  • 4
    13-32993 LOCKWASHER, SCREW AND STUD
    LOCKWASHER, SCREW AND STUD
  • 5
    11-22024 NUT, STUD
    NUT, STUD
  • 6
    32-4751613 HOSE, TRANSMISSION/COOLER 44"
    HOSE, TRANSMISSION/COOLER 44"
  • 6
    32-4751613 HOSE, TRANSMISSION/COOLER 49"
    HOSE, TRANSMISSION/COOLER 49"
  • 7
    87-88031 SWITCH, TEMPERATURE
    SWITCH, TEMPERATURE
  • 8
    87917A1 FLANGE ASSY. (1") SEE NOTE A
    FLANGE ASSY. (1") SEE NOTE A
  • 8
    87917A2 FLANGE ASSY. (1-1/8") SEE NOTE A
    FLANGE ASSY. (1-1/8") SEE NOTE A
  • 8
    87917A3 FLANGE ASSY. (1-1/4") SEE NOTE A
    FLANGE ASSY. (1-1/4") SEE NOTE A
  • 8
    48384A1 FLANGE ASSY. (1-3/8") SEE NOTE A
    FLANGE ASSY. (1-3/8") SEE NOTE A
  • 8
    87917A5 FLANGE ASSY (1-1/2") SEE NOTE A
    FLANGE ASSY (1-1/2") SEE NOTE A
  • 8
    79476A1 FLANGE ASSY. (1") SEE NOTE B
    FLANGE ASSY. (1") SEE NOTE B
  • 8
    79476A2 FLANGE ASSY. (1-1/8") SEE NOTE B
    FLANGE ASSY. (1-1/8") SEE NOTE B
  • 8
    79476A3 FLANGE ASSY. (1-1/4") - SEE NOTE B
    FLANGE ASSY. (1-1/4") - SEE NOTE B
  • 8
    79476A3 FLANGE ASSY. (1-3/8") SEE NOTE B
    FLANGE ASSY. (1-3/8") SEE NOTE B
  • 8
    79476A5 FLANGE ASSY. (1-1/2") SEE NOTE B
    FLANGE ASSY. (1-1/2") SEE NOTE B
  • 9
    10-60168 SCREW, FLANGE (1-1/2") SEE NOTES A AND B
    SCREW, FLANGE (1-1/2") SEE NOTES A AND B
  • 9
    10-60171 SCREW, FLANGE (1-1/4") SEE NOTES A AND B
    SCREW, FLANGE (1-1/4") SEE NOTES A AND B
  • 9
    10-60171 SCREW, FLANGE (1") SEE NOTES A AND B
    SCREW, FLANGE (1") SEE NOTES A AND B
  • 9
    10-60169 SCREW, FLANGE (3/4") SEE NOTES A AND B
    SCREW, FLANGE (3/4") SEE NOTES A AND B
  • 10
    10-37909 SCREW, FLANGE (1-1/8")
    SCREW, FLANGE (1-1/8")
  • 10
    10-60106 SCREW, FLANGE (1-1/4")
    SCREW, FLANGE (1-1/4")
  • 11
    13-35048 LOCKWASHER, FLANGE SCREW
    LOCKWASHER, FLANGE SCREW
  • 11
    13-32993 LOCKWASHER, FLANGE SCREW
    LOCKWASHER, FLANGE SCREW
  • 12
    11-32219 NUT, FLANGE SCREW
    NUT, FLANGE SCREW
  • 12
    11-22024 NUT, FLANGE SCREW
    NUT, FLANGE SCREW
  • 13
    22-47629 ELBOW, HOSE (90)
    ELBOW, HOSE (90)
  • 14
    22-88517 ADAPTER, ELBOW
    ADAPTER, ELBOW
  • 15
    16-97477A3 STUD, CABLE
    STUD, CABLE
  • 16
    63832A1 OIL COOLER, TRANSMISSION
    OIL COOLER, TRANSMISSION
  • 17
    56328A1 BRACKET, OIL COOLER (SHORT)
    BRACKET, OIL COOLER (SHORT)
  • 18
    63820T BRACKET, OIL COOLER (LONG)
    BRACKET, OIL COOLER (LONG)
  • 19
    10-60300 SCREW, OIL COOLER BRACKET (3/4")
    SCREW, OIL COOLER BRACKET (3/4")
  • 20
    12-25909 WASHER, OIL COOLER BRACKET SCREW
    WASHER, OIL COOLER BRACKET SCREW
  • 21
    11-30506 NUT, OIL COOLER BRACKET SCREW
    NUT, OIL COOLER BRACKET SCREW
  • 22
    43325 SHIFT LEVER, TRANSMISSION
    SHIFT LEVER, TRANSMISSION
  • 23
    12-20722 WASHER, SHIFT LEVER
    WASHER, SHIFT LEVER
  • 24
    13-26993 LOCKWASHER, SHIFT LEVER
    LOCKWASHER, SHIFT LEVER
  • 25
    11-22053 NUT, SHIFT LEVER
    NUT, SHIFT LEVER
