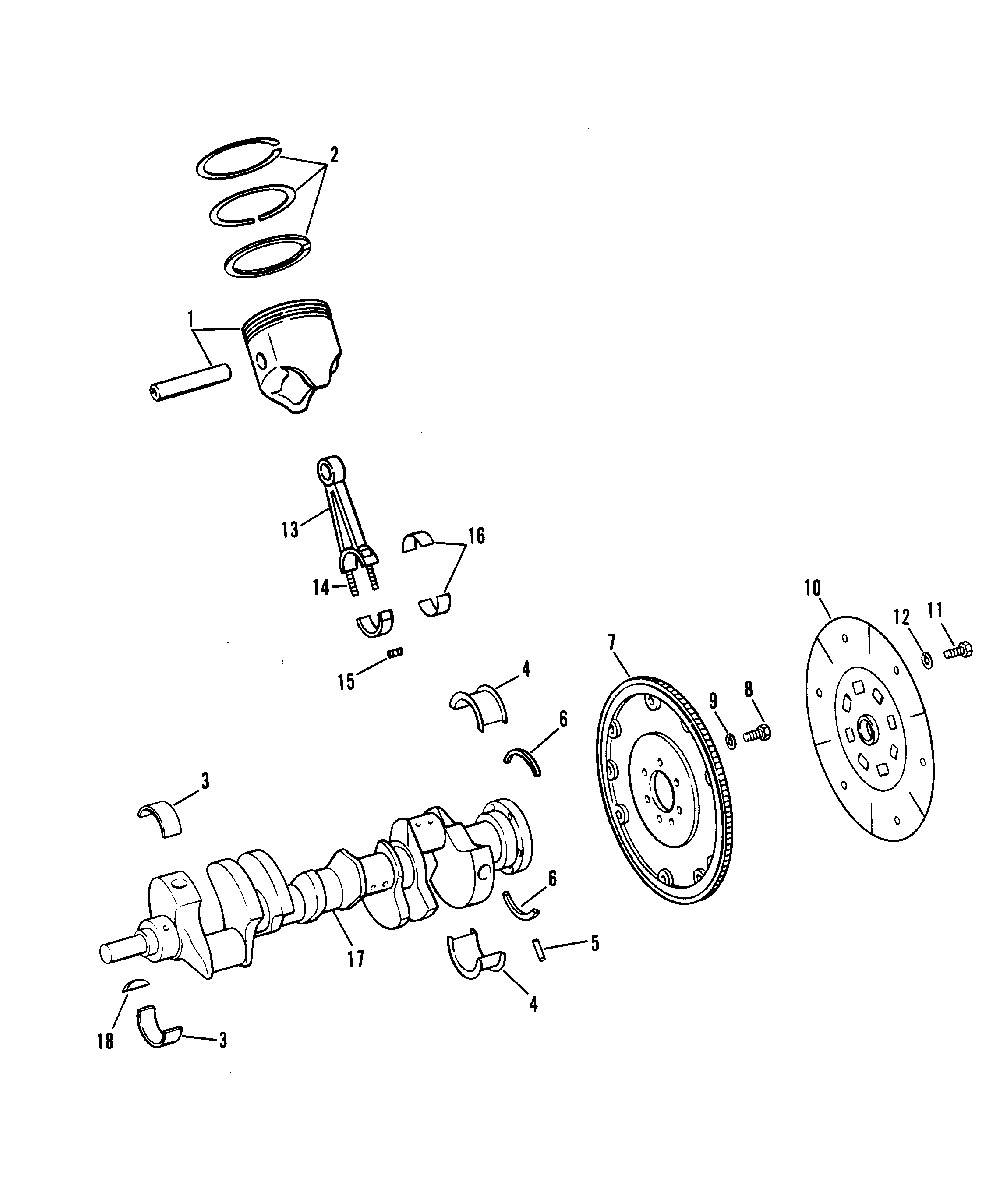

CRANKSHAFT, PISTONS AND CONN. RODS для Mercruiser - 5.7L (SKI) GM 350 V-8 1985-1987 0A338533 THRU 0B514626

  • №
    Артикул
    Название
  • 1
    735-850097 PISTON AND PISTON PIN ASSEMBLY (.001 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.001 O.S.)
  • 1
    735-850098 PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
  • 2
    39-17464 RING, PISTON - 8 SETS (STANDARD)
    RING, PISTON - 8 SETS (STANDARD)
  • 2
    39-17465 RING, PISTON - 8 SETS (.030 O.S.)
    RING, PISTON - 8 SETS (.030 O.S.)
  • 3
    23-818465 BEARING UNIT, CRANKSHAFT (STANDARD)
    BEARING UNIT, CRANKSHAFT (STANDARD)
  • 3
    23-818466 BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
  • 3
    23-818467 BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
  • 3
    23-818468 BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
  • 4
    23-818465 BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
  • 4
    23-818466 BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
  • 4
    23-818466 BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
  • 4
    23-818467 BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
  • 4
    23-818468 BEARING UNIT, CRANKSHAFT MAIN - RAR (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - RAR (.020 U.S.)
  • 5
    17-843378 PIN, DOWEL - REAR BEARING CAP (1/4" DIA.)
    PIN, DOWEL - REAR BEARING CAP (1/4" DIA.)
  • 6
    26-814622 OIL SEAL, REAR BEARING CAP (L.H. ROTATION) 2-PIECE
    OIL SEAL, REAR BEARING CAP (L.H. ROTATION) 2-PIECE
  • 6
    26-35313 OIL SEAL, REAR BEARING CAP (R.H. ROTATION) 2-PIECE
    OIL SEAL, REAR BEARING CAP (R.H. ROTATION) 2-PIECE
  • 7
    230-9425 FLYWHEEL (L.H. ROTATION - 14'DIA)
    FLYWHEEL (L.H. ROTATION - 14'DIA)
  • 7
    230-4614 FLYWHEEL (R.H. ROTATION - 12-3/4" DIA.)
    FLYWHEEL (R.H. ROTATION - 12-3/4" DIA.)
  • 7
    222-8M0047213 FLYWHEEL (L.H. ROTATION - 14" DIA.)
    FLYWHEEL (L.H. ROTATION - 14" DIA.)
  • 7
    200-8M0083286 FLYWHEEL (R.H. ROTATION - 14" DIA.)
    FLYWHEEL (R.H. ROTATION - 14" DIA.)
  • 8
    10-845757 SCREW, FLYWHEEL TO CRANKSHAFT
    SCREW, FLYWHEEL TO CRANKSHAFT
  • 9
    13-39131 LOCKWASHER, FLYWHEEL SCREW
    LOCKWASHER, FLYWHEEL SCREW
  • 10
    47608A1 DRIVE PLATE, FLYWHEEL
    DRIVE PLATE, FLYWHEEL
  • 11
    10-35091 SCREW, DRIVE PLATE TO FLYWHEEL
    SCREW, DRIVE PLATE TO FLYWHEEL
  • 12
    13-35048 LOCKWASHER, DRIVE PLATE SCREW
    LOCKWASHER, DRIVE PLATE SCREW
  • 13
    614-8164T CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 14
    10-85802 BOLT, CONNECTING ROD CAP
    BOLT, CONNECTING ROD CAP
  • 15
    11-37493 NUT, CONNECTING ROD CAP BOLT
    NUT, CONNECTING ROD CAP BOLT
  • 16
    23-85701 BEARING SET, CONNECTING ROD (STANDARD)
    BEARING SET, CONNECTING ROD (STANDARD)
  • 16
    23-85702 BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
  • 16
    23-85703 BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)
  • 16
    23-85704 BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
  • 16
    23-85705 BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)
  • 17
    429-6369 CRANKSHAFT (L.H. ROTATION)
    CRANKSHAFT (L.H. ROTATION)
  • 17
    429-6372 CRANKSHAFT (R.H. ROTATION)
    CRANKSHAFT (R.H. ROTATION)
  • 17
    429-9521T CRANKSHAFT (L.H. ROTATION)
    CRANKSHAFT (L.H. ROTATION)
  • 17
    429-9526 CRANKSHAFT (R.H. ROTATION)
    CRANKSHAFT (R.H. ROTATION)
  • 18
    28-34466 KEY, CRANKSHAFT PULLEY AND BALANCER
    KEY, CRANKSHAFT PULLEY AND BALANCER
