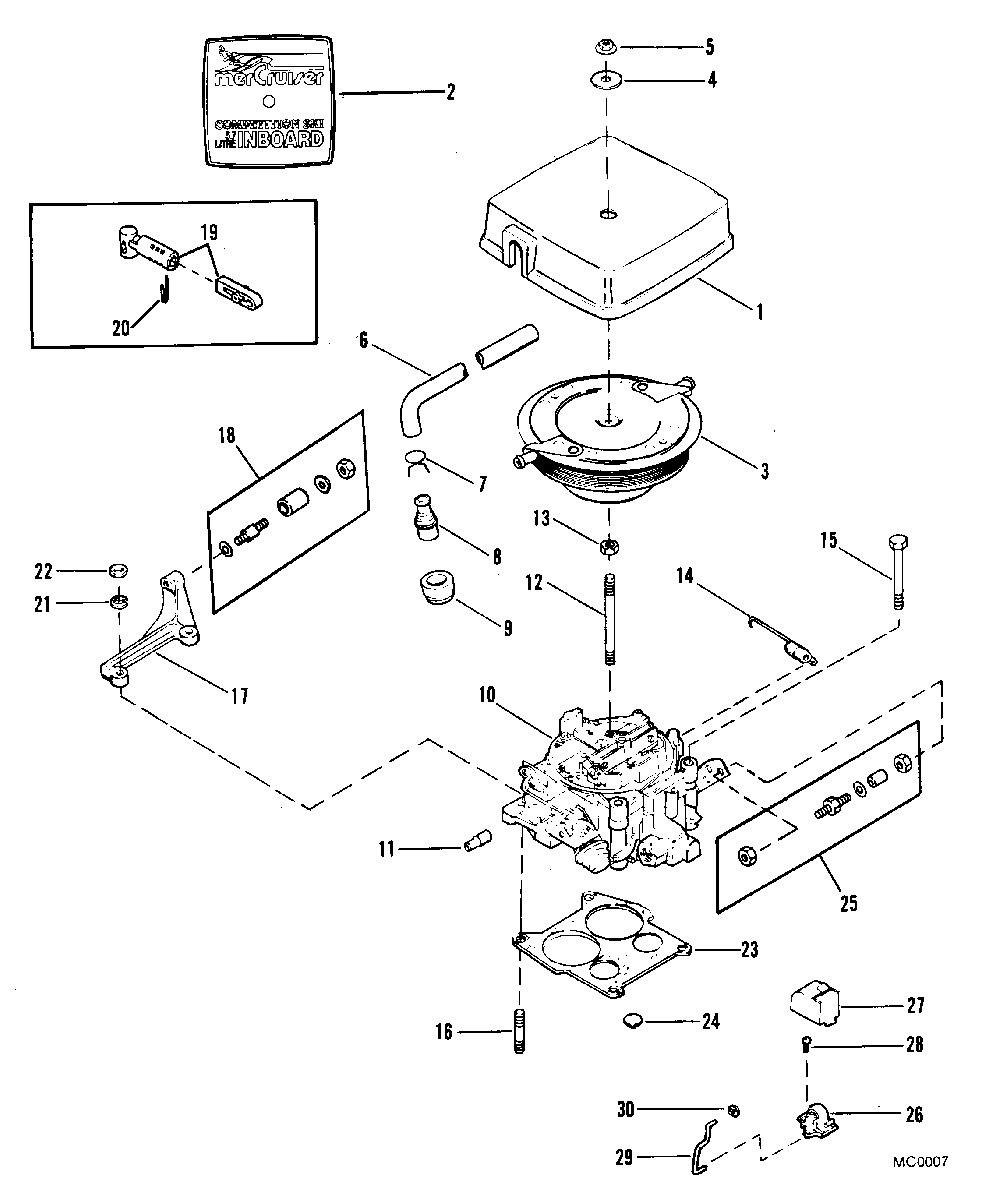

CARBURETOR AND THROTTLE LINKAGE для Mercruiser - 5.7L (SKI) GM 350 V-8 1985-1987 0A338533 THRU 0B514626

  • №
    Артикул
    Название
  • 1
    15414A7 COVER, CARBURETOR (PLASTIC)
    COVER, CARBURETOR (PLASTIC)
  • 2
    37-12501 DECAL, CARBURETOR COVER
    DECAL, CARBURETOR COVER
  • 3
    805298A1 FLAME ARRESTOR, CARBURETOR
    FLAME ARRESTOR, CARBURETOR
  • 4
    12-86400 WASHER, SEALING
    WASHER, SEALING
  • 5
    11-826709109 NUT, SILENCER ADAPTER
    NUT, SILENCER ADAPTER
  • 6
    32-8M0062669 HOSE, VENT - CARBURETOR (11-1/4")
    HOSE, VENT - CARBURETOR (11-1/4")
  • 7
    54-53101 CLAMP, VENT HOSE
    CLAMP, VENT HOSE
  • 8
    47957 CONNECTOR, VENT HOSE TO ROCKER COVER
    CONNECTOR, VENT HOSE TO ROCKER COVER
  • 9
    23-8M0071559 GROMMET, ROCKER COVER
    GROMMET, ROCKER COVER
  • 10
    1347-804624R02 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 11
    22-97282 CONNECTOR, CARBURETOR
    CONNECTOR, CARBURETOR
  • 12
    16-91842 STUD, FLAME ARRESTOR
    STUD, FLAME ARRESTOR
  • 13
    11-8267139 NUT, JAM - FLAME ARRESTOR
    NUT, JAM - FLAME ARRESTOR
  • 14
    24-897454 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 15
    10-74822 SCREW, CARBURETOR
    SCREW, CARBURETOR
  • 16
    16-53724 STUD, CARBURETOR
    STUD, CARBURETOR
  • 17
    41329A5 BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 18
    16-73563A1 STUD KIT, THROTTLE CABLE
    STUD KIT, THROTTLE CABLE
  • 19
    64-892790A01 ADAPTOR ASSEMBLY
    ADAPTOR ASSEMBLY
  • 20
    64-892790A01 CLIP, ADAPTOR
    CLIP, ADAPTOR
  • 21
    12-20084 WASHER, CARBURETOR STUD
    WASHER, CARBURETOR STUD
  • 22
    11-862902 NUT, CARBURETOR STUD
    NUT, CARBURETOR STUD
  • 23
    27-524572 GASKET, CARBURETOR TO INTAKE MANIFOLD
    GASKET, CARBURETOR TO INTAKE MANIFOLD
  • 24
    22-12524 PLUG, INTAKE MANIFOLD VACUUM HOLE
    PLUG, INTAKE MANIFOLD VACUUM HOLE
  • 25
    16-97477A3 STUD KIT, THROTTLE CABLE
    STUD KIT, THROTTLE CABLE
  • 26
    71464A01 CHOKE, AUTOMATIC - CARBURETOR
    CHOKE, AUTOMATIC - CARBURETOR
  • 27
    63922 COVER, AUTOMATIC CHOKE
    COVER, AUTOMATIC CHOKE
  • 28
    10-69235 SCREW, AUTOMATIC CHOKE THERMOSTAT
    SCREW, AUTOMATIC CHOKE THERMOSTAT
  • 29
    61112 LEVER, CHOKE
    LEVER, CHOKE
  • 30
    54-59989 CLIP, AUTOMATIC CHOKE ROD
    CLIP, AUTOMATIC CHOKE ROD
