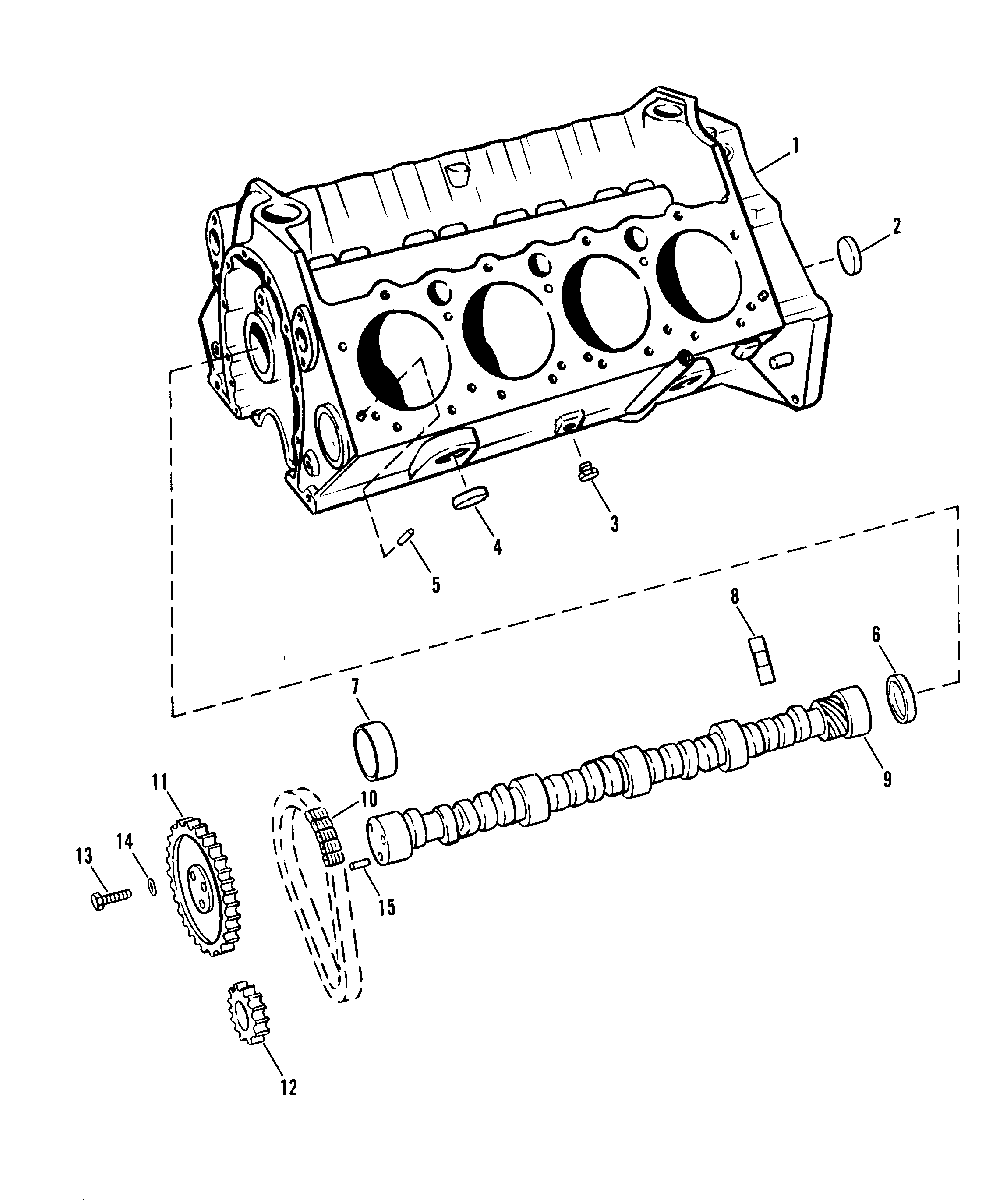

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 5.7L (SKI) GM 350 V-8 1985-1987 0A338533 THRU 0B514626

  • №
    Артикул
    Название
  • 1
    841-8163 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 1
    841-9549 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    22-32561 PLUG, EXPANSION - CYLINDER BLOCK (1-1/4")
    PLUG, EXPANSION - CYLINDER BLOCK (1-1/4")
  • 3
    22-16951Q1 DRAIN COCK, CYLINDER BLOCK
    DRAIN COCK, CYLINDER BLOCK
  • 4
    19-34270 PLUG, EXPANSION - CYLINDER BLOCK (1-5/8" DIA)
    PLUG, EXPANSION - CYLINDER BLOCK (1-5/8" DIA)
  • 5
    17-35465 PIN, DOWEL - BLOCK TO HEAD (5/16" DIA.)
    PIN, DOWEL - BLOCK TO HEAD (5/16" DIA.)
  • 6
    22-72640 PLUG, EXPANSION - CAMSHAFT BEARING HOLE
    PLUG, EXPANSION - CAMSHAFT BEARING HOLE
  • 7
    23-85674 BEARING UNIT, CAMSHAFT (SET)
    BEARING UNIT, CAMSHAFT (SET)
  • 8
    72638 LIFTER, HYDRAULIC VALVE - TAPPET
    LIFTER, HYDRAULIC VALVE - TAPPET
  • 9
    431-5943 CAMSHAFT (L.H. ROTATION)
    CAMSHAFT (L.H. ROTATION)
  • 9
    431-884035 CAMSHAFT (R.H. ROTATION)
    CAMSHAFT (R.H. ROTATION)
  • 10
    35378 CHAIN, CAMSHAFT TIMING (L.H. ROTATION)
    CHAIN, CAMSHAFT TIMING (L.H. ROTATION)
  • 11
    17161A1 SPROCKET, CAMSHAFT (L.H. ROTATION)
    SPROCKET, CAMSHAFT (L.H. ROTATION)
  • 11/12
    43-14324 GEAR SET, CAMSHAFT/CRANKSHAFT (R.H. ROTATION)
    GEAR SET, CAMSHAFT/CRANKSHAFT (R.H. ROTATION)
  • 12
    17161A1 SPROCKET, CRANKSHAFT TIMING (L.H. ROTATION)
    SPROCKET, CRANKSHAFT TIMING (L.H. ROTATION)
  • 13
    10-34505 BOLT, CAMSHAFT TIMING SPROCKETS (3/4")
    BOLT, CAMSHAFT TIMING SPROCKETS (3/4")
  • 14
    12-848136 WASHER, CAMSHAFT TIMING SPROCKET BOLT
    WASHER, CAMSHAFT TIMING SPROCKET BOLT
  • 15
    17-843378 PIN, DOWEL - CAMSHAFT SPROCKET (1/4" DIA.)
    PIN, DOWEL - CAMSHAFT SPROCKET (1/4" DIA.)
