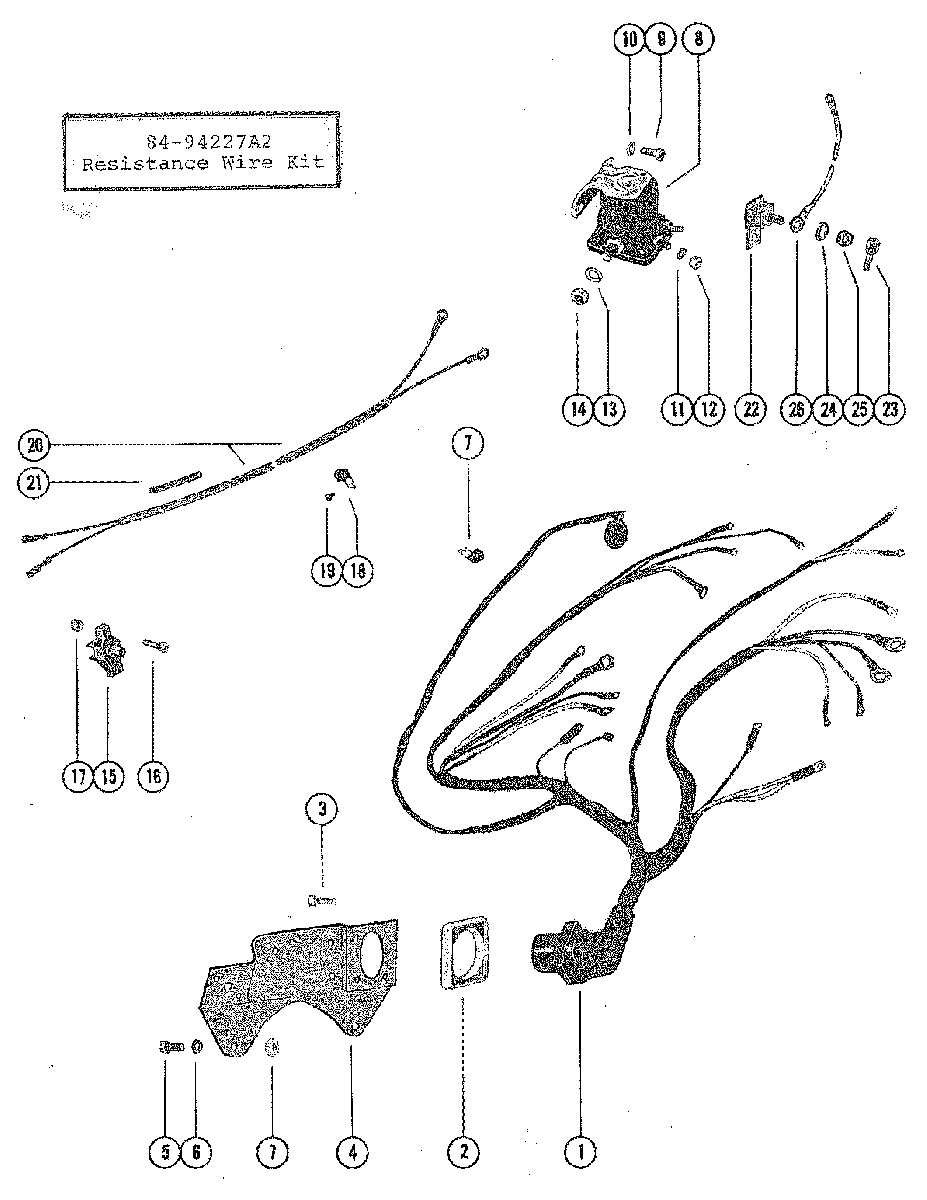

WIRING HARNESS, CIRCUIT BREAKER AND STARTER SOLENOID для Mercruiser - 255 MIE GM 350 V-8 1979-1980 5195909 THRU 5907057

  • №
    Артикул
    Название
  • 1
    84-70959A2 WIRING HARNESS (FUSED ENGINES)
    WIRING HARNESS (FUSED ENGINES)
  • 1
    84-86677A04 WIRING HARNESS (NON FUSED ENGINES)
    WIRING HARNESS (NON FUSED ENGINES)
  • 2
    26079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKET
    PLATE, WIRING HARNESS TO MOUNTING BRACKET
  • 3
    10-46718 SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
    SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
  • 4
    87090T BRACKET, MOUNTING - HARNESS AND CIRCUIT BREAKER
    BRACKET, MOUNTING - HARNESS AND CIRCUIT BREAKER
  • 5
    10-47461 SCREW, MOUNTING BRACKET ATTACHING (1")
    SCREW, MOUNTING BRACKET ATTACHING (1")
  • 6
    13-32993 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 7
    64884 TAB, WIRING HARNESS (USED WITH B-84-70959A2)
    TAB, WIRING HARNESS (USED WITH B-84-70959A2)
  • 7
    54-55098 "J" CLIP (USED WITH B-84-86672A2)
    "J" CLIP (USED WITH B-84-86672A2)
  • 8
    89-853654A1 STARTER SOLENOID
    STARTER SOLENOID
  • 9
    10-69054 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
    SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
  • 10
    13-26992 LOCKWASHER, STARTER SOLENOID SCREW
    LOCKWASHER, STARTER SOLENOID SCREW
  • 11
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 12
    11-68219 NUT, STARTER SOLENOID TERMINAL (10-32)
    NUT, STARTER SOLENOID TERMINAL (10-32)
  • 13
    13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
  • 14
    11-68292 NUT, STARTER SOLENOID TERMINAL (5/16")
    NUT, STARTER SOLENOID TERMINAL (5/16")
  • 15
    88-11178A01 CIRCUIT BREAKER
    CIRCUIT BREAKER
  • --
    11-68219 NUT, CIRCUIT BREAKER TERMINAL
    NUT, CIRCUIT BREAKER TERMINAL
  • --
    13-26996 LOCKWASHER, CIRCUIT BREAKER TERMINAL
    LOCKWASHER, CIRCUIT BREAKER TERMINAL
  • 16
    10-24637 SCREW, CIRCUIT BREAKER TO BRACKET (7/8")
    SCREW, CIRCUIT BREAKER TO BRACKET (7/8")
  • 17
    11-46438 NUT, CIRCUIT BREAKER SCREW
    NUT, CIRCUIT BREAKER SCREW
  • 18
    54-73668 "J" CLIP, WIRING HARNESS - MAIN HARNESS LEAD
    "J" CLIP, WIRING HARNESS - MAIN HARNESS LEAD
  • 18
    54-54178 "J" CLIP, WIRING HARNESS - TEMPERATURE SENDER LEAD
    "J" CLIP, WIRING HARNESS - TEMPERATURE SENDER LEAD
  • 19
    10-98259 SCREW, "J" CLIP ATTACHING (1/2")
    SCREW, "J" CLIP ATTACHING (1/2")
  • 20
    84-78581A1 HARNESS ASSEMBLY, ALTERNATOR
    - USED WITH FUSED ENGINES
    HARNESS ASSEMBLY, ALTERNATOR
    - USED WITH FUSED ENGINES
  • 21
    5790811 SLEEVE, ALTERNATOR HARNESS
    - USED WITH FUSED ENGINES
    SLEEVE, ALTERNATOR HARNESS
    - USED WITH FUSED ENGINES
  • 22
    88-79023T90 FUSE ASSEMBLY, SOLENOID
    - USED WITH FUSED ENGINES
    FUSE ASSEMBLY, SOLENOID
    - USED WITH FUSED ENGINES
  • 23
    85-79695T INSULATOR BOOT, HARNESS LEAD TO FUSE
    - USED WITH FUSED ENGINES
    INSULATOR BOOT, HARNESS LEAD TO FUSE
    - USED WITH FUSED ENGINES
  • 24
    13-24669 LOCKWASHER, LEAD TO FUSE STUD NUT
    - USED WITH FUSED ENGINES
    LOCKWASHER, LEAD TO FUSE STUD NUT
    - USED WITH FUSED ENGINES
  • 25
    11-21825 NUT, LEAD TO FUSE STUD
    - USED WITH FUSED ENGINES
    NUT, LEAD TO FUSE STUD
    - USED WITH FUSED ENGINES
  • 26
    84-79139A7 WIRING ASSEMBLY, FUSE TO CIRCUIT BREAKER
    - USED WITH FUSED ENGINES
    WIRING ASSEMBLY, FUSE TO CIRCUIT BREAKER
    - USED WITH FUSED ENGINES
