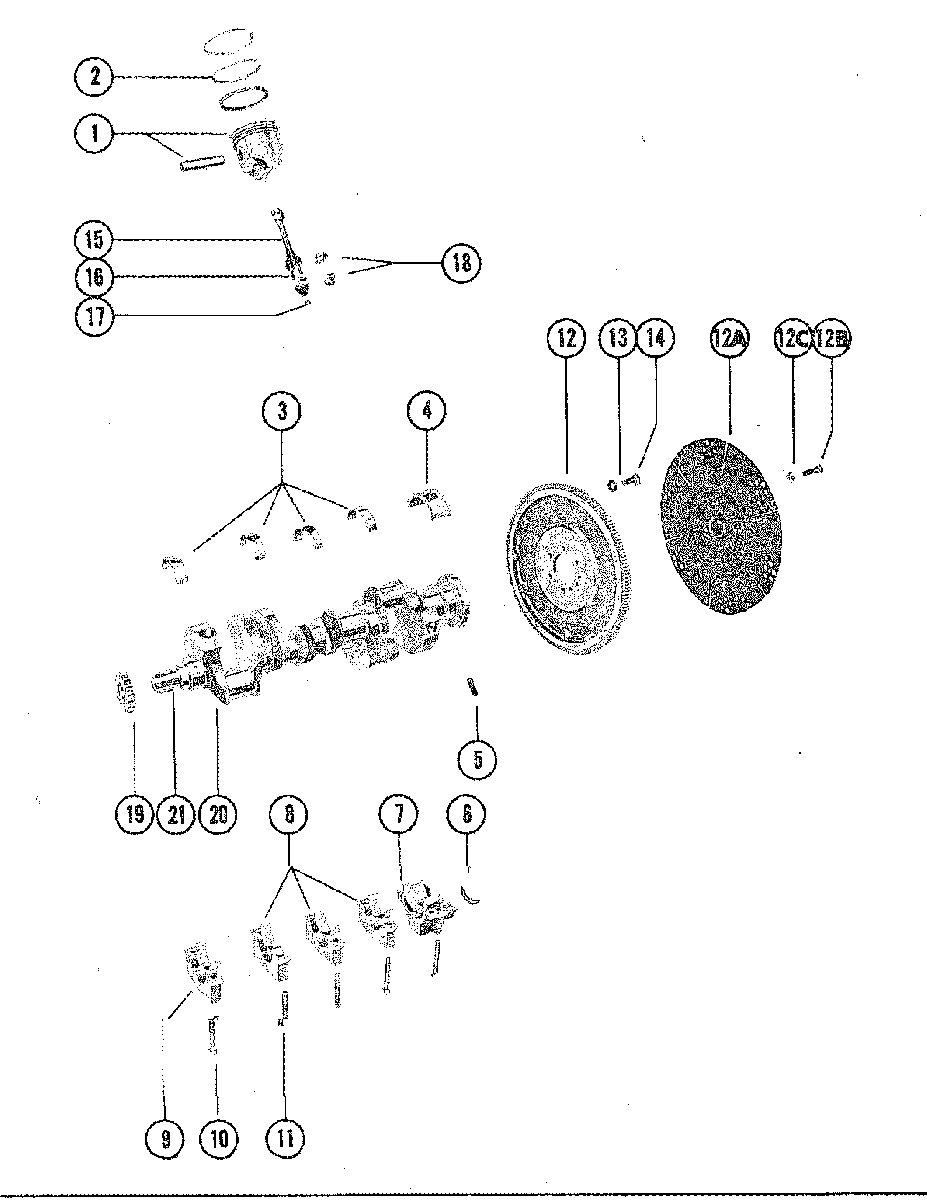

CRANKSHAFT AND PISTONS для Mercruiser - 255 MIE GM 350 V-8 1979-1980 5195909 THRU 5907057

  • №
    Артикул
    Название
  • 1
    735-850097 PISTON AND PISTON PIN ASSEMBLY (.001 O.S.) - USE STD. RING
    PISTON AND PISTON PIN ASSEMBLY (.001 O.S.) - USE STD. RING
  • 1
    735-850098 PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
  • 2
    39-17464 RING, PISTON - 8 SETS (STANDARD)
    RING, PISTON - 8 SETS (STANDARD)
  • 2
    39-17465 RING, PISOTN - 8 SETS (.030 O.S.)
    RING, PISOTN - 8 SETS (.030 O.S.)
  • 3
    23-818465 BEARING UNTI (PAIR), CRANKSHAFT (STANDARD)
    BEARING UNTI (PAIR), CRANKSHAFT (STANDARD)
  • 3
    23-818466 BEARING UNIT (PAIR), CRANKSHAFT (.001 U.S.)
    BEARING UNIT (PAIR), CRANKSHAFT (.001 U.S.)
  • 3
    23-818467 BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
  • 3
    23-818468 BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
  • 4
    23-818465 BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
  • 4
    23-818466 BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
  • 4
    23-818467 BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
  • 4
    23-818468 BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
  • 5
    17-24813 PIN, DOWEL - REAR CRANKSHAFT BEARING CAP (1/4"DIA.)
    PIN, DOWEL - REAR CRANKSHAFT BEARING CAP (1/4"DIA.)
  • 6
    26-814622 OIL SEAL. REAR BEARING CAP (L.H. ROTATION)
    OIL SEAL. REAR BEARING CAP (L.H. ROTATION)
  • 6
    26-35313 OIL SEAL, REAR BEARING CAP (R.H. ROTATION)
    OIL SEAL, REAR BEARING CAP (R.H. ROTATION)
  • 7
    52217 CAP, REAR - CRANKSHAFT BEARING
    CAP, REAR - CRANKSHAFT BEARING
  • 9
    54789 CAP, FRONT AND INTERMEDIATE - CRANKSHAFT BEARING
    CAP, FRONT AND INTERMEDIATE - CRANKSHAFT BEARING
  • 10
    10-54788 BOLT, CRANKSHAFT BEARING CAP TO CYL. BLOCK (2 31/32")
    BOLT, CRANKSHAFT BEARING CAP TO CYL. BLOCK (2 31/32")
  • 10
    8M0102366 BOLT, CRANKSHAFT BEARING CAP TO CYL. BLOCK (2 1/2")
    BOLT, CRANKSHAFT BEARING CAP TO CYL. BLOCK (2 1/2")
  • 11
    16-54790 STUD, OIL PAN BAFFLE ATTACHING
    STUD, OIL PAN BAFFLE ATTACHING
  • --
    17-843378 PIN, DOWEL - CRANKCASE FRONT END COVER AND OIL PUMP
    PIN, DOWEL - CRANKCASE FRONT END COVER AND OIL PUMP
  • 12
    230-4614 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 12A
    47608A1 DRIVE PLATE, FLYWHEEL
    DRIVE PLATE, FLYWHEEL
  • 12B
    10-35091 SCREW, DRIVE PLATE TO FLYWHEEL
    SCREW, DRIVE PLATE TO FLYWHEEL
  • 12C
    13-35048 LOCKWASHER, DRIVE PLATE SCREW
    LOCKWASHER, DRIVE PLATE SCREW
  • 13
    13-39131 LOCKWASHER, FLYWHEEL SCREW
    LOCKWASHER, FLYWHEEL SCREW
  • 14
    10-845757 SCREW, FLYWHEEL TO CRANKSHAFT
    SCREW, FLYWHEEL TO CRANKSHAFT
  • 15
    614-8164T CONNECTING ROD ASSEMBLY
    SERIAL 00000000-05522209
    CONNECTING ROD ASSEMBLY
    SERIAL 00000000-05522209
  • 15
    614-8164T CONNECTING ROD ASSEMBLY
    SERIAL 05522210-09999999
    CONNECTING ROD ASSEMBLY
    SERIAL 05522210-09999999
  • 16
    10-85802 BOLT, CONNECTING ROD CAP
    BOLT, CONNECTING ROD CAP
  • 17
    11-37493 NUT, CONNECTING ROD CAP BOLT
    NUT, CONNECTING ROD CAP BOLT
  • 18
    23-85701 BEARING SET (4 PAIR), CONNECTING ROD (STANDARD)
    BEARING SET (4 PAIR), CONNECTING ROD (STANDARD)
  • 18
    23-85702 BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
  • 18
    23-85703 BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
  • 18
    23-85705 BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)
  • 19
    17161A1 SPROCKET, TIMING (22 TEETH) - L.H. ROTATION
    SPROCKET, TIMING (22 TEETH) - L.H. ROTATION
  • 19
    43-14324 SPROCKET, TIMING (22 TEETH) - R.H. ROTATION
    SPROCKET, TIMING (22 TEETH) - R.H. ROTATION
  • 20
    429-6369 CRANKSHAFT (L.H. ROTATION)
    CRANKSHAFT (L.H. ROTATION)
  • 20
    429-6372 CRANKSHAFT (R.H. ROTATION)
    CRANKSHAFT (R.H. ROTATION)
  • 21
    28-34466 KEY, CRANKSHAFT PULLEY AND BALANCER
    KEY, CRANKSHAFT PULLEY AND BALANCER
