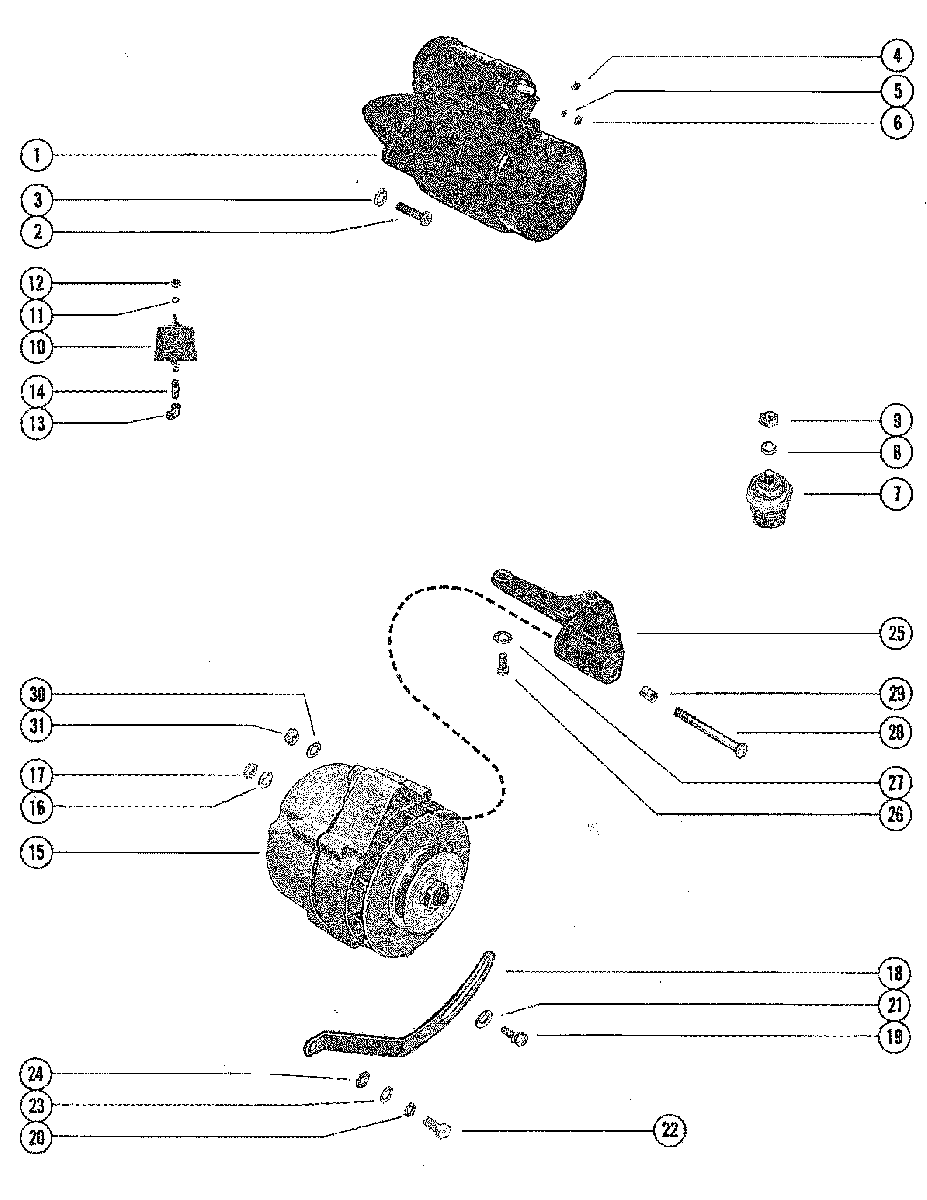

STARTER MOTOR AND ALTERNATOR для Mercruiser - 255 MIE GM 350 V-8 1979-1980 5195909 THRU 5907057

  • №
    Артикул
    Название
  • 1
    50-808011A05 STARTER MOTOR ASS'Y(DELCO REMY #1109485)-L.H. ROTATION
    STARTER MOTOR ASS'Y(DELCO REMY #1109485)-L.H. ROTATION
  • 1
    50-97499R3 STARTER MOTOR ASS'Y(DELCO REMY #1109484)-R.H. ROTATION
    STARTER MOTOR ASS'Y(DELCO REMY #1109484)-R.H. ROTATION
  • 2
    10-47462 SCREW, STARTER MOTOR TO CYLINDER BLOCK (1 1/4")
    SCREW, STARTER MOTOR TO CYLINDER BLOCK (1 1/4")
  • 3
    13-32993 LOCKWASHER, STARTER MOTOR SCREW
    LOCKWASHER, STARTER MOTOR SCREW
  • 4
    11-32219 NUT, STARTER TERMINAL (3/8")
    NUT, STARTER TERMINAL (3/8")
  • 5
    13-26995 LOCKWASHER, STARTER TERMINAL (#8)
    LOCKWASHER, STARTER TERMINAL (#8)
  • 6
    11-26419 NUT, STARTER TERMINAL (#8)
    NUT, STARTER TERMINAL (#8)
  • 7
    97258A1 WATER TEMPERATURE SENDER ASSEMBLY
    WATER TEMPERATURE SENDER ASSEMBLY
  • 8
    13-26996 LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
    LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 9
    11-68219 NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
    NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 10
    8M0068784 OIL PRESSURE SENDER ASSEMBLY
    OIL PRESSURE SENDER ASSEMBLY
  • 11
    13-26996 LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
    LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
  • 12
    11-68219 NUT, OIL PRESSURE SENDER TERMINAL (#10)
    NUT, OIL PRESSURE SENDER TERMINAL (#10)
  • 13
    22-46932 ELBOW, OIL PRESSURE SENDER
    ELBOW, OIL PRESSURE SENDER
  • 14
    22-38992 NIPPLE, OIL PRESSURE SENDER
    NIPPLE, OIL PRESSURE SENDER
  • 15
    78403A2 ALTERNATOR ASSEMBLY(MOTOROLA #8MR2023F)
    ALTERNATOR ASSEMBLY(MOTOROLA #8MR2023F)
  • 16
    13-26996 LOCKWASHER, ALTERNATOR TERMINAL NUT
    LOCKWASHER, ALTERNATOR TERMINAL NUT
  • 16
    13-26992 LOCKWASHER, ALTERNATOR TERMINAL NUT
    LOCKWASHER, ALTERNATOR TERMINAL NUT
  • 17
    11-30968 NUT, ALTERNATOR TERMINAL (10-24)
    NUT, ALTERNATOR TERMINAL (10-24)
  • 17
    11-20890 NUT, ALTERNATOR TERMINAL (1/4-20)
    NUT, ALTERNATOR TERMINAL (1/4-20)
  • 18
    85013T BRACE, ALTERNATOR ADJUSTING
    BRACE, ALTERNATOR ADJUSTING
  • 19
    10-29198 SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")
    SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")
  • 20
    13-39107 LOCKWASHER, ALTERNATOR BRACE SCREW
    LOCKWASHER, ALTERNATOR BRACE SCREW
  • 21
    12-26168 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 22
    10-98261 SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (3/4")
    SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (3/4")
  • 23
    13-35048 LOCKWASHER, ALTERNATOR BRACE SCREW
    LOCKWASHER, ALTERNATOR BRACE SCREW
  • 24
    12-20553 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 25
    48104A1 BRACKET, ALTERNATOR MOUNTING
    BRACKET, ALTERNATOR MOUNTING
  • 26
    10-76926 SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (7/8")
    SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (7/8")
  • 27
    13-35048 LOCKWASHER, ALTERNATOR BRACKET SCREW
    LOCKWASHER, ALTERNATOR BRACKET SCREW
  • 28
    10-48308 SCREW, ALTERNATOR TO ALTERNATOR BRACKET (3 3/4")
    SCREW, ALTERNATOR TO ALTERNATOR BRACKET (3 3/4")
  • 29
    23-33186 BUSHING, ALTERNATOR TO BRACKET SCREW
    BUSHING, ALTERNATOR TO BRACKET SCREW
  • 30
    12-20553 WASHER, ALTERNATOR BRACKET SCREW
    WASHER, ALTERNATOR BRACKET SCREW
  • 31
    11-23161 NUT, ALTERNATOR BRACKET SCREW
    NUT, ALTERNATOR BRACKET SCREW
