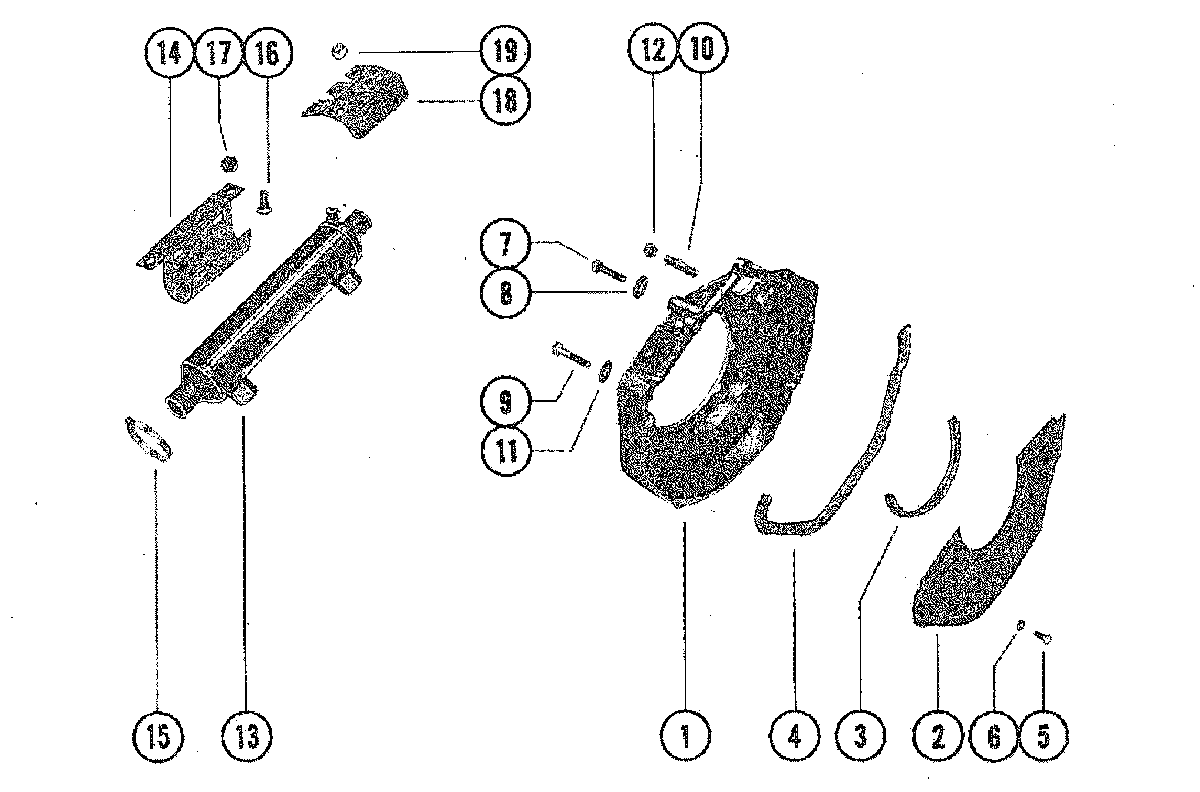

FLYWHEEL HOUSING AND OIL COOLER для Mercruiser - 255 MIE GM 350 V-8 1979-1980 5195909 THRU 5907057

  • №
    Артикул
    Название
  • 1
    814309A1 HOUSING, FLYWHEEL
    HOUSING, FLYWHEEL
  • 2
    818718A4 COVER ASSEMBLY, FLYWHEEL HOUSING
    COVER ASSEMBLY, FLYWHEEL HOUSING
  • 3
    87690 SEAL, FLYWHEEL HOUSING COVER
    SEAL, FLYWHEEL HOUSING COVER
  • 4
    27-86015 GASKET, FLYWHEEL HOUSING COVER
    GASKET, FLYWHEEL HOUSING COVER
  • 5
    10-98253 SCREW, COVER TO FLYWHEEL HOUSING (1/2")
    SCREW, COVER TO FLYWHEEL HOUSING (1/2")
  • 6
    13-26992 LOCKWASHER, COVER SCREW
    LOCKWASHER, COVER SCREW
  • 7
    10-34353 SCREW, HOUSING TO ENGINE (1")
    SCREW, HOUSING TO ENGINE (1")
  • 8
    13-35048 LOCKWASHER, HOUSING SCREW
    LOCKWASHER, HOUSING SCREW
  • 9
    10-63826 SCREW, FLYWHEEL HOUSING TO ENGINE (2 1/2")
    SCREW, FLYWHEEL HOUSING TO ENGINE (2 1/2")
  • 9
    10-48424 SCREW, FLYWHEEL HOUSING TO ENGINE (1 5/8")
    SCREW, FLYWHEEL HOUSING TO ENGINE (1 5/8")
  • 10
    16-861316 STUD, FLYWHEEL HOUSING TO ENGINE (2 1/4")
    STUD, FLYWHEEL HOUSING TO ENGINE (2 1/4")
  • 11
    12-20572 WASHER, FLYWHEEL HOUSING TO ENGINE SCREW
    WASHER, FLYWHEEL HOUSING TO ENGINE SCREW
  • 12
    11-32219 NUT, FLYWHEEL STUD
    NUT, FLYWHEEL STUD
  • 13
    63832A1 COOLER, OIL (9")
    COOLER, OIL (9")
  • 13
    63832T COOLER, OIL (12") - V-DRIVE ONLY
    COOLER, OIL (12") - V-DRIVE ONLY
  • 14
    49748A1 BRACKET ASSEMBLY, OIL COOLER
    BRACKET ASSEMBLY, OIL COOLER
  • 15
    54-815504228 CLAMP, OIL COOLER TO BRACKET
    CLAMP, OIL COOLER TO BRACKET
  • 16
    10-98261 SCREW, OIL COOLER BRACKET (3/4")
    SCREW, OIL COOLER BRACKET (3/4")
  • 17
    11-52412 NUT, OIL COOLER BRACKET SCREW
    NUT, OIL COOLER BRACKET SCREW
  • 18
    49735A1 BRACKET, OIL COOLER
    BRACKET, OIL COOLER
  • 19
    23-905201 SPACER, OIL COOLER BRACKET
    SPACER, OIL COOLER BRACKET
