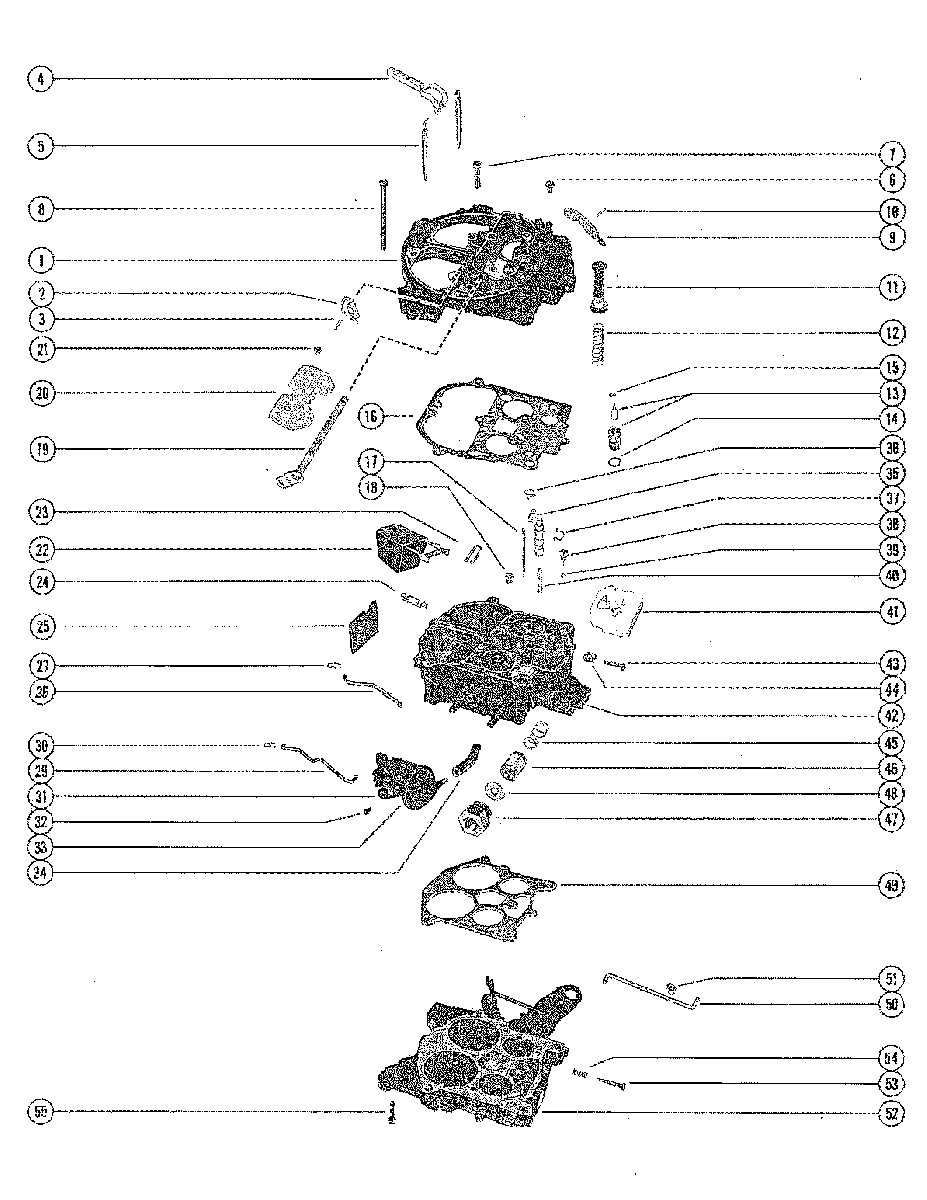

CARBURETOR ASSEMBLY, COMPLETE для Mercruiser - 255 MIE GM 350 V-8 1979-1980 5195909 THRU 5907057

  • №
    Артикул
    Название
  • -
    1347-804624R02 CARBURETOR ASSEMBLY, COMPLETE
    CARBURETOR ASSEMBLY, COMPLETE
  • 1
    N.S.S. AIR HORN ASSEMBLY (ROCHESTER #17051603)
    AIR HORN ASSEMBLY (ROCHESTER #17051603)
  • 2
    N.S.S. LEVER, AIR VALVE LOCKOUT (ROCHESTER #7037968)
    LEVER, AIR VALVE LOCKOUT (ROCHESTER #7037968)
  • 3
    90-8M0143356 ROLL PIN, LOCKOUT LEVER
    ROLL PIN, LOCKOUT LEVER
  • 4
    N.S.S. HOLDER KIT, SECONDARY METERING ROD (ROCHESTER #7034522)
    HOLDER KIT, SECONDARY METERING ROD (ROCHESTER #7034522)
  • 5
    N.S.S. METERING ROD, SECONDARY (ROCHESTER #7045779)
    METERING ROD, SECONDARY (ROCHESTER #7045779)
  • 6
    N.S.S. SCREW, AIR HORN TO FLOAT BOWL (3/8") - ROCHESTER #7031105
    SCREW, AIR HORN TO FLOAT BOWL (3/8") - ROCHESTER #7031105
  • 7
    N.S.S. SCREW, AIR HORN TO FLOAT BOWL (1") - ROCHESTER #7014699
    SCREW, AIR HORN TO FLOAT BOWL (1") - ROCHESTER #7014699
  • 8
    N.S.S. SCREW, AIR HORN TO FLOAT BOWL (3") - ROCHESTER #7029912
    SCREW, AIR HORN TO FLOAT BOWL (3") - ROCHESTER #7029912
  • 9
    N.S.S. LEVER, ACTUATING - PUMP (ROCHESTER #7048169)
    LEVER, ACTUATING - PUMP (ROCHESTER #7048169)
  • 10
    90-8M0143356 ROL PIN, HINGE - PUMP LEVER
    ROL PIN, HINGE - PUMP LEVER
  • 11
    90-8M0143356 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 12
    90-8M0143356 SPRING, PUMP RETURN
    SPRING, PUMP RETURN
  • 13
    90-8M0143356 NEEDLE AND SEAT ASSEMBLY
    NEEDLE AND SEAT ASSEMBLY
  • 14
    90-8M0143356 GASKET, NEEDLE AND SEAT
    GASKET, NEEDLE AND SEAT
  • 15
    90-8M0143356 PULL CLIP, FLOAT NEEDLE
    PULL CLIP, FLOAT NEEDLE
  • 16
    90-8M0143356 GASKET, AIR HORN
    GASKET, AIR HORN
  • 17
    90-8M0143356 METERING ROD, PROMARY
    METERING ROD, PROMARY
  • 18
    90-8M0143356 JET, PRIMARY
    JET, PRIMARY
  • 19
    N.S.S. CHOKE SHAFT AND LEVER ASSEMBLY (ROCHESTER #7036059)
    CHOKE SHAFT AND LEVER ASSEMBLY (ROCHESTER #7036059)
  • 20
    N.S.S. VALVE, CHOKE - CHOKE SHAFT ( ROCHESTER #7036021)
    VALVE, CHOKE - CHOKE SHAFT ( ROCHESTER #7036021)
  • 21
    N.S.S. SCREW, CHOKE VALVE TO CHOKE SHAFT (ROCHESTER #7029866)
    SCREW, CHOKE VALVE TO CHOKE SHAFT (ROCHESTER #7029866)
  • 22
    1397-3327 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 23
    N.S.S. PIN, HINGE - FLOAT (ROCHESTER #7029856)
    PIN, HINGE - FLOAT (ROCHESTER #7029856)
  • 24
    N.S.S. LEVER, INTERMEDIATE CHOKE (ROCHESTER #7031231)
    LEVER, INTERMEDIATE CHOKE (ROCHESTER #7031231)
  • 25
    N.S.S. BAFFLE, FLOAT BOWL (ROCHESTER #7031365)
    BAFFLE, FLOAT BOWL (ROCHESTER #7031365)
  • 26
    N.S.S. ROD, CHOKE (ROCHESTER #7031394)
    ROD, CHOKE (ROCHESTER #7031394)
  • 27
    90-8M0143356 CLIP, CHOKE ROD
    CLIP, CHOKE ROD
  • 29
    N.S.S. ROD, VACUUM CONTROL (ROCHESTER #7038167)
    ROD, VACUUM CONTROL (ROCHESTER #7038167)
  • 30
    90-8M0143356 CLIP, VACUUM CONTROL ROD
    CLIP, VACUUM CONTROL ROD
  • 31
    N.S.S. BRACKET ASSEMBLY, VACUUM CONTROL (ROCHESTER #17060265)
    BRACKET ASSEMBLY, VACUUM CONTROL (ROCHESTER #17060265)
  • 32
    N.S.S. SCREW, VACUUM CONTROL BRAKCET TO FLOAT BOWL (ROCHESTER #703)
    SCREW, VACUUM CONTROL BRAKCET TO FLOAT BOWL (ROCHESTER #703)
  • 33
    1397-3317 CONTROL ASSEMBLY, VACUUM
    CONTROL ASSEMBLY, VACUUM
  • 34
    N.S.S. HOSE, VACUUM (ROCHESTER #7026339)
    HOSE, VACUUM (ROCHESTER #7026339)
  • 35
    N.S.S. POWER PISTON ASSEMBLY (ROCHESTER #7034637)
    POWER PISTON ASSEMBLY (ROCHESTER #7034637)
  • 36
    N.S.S. SPRING, METERING ROD - PRIMARY (ROCHESTER #7029862)
    SPRING, METERING ROD - PRIMARY (ROCHESTER #7029862)
  • 37
    N.S.S. RETAINER, POWER PISTON (ROCHESTER #7034339)
    RETAINER, POWER PISTON (ROCHESTER #7034339)
  • 38
    N.S.S. RETAINER, PUMP DISCHARGE BALL (ROCHESTER #7029849)
    RETAINER, PUMP DISCHARGE BALL (ROCHESTER #7029849)
  • 39
    90-8M0143356 BALL, PUMP DISCHARGE
    BALL, PUMP DISCHARGE
  • 40
    24-48141 SPRING, POWER PISTON
    SPRING, POWER PISTON
  • 41
    N.S.S. INSERT, FLOAT BOWL (ROCHESTER #7034361)
    INSERT, FLOAT BOWL (ROCHESTER #7034361)
  • 42
    N.S.S. FLOAT BOWL ASSEMBLY (ROCHESTER #7041584)
    FLOAT BOWL ASSEMBLY (ROCHESTER #7041584)
  • 43
    N.S.S. SCREW, IDLE STOP (ROCHESTER #7002121)
    SCREW, IDLE STOP (ROCHESTER #7002121)
  • 44
    N.S.S. SPRING, IDLE STOP SCREW (ROCHESTER #7003176)
    SPRING, IDLE STOP SCREW (ROCHESTER #7003176)
  • 45
    3302-9032 SPRING, FILTER NUT
    SPRING, FILTER NUT
  • 46
    35-53336Q FILTER, FUEL INLET
    FILTER, FUEL INLET
  • 47
    1397-3330 NUT, FILTER - FUEL INLET
    NUT, FILTER - FUEL INLET
  • 48
    90-8M0143356 GASKET, FILTER NUT
    GASKET, FILTER NUT
  • 49
    90-8M0143356 GASKET, THROTTLE BODY
    GASKET, THROTTLE BODY
  • 50
    N.S.S. ROD, PUMP (ROCHESTER #7026138)
    ROD, PUMP (ROCHESTER #7026138)
  • 51
    90-8M0143356 CLIP, PUMP ROD
    CLIP, PUMP ROD
  • 52
    N.S.S. THROTTLE BODY ASSEMBLY (ROCHESTER #7044819)
    THROTTLE BODY ASSEMBLY (ROCHESTER #7044819)
  • 53
    90-8M0143356 IDLE NEEDLE, THROTTLE BODY
    IDLE NEEDLE, THROTTLE BODY
  • 54
    24-87734 SPRING, IDLE NEEDLE
    SPRING, IDLE NEEDLE
  • 55
    N.S.S. SCREW, THROTTLE BODY TO FLOAT BOWL (ROCHESTER #7035790)
    SCREW, THROTTLE BODY TO FLOAT BOWL (ROCHESTER #7035790)
  • --
    1397-3315 SPRING AND CAM KIT, AIR VALVE
    SPRING AND CAM KIT, AIR VALVE
  • --
    823426A1 OVERHAUL KIT
    OVERHAUL KIT
  • --
    823426A1 GASKET SET
    GASKET SET
