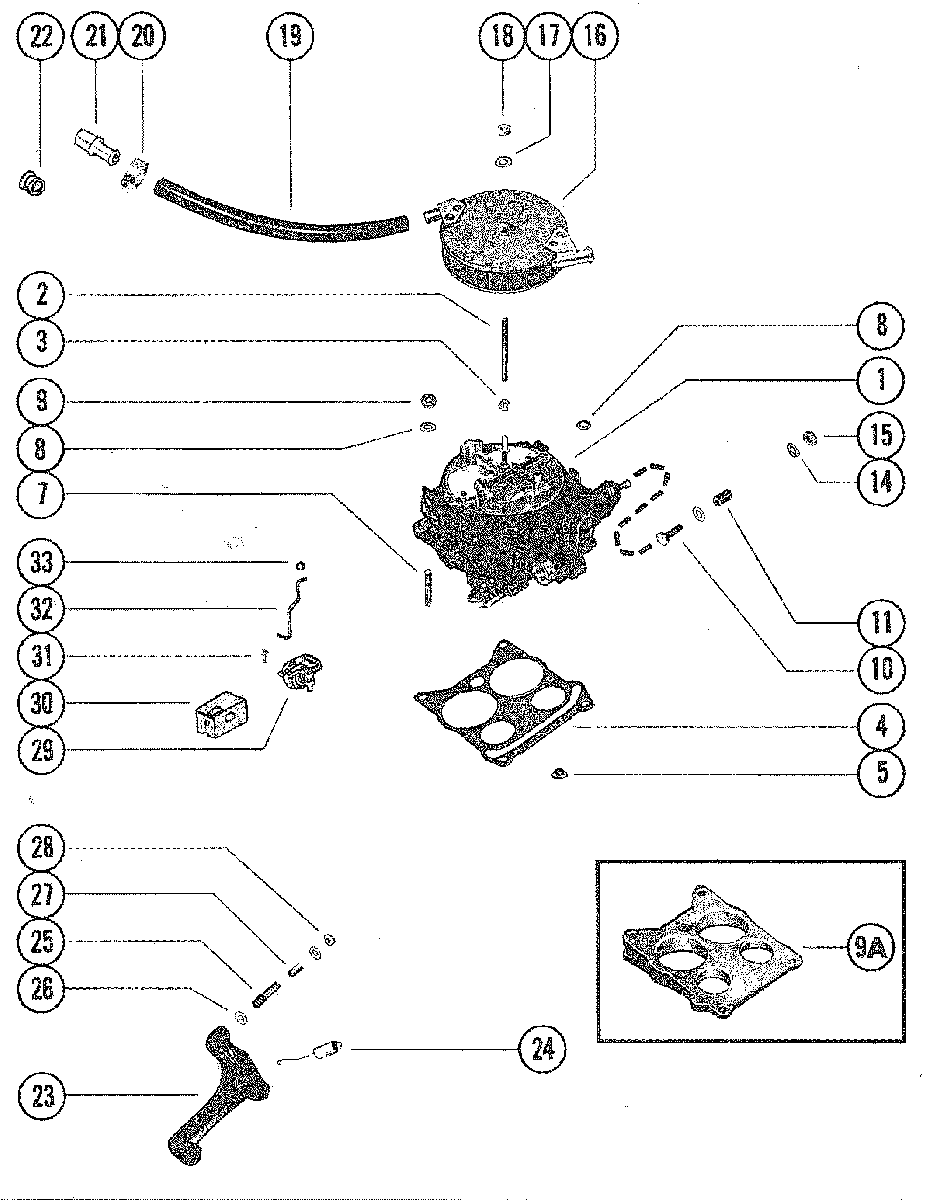

CARBURETOR AND AUTOMATIC CHOKE для Mercruiser - 255 MIE GM 350 V-8 1979-1980 5195909 THRU 5907057

  • №
    Артикул
    Название
  • 1
    1347-804624R02 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 2
    16-91842 STUD, FLAME ARRESTOR MOUNTING - CARBURETOR
    STUD, FLAME ARRESTOR MOUNTING - CARBURETOR
  • 3
    11-8267139 NUT, JAM - FLAME ARRESTOR
    NUT, JAM - FLAME ARRESTOR
  • 4
    27-524572 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 5
    22-12524 PLUG, INTAKE MANIFOLD VACUUM HOLE
    PLUG, INTAKE MANIFOLD VACUUM HOLE
  • 7
    16-63332 STUD, CARBURETOR MOUNTING (1 9/32")
    STUD, CARBURETOR MOUNTING (1 9/32")
  • 7
    16-53724 STUD, CARBURETOR MOUNTING (1 3/4")
    STUD, CARBURETOR MOUNTING (1 3/4")
  • 7
    16-53722 STUD, CARBURETOR MOUNTING (4 3/8")
    STUD, CARBURETOR MOUNTING (4 3/8")
  • 8
    12-20084 WASHER, CARBURETOR STUDS
    WASHER, CARBURETOR STUDS
  • 9
    11-29250 NUT, CARBURETOR STUDS
    NUT, CARBURETOR STUDS
  • 9A
    53513A4 WEDGE, CARBURETOR
    WEDGE, CARBURETOR
  • 10
    10-98509 SCREW, THROTTLE CABLE TO CARBURETOR (1 1/8")
    SCREW, THROTTLE CABLE TO CARBURETOR (1 1/8")
  • 14
    12-847883 WASHER, THROTTLE CABLE SCREW
    WASHER, THROTTLE CABLE SCREW
  • 11
    23-57938 BUSHING, THROTTLE CABLE SCREW
    BUSHING, THROTTLE CABLE SCREW
  • 11
    23-34948 BUSHING, THROTTLE CABLE SCREW
    BUSHING, THROTTLE CABLE SCREW
  • 14
    12-56681 WASHER, THROTTLE CABLE SCREW
    WASHER, THROTTLE CABLE SCREW
  • 15
    11-8267086 NUT, THROTTLE CABLE SCREW
    NUT, THROTTLE CABLE SCREW
  • 16
    805298A1 FLAME ARRESTOR, CARBURETOR
    FLAME ARRESTOR, CARBURETOR
  • 17
    12-86400 WASHER, FLAME ARRESTOR STUD
    WASHER, FLAME ARRESTOR STUD
  • 18
    11-826709109 NUT, FLAME ARRESTOR STUD
    NUT, FLAME ARRESTOR STUD
  • 19
    32-8M0062669 HOSE, VENT HOSE ATTACHING
    HOSE, VENT HOSE ATTACHING
  • 20
    54-53101 CLAMP, VENT HOSE ATTACHING
    CLAMP, VENT HOSE ATTACHING
  • 21
    47957 CONNECTOR, VENT HOSE TO ROCKER COVER
    CONNECTOR, VENT HOSE TO ROCKER COVER
  • 22
    23-8M0071559 GROMMET, ROCKER COVER TO VENT HOSE CONNECTOR
    GROMMET, ROCKER COVER TO VENT HOSE CONNECTOR
  • 23
    47502A2 BRACKET, MOUNTING - THROTTLE CABLE (V-DRIVE)
    BRACKET, MOUNTING - THROTTLE CABLE (V-DRIVE)
  • 23
    49929 BRACKET, MOUNTING - THROTTLE CABLE (INBOARD)
    BRACKET, MOUNTING - THROTTLE CABLE (INBOARD)
  • 24
    24-897454 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 25
    16-35897 STUD, THROTTLE CABLE TO MOUNTING BRACKET (1 11/16")
    STUD, THROTTLE CABLE TO MOUNTING BRACKET (1 11/16")
  • 26
    12-69056 WASHER, THROTTLE CABLE STUD
    WASHER, THROTTLE CABLE STUD
  • 27
    23-31866 SPACER, THROTTLE CABLE STUD
    SPACER, THROTTLE CABLE STUD
  • 28
    11-826709109 NUT, THROTTLE CABLE STUD
    NUT, THROTTLE CABLE STUD
  • 29
    71464A01 CHOKE, AUTOMATIC - CARBURETOR
    CHOKE, AUTOMATIC - CARBURETOR
  • 30
    63922 COVER, AUTOMATIC CHOKE
    COVER, AUTOMATIC CHOKE
  • 31
    10-69235 SCREW, AUTOMATIC CHOKE THERMOSTAT (5/8")
    SCREW, AUTOMATIC CHOKE THERMOSTAT (5/8")
  • 32
    61112 ROD, AUTOMATIC CHOKE - V-DRIVE
    ROD, AUTOMATIC CHOKE - V-DRIVE
  • 33
    54-59989 CLIP, AUTOMATIC CHOKE ROD - V-DRIVE
    CLIP, AUTOMATIC CHOKE ROD - V-DRIVE
  • 32
    60915 ROD, AUTOMATIC CHOKE - INBOARD
    ROD, AUTOMATIC CHOKE - INBOARD
  • 33
    54-48376 CLIP, AUTOMATIC CHOKE ROD - INBOARD
    CLIP, AUTOMATIC CHOKE ROD - INBOARD
