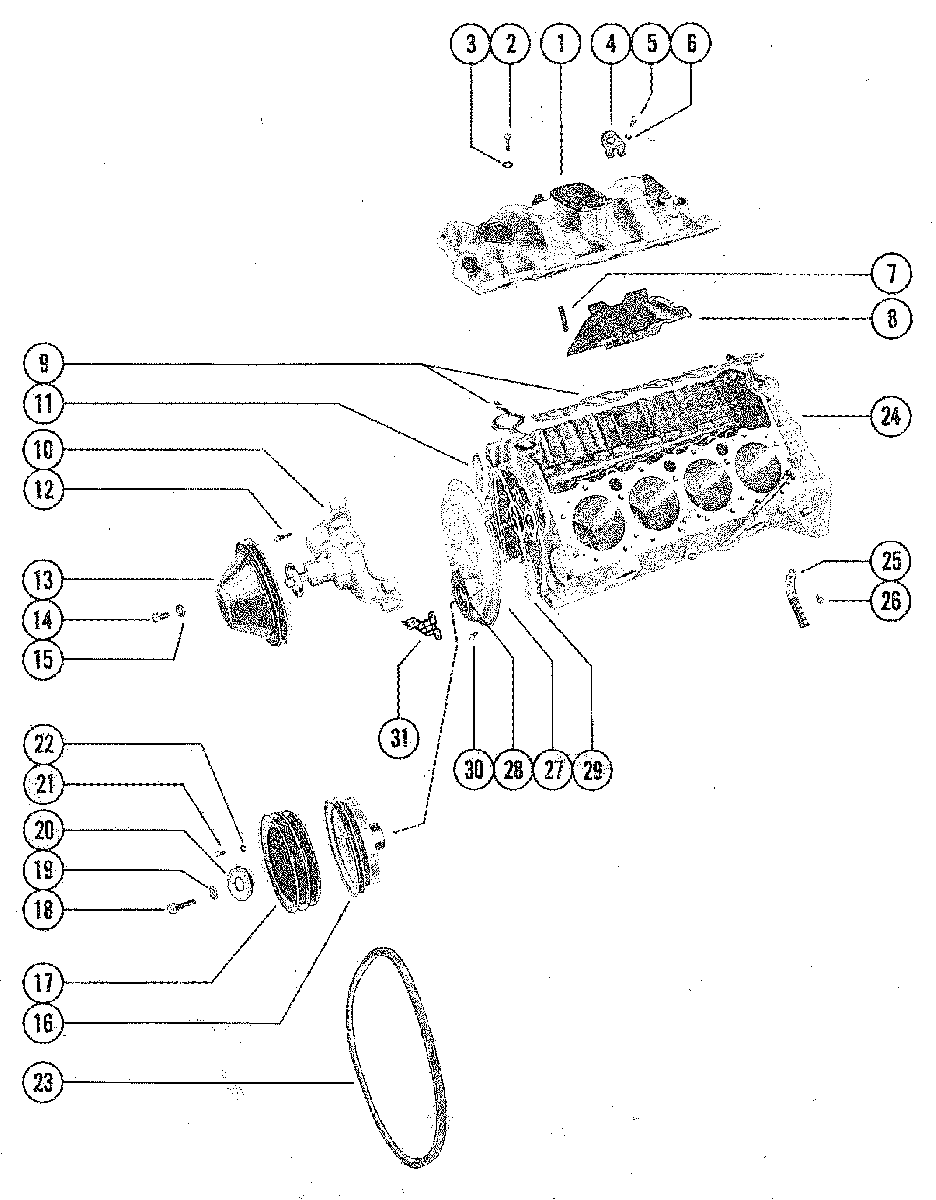

INTAKE MANIFOLD для Mercruiser - 255 MIE GM 350 V-8 1979-1980 5195909 THRU 5907057

  • №
    Артикул
    Название
  • 1
    72646T INTAKE MANIFOLD
    INTAKE MANIFOLD
  • 2
    10-26487 BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/8")
    BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/8")
  • 2
    10-37510 BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/2")
    BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/2")
  • 3
    12-49112 WASHER, INTAKE MANIFOLD BOLT
    WASHER, INTAKE MANIFOLD BOLT
  • 4
    54-47512 EYE, LIFTING
    EYE, LIFTING
  • 5
    10-34354 SCREW, LIFTING EYE ATTACHING (1 1/2")
    SCREW, LIFTING EYE ATTACHING (1 1/2")
  • 6
    13-35048 LOCKWASHER, LIFTING EYE SCREW
    LOCKWASHER, LIFTING EYE SCREW
  • 7
    16-66203 STUD, GAUGE TO INTAKE MANIFOLD
    STUD, GAUGE TO INTAKE MANIFOLD
  • 8
    72647 GUARD, INTAKE MANIFOLD
    GUARD, INTAKE MANIFOLD
  • 9
    27-17145 GASKET SET, INTAKE MANIFOLD
    GASKET SET, INTAKE MANIFOLD
  • 10
    46-8M0113734 WATER PUMP ASSEMBLY
    WATER PUMP ASSEMBLY
  • 11
    27-34897 GASKET, WATER PUMP MOUNTING
    GASKET, WATER PUMP MOUNTING
  • 12
    10-52200 SCREW, WATER PUMP TO CYLINDER BLOCK (1 1/2")
    SCREW, WATER PUMP TO CYLINDER BLOCK (1 1/2")
  • 12
    10-32132 SCREW, WATER PUMP TO CYLINDER BLOCK (1 3/4")
    SCREW, WATER PUMP TO CYLINDER BLOCK (1 3/4")
  • 12
    10-47688 SCREW, WATER PUMP TO CYLINDER BLOCK (2 3/4")
    SCREW, WATER PUMP TO CYLINDER BLOCK (2 3/4")
  • 12
    16-8M0076418 STUD, WATER PUMP TO CYLINDER BLOCK
    STUD, WATER PUMP TO CYLINDER BLOCK
  • 13
    52349 PULLEY, WATER PUMP
    PULLEY, WATER PUMP
  • 14
    10-47277 SCREW, PULLEY TO WATER PUMP (3/4")
    SCREW, PULLEY TO WATER PUMP (3/4")
  • 15
    13-39107 LOCKWASHER, WATER PUMP PULLEY SCREW
    LOCKWASHER, WATER PUMP PULLEY SCREW
  • 16
    75420 BALANCER, HARMONIC - CRANKSHAFT
    BALANCER, HARMONIC - CRANKSHAFT
  • 17
    33863T PULLEY, HARMONIC BALANCER
    PULLEY, HARMONIC BALANCER
  • 18
    10-72626 BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT (2")
    BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT (2")
  • 19
    13-39131 LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
    LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 20
    12-35332001 WASHER, PULLEY AND HARMONIC BALANCER BOLT
    WASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 21
    10-34352 BOLT, CRANKSHAFT PULLEY TO HARMINIC BALANCER
    BOLT, CRANKSHAFT PULLEY TO HARMINIC BALANCER
  • 22
    13-35048 LOCKWASHER, CRANKSHAFT PULLEY BOLT
    LOCKWASHER, CRANKSHAFT PULLEY BOLT
  • 23
    57-93658Q BELT, ALTERNATOR DRIVE (44")
    BELT, ALTERNATOR DRIVE (44")
  • 24
    841-6368 CYLINDER BLOCK ASSEMBLY
    SERIAL 00000000-05522209
    CYLINDER BLOCK ASSEMBLY
    SERIAL 00000000-05522209
  • 24
    841-8163 CYLINDER BLOCK ASSEMBLY
    SERIAL 05522210-09999999
    CYLINDER BLOCK ASSEMBLY
    SERIAL 05522210-09999999
  • 25
    35365 SUPPORT, SPARK PLUG LEAD WIRE
    SUPPORT, SPARK PLUG LEAD WIRE
  • 26
    10-8M0040582 SCREW, LEAD WIRE SUPPORT TO CYLINDER (2 1/2")
    SCREW, LEAD WIRE SUPPORT TO CYLINDER (2 1/2")
  • 27
    8M0127828 COVER ASS'Y, CRANKCASE FRONT (R.H. ROTATION)
    COVER ASS'Y, CRANKCASE FRONT (R.H. ROTATION)
  • 27
    8M0127828 COVER ASS'Y, CRANKCASE FRONT (L.H. ROTATION)
    COVER ASS'Y, CRANKCASE FRONT (L.H. ROTATION)
  • 28
    26-97335 OIL SEAL, FRONT COVER
    OIL SEAL, FRONT COVER
  • 29
    27-14250 GASKET, CRANKCASE FRONT END COVER
    GASKET, CRANKCASE FRONT END COVER
  • 30
    10-8M0040582 SCREW, CRANKCASE FRONT END COVER TO CYL BLOCK (7/16")
    SCREW, CRANKCASE FRONT END COVER TO CYL BLOCK (7/16")
  • 31
    75435A1 POINTER, TIMING
    POINTER, TIMING
