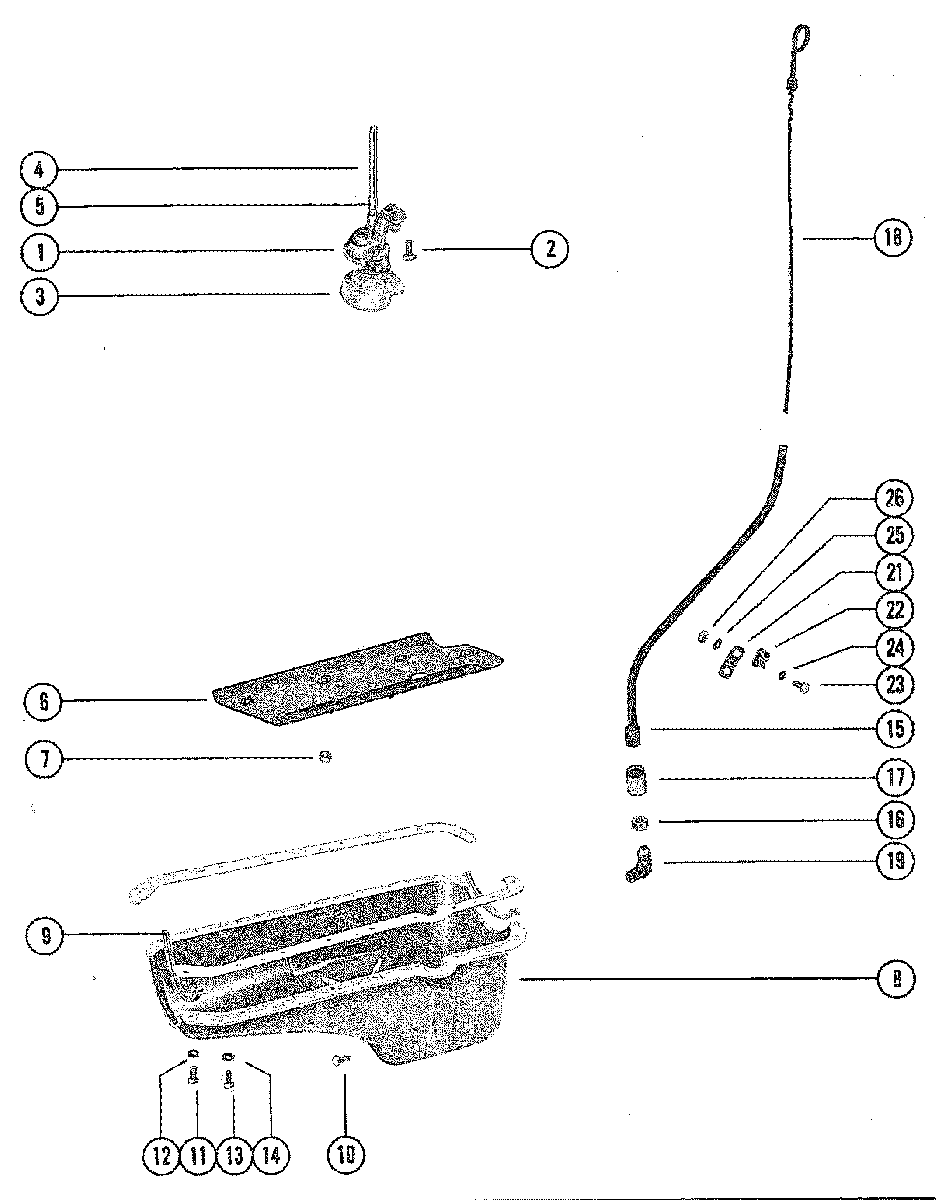

OIL PAN AND OIL PUMP для Mercruiser - 255 MIE GM 350 V-8 1979-1980 5195909 THRU 5907057

  • №
    Артикул
    Название
  • 1
    17617 OIL PUMP ASSEMBLY
    OIL PUMP ASSEMBLY
  • 2
    10-48333 BOLT, OIL PUMP TO CYLINDER BLOCK (2")
    BOLT, OIL PUMP TO CYLINDER BLOCK (2")
  • 3
    35354 SCREEN ASSEMBLY, OIL PUMP
    SCREEN ASSEMBLY, OIL PUMP
  • 4
    36184 SHAFT, OIL PUMP TO DISTRIBUTOR
    SHAFT, OIL PUMP TO DISTRIBUTOR
  • 5
    23-36183 RETAINER, OIL PUMP SHAFT
    RETAINER, OIL PUMP SHAFT
  • 6
    52198 BAFFLE, OIL PAN (CYLINDER BLOCK)
    BAFFLE, OIL PAN (CYLINDER BLOCK)
  • 7
    11-37500 NUT, BAFFLE TO CYLINDER BLOCK STUD
    NUT, BAFFLE TO CYLINDER BLOCK STUD
  • 8
    87758A1 OIL PAN
    SERIAL 00000000-05522209
    OIL PAN
    SERIAL 00000000-05522209
  • 9
    27-85817A1 GASKET SET, OIL PAN
    SERIAL 00000000-05522209
    GASKET SET, OIL PAN
    SERIAL 00000000-05522209
  • 8
    87758A1 OIL PAN
    SERIAL 05522210-09999999
    OIL PAN
    SERIAL 05522210-09999999
  • 9
    27-90458A1 GASKET SET, OIL PAN
    SERIAL 05522210-09999999
    GASKET SET, OIL PAN
    SERIAL 05522210-09999999
  • 10
    22-32803 PLUG, PIPE - OIL PAN DRAIN
    PLUG, PIPE - OIL PAN DRAIN
  • 11
    10-55714 SCREW, OIL PAN TO BLOCK (5/16 - 18 X 7/8)
    SCREW, OIL PAN TO BLOCK (5/16 - 18 X 7/8)
  • 12
    13-26993 LOCKWASHER, OIL PAN SCREW
    LOCKWASHER, OIL PAN SCREW
  • 13
    10-55715 SCREW, OIL PAN TO BLOCK (1/4 - 20 X 7/8)
    SCREW, OIL PAN TO BLOCK (1/4 - 20 X 7/8)
  • 14
    13-26992 LOCKWASHER, OIL PAN SCREW
    LOCKWASHER, OIL PAN SCREW
  • 15
    86890A2 TUBE, OIL LEVEL GAUGE
    TUBE, OIL LEVEL GAUGE
  • 16
    11-47626 NUT, OIL LEVEL GAUGE TUBE
    NUT, OIL LEVEL GAUGE TUBE
  • 17
    22-78039 COUPLING, OIL LEVEL GAUGE
    COUPLING, OIL LEVEL GAUGE
  • 18
    86194220 GAUGE, OIL LEVEL (DIPSTICK)
    GAUGE, OIL LEVEL (DIPSTICK)
  • 19
    22-47625 ELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN
    ELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN
  • 21
    87182 BRACKET, OIL LEVEL GAUGE
    BRACKET, OIL LEVEL GAUGE
  • 22
    54-475451 CLIP, OIL LEVEL TUBE
    CLIP, OIL LEVEL TUBE
  • 23
    10-33524 SCREW, CLIP TO BRACKET (5/8")
    SCREW, CLIP TO BRACKET (5/8")
  • 24
    13-39107 LOCKWASHER, CLIP SCREW
    LOCKWASHER, CLIP SCREW
  • 25
    12-20553 WASHER, OIL LEVEL TUBE BRACKET
    WASHER, OIL LEVEL TUBE BRACKET
  • 26
    11-22053 NUT, CLIP SCREW
    NUT, CLIP SCREW
