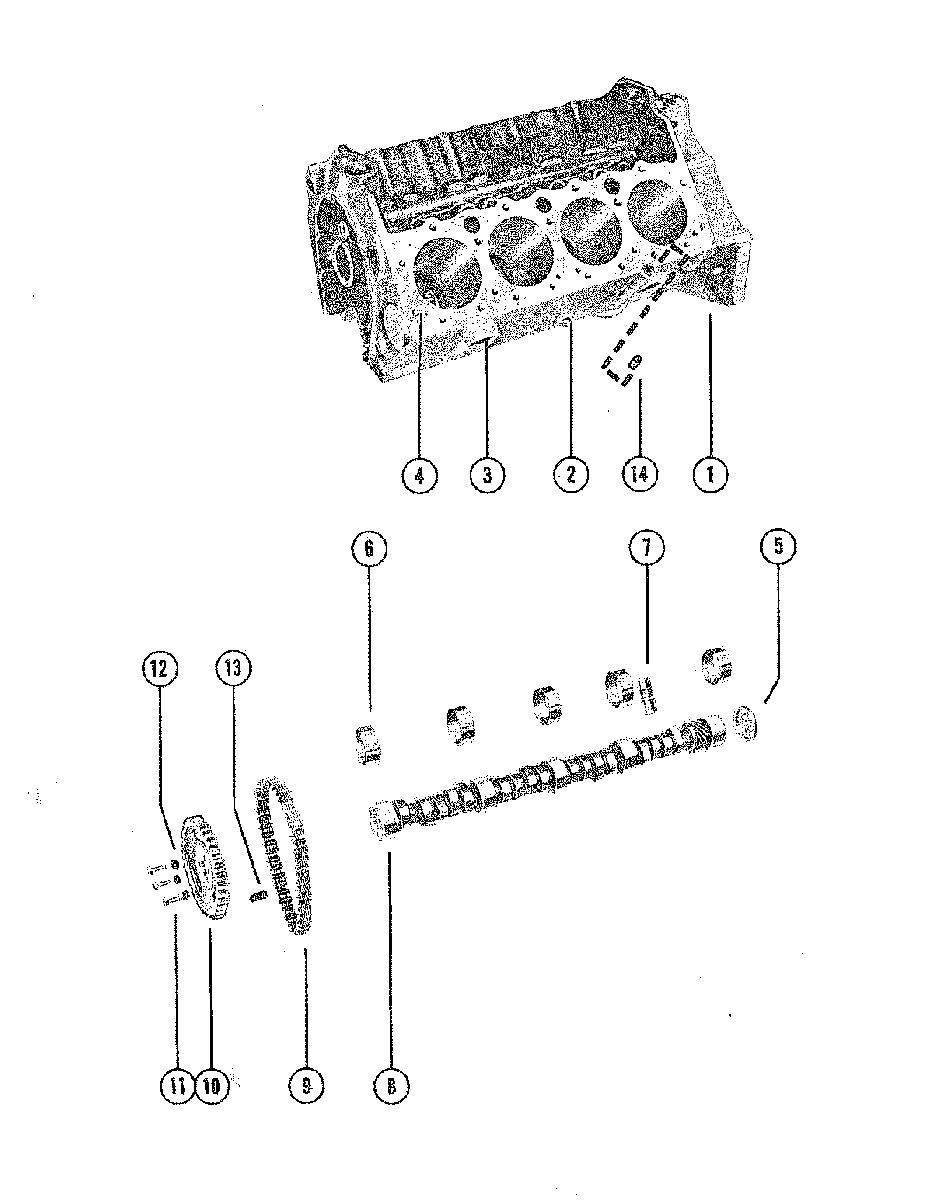

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 255 MIE GM 350 V-8 1979-1980 5195909 THRU 5907057

  • №
    Артикул
    Название
  • 1
    841-6368 CYLINDER BLOCK ASSEMBLY
    SERIAL 00000000-05522209
    CYLINDER BLOCK ASSEMBLY
    SERIAL 00000000-05522209
  • 1
    841-8163 CYLINDER BLOCK ASSEMBLY
    SERIAL 05522210-09999999
    CYLINDER BLOCK ASSEMBLY
    SERIAL 05522210-09999999
  • 2
    22-16951Q1 DRAIN COCK, CYLINDER BLOCK
    DRAIN COCK, CYLINDER BLOCK
  • 3
    19-34270 PLUG, EXPANSIPON - CYLINDER BLOCK (1 5/8" DIA.)
    PLUG, EXPANSIPON - CYLINDER BLOCK (1 5/8" DIA.)
  • -
    22-32561 PLUG, PIPE - CYLINDER BLOCK (1/4" DIA.)
    PLUG, PIPE - CYLINDER BLOCK (1/4" DIA.)
  • 4
    17-35465 PIN, DOWEL - CYLINDER BLOCK TO CYL. HEAD (5/16" DIA.)
    PIN, DOWEL - CYLINDER BLOCK TO CYL. HEAD (5/16" DIA.)
  • 5
    22-72640 PLUG, EXPANSION - CAMSHAFT BEARING HOLE
    PLUG, EXPANSION - CAMSHAFT BEARING HOLE
  • 6
    23-85674 BEARING UNIT, CAMSHAFT
    BEARING UNIT, CAMSHAFT
  • 7
    72638 LIFTER, HYDRAULIC VALVE - TAPPET
    LIFTER, HYDRAULIC VALVE - TAPPET
  • 8
    431-5943 CAMSHAFT (L.H. ROTATION)
    CAMSHAFT (L.H. ROTATION)
  • 8
    431-884035 CAMSHAFT (R.H. ROTATION)
    CAMSHAFT (R.H. ROTATION)
  • 9
    35378 CHAIN, CAMSHAFT TIMING
    CHAIN, CAMSHAFT TIMING
  • 10
    17161A1 SPROCKET, CAMSHAFT TIMING (44 TEETH) - L.H. ROTATION
    SPROCKET, CAMSHAFT TIMING (44 TEETH) - L.H. ROTATION
  • 10
    43-14324 SPROCKET, CAMSHAFT TIMING (44 TEETH) - R.H. ROTATION
    SPROCKET, CAMSHAFT TIMING (44 TEETH) - R.H. ROTATION
  • 11
    10-34505 BOLT, CAMSHAFT TIMING SPROCKETS (3/4")
    BOLT, CAMSHAFT TIMING SPROCKETS (3/4")
  • 12
    12-848136 WASHER, CAMSHAFT TIMING SPROCKET BOLT
    WASHER, CAMSHAFT TIMING SPROCKET BOLT
  • 13
    17-24813 PIN, DOWEL - CAMSHAFT TIMING SPROCKET (1/4" DIA.)
    PIN, DOWEL - CAMSHAFT TIMING SPROCKET (1/4" DIA.)
  • 14
    19-71900 PLUG, OIL LEVEL GAUGE HOLE - CYLINDER BLOCK
    PLUG, OIL LEVEL GAUGE HOLE - CYLINDER BLOCK
