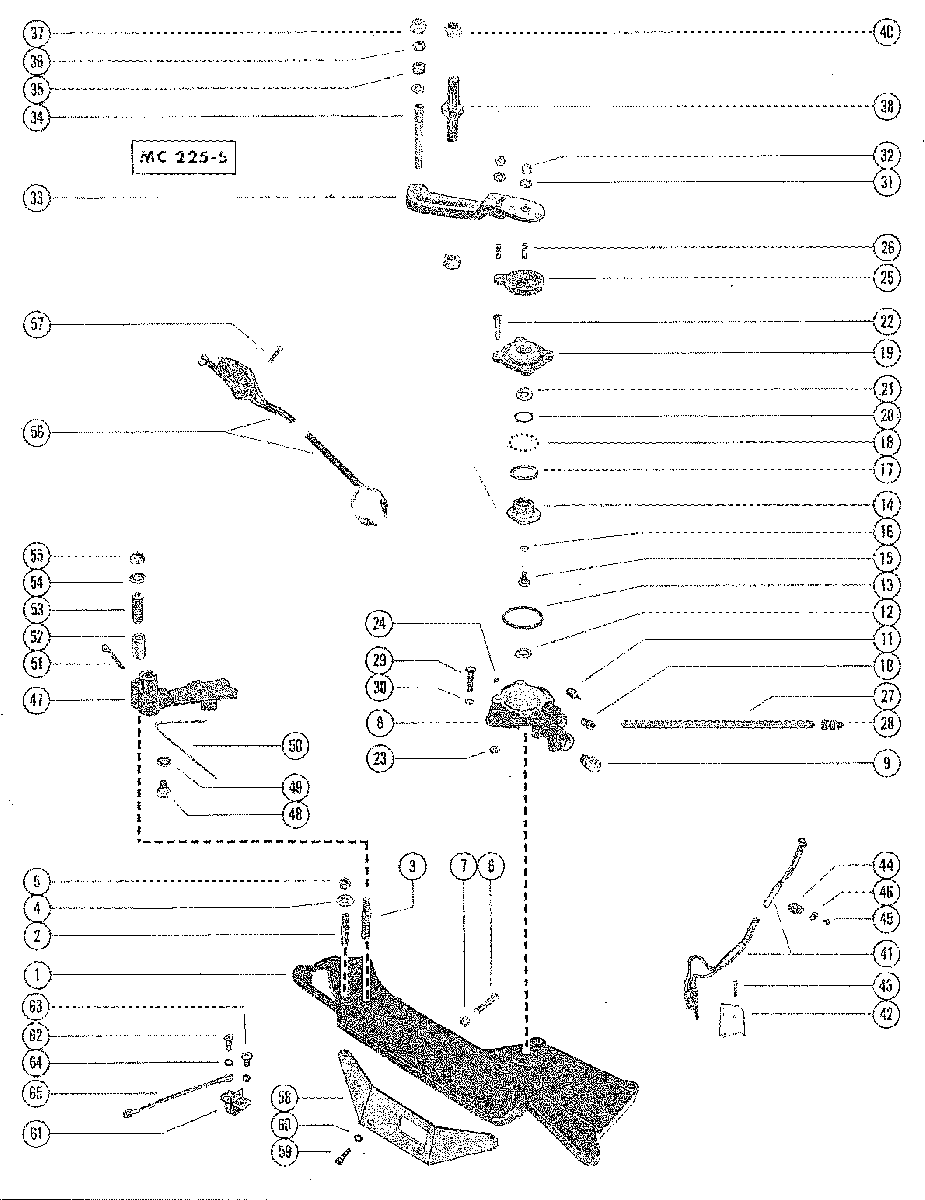

SHIFT BRACKET, REVERSE LOCK VALVE AND ARM ASSEMBLY -MC 225-S для Mercruiser - 225-S (4 BBL.)FORD 302 V-8 1973-1974 3385721 THRU 4166999
-
№АртикулНазвание
-
166057A3 SHIFT BRACKET ASSEMBLYSHIFT BRACKET ASSEMBLY
-
216-79661 STUD, SHIFT CABLE TO BRACKET (1 3/4")STUD, SHIFT CABLE TO BRACKET (1 3/4")
-
316-66373 STUD, SWITCH ACTUATING ARM TO SHIFT BRACKET (2 5/16")STUD, SWITCH ACTUATING ARM TO SHIFT BRACKET (2 5/16")
-
412-39143 WASHER, SHIFT CABLE TO LEVER STUDWASHER, SHIFT CABLE TO LEVER STUD
-
511-8267089 NUT, SHIFT BRACKET STUDNUT, SHIFT BRACKET STUD
-
610-47651 SCREW, SHIFT BRACKET TO FLYWHEEL HOUSING (1 1/2")SCREW, SHIFT BRACKET TO FLYWHEEL HOUSING (1 1/2")
-
713-32993 LOCKWASHER, SHIFT BRACKET ATTACHING SCREWLOCKWASHER, SHIFT BRACKET ATTACHING SCREW
-
876812T4 REVERSE LOCK VALVE ASSEMBLYREVERSE LOCK VALVE ASSEMBLY
-
922-45794 ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVEELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
-
1022-48167 CONNECTOR, ELBOWCONNECTOR, ELBOW
-
1145709 FOLLOWER, CAMFOLLOWER, CAM
-
1213-25906 WASHER, WAVE - REVERSE LOCK VALVEWASHER, WAVE - REVERSE LOCK VALVE
-
1325-457101 "O" RING, REVERSE LOCK VALVE"O" RING, REVERSE LOCK VALVE
-
1445526 CAM, REVERSE LOCK VALVECAM, REVERSE LOCK VALVE
-
1510-46736 SCREW, CAM TO CAM LEVER (1/2")SCREW, CAM TO CAM LEVER (1/2")
-
1613-26996 LOCKWASHER, CAM SCREWLOCKWASHER, CAM SCREW
-
1712-45713 WASHER, RETAINING - BALL TO VALVE COVERWASHER, RETAINING - BALL TO VALVE COVER
-
1830-45712 BALL, VALVE COVERBALL, VALVE COVER
-
1945528A2 COVER ASSEMBLY, REVERSE LOCK VALVECOVER ASSEMBLY, REVERSE LOCK VALVE
-
2025-45711 "O" RING, VALVE COVER"O" RING, VALVE COVER
-
2112-59570 WASHER, VALVE COVERWASHER, VALVE COVER
-
2210-45716 SCREW, COVER TO REVERSE LOCK VALVE (15/16")SCREW, COVER TO REVERSE LOCK VALVE (15/16")
-
2311-20110 NUT, COVER SCREWNUT, COVER SCREW
-
2422-390721 PLUG, PIPE - REVERSE LOCK VALVEPLUG, PIPE - REVERSE LOCK VALVE
-
2546732A1 LEVER ASSEMBLY, CAMLEVER ASSEMBLY, CAM
-
2616-45715 STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")
-
2732-52951A1 TUBING ASSEMBLY, REVERSE LOCK VALVE TO TRIM SENDERTUBING ASSEMBLY, REVERSE LOCK VALVE TO TRIM SENDER
-
2822-49718 NUT, TUBING ATTACHINGNUT, TUBING ATTACHING
-
2910-23703 SCREW, REVERSE LOCK VALVE TO SHIFT SUPPORT BRACKET (7/8")SCREW, REVERSE LOCK VALVE TO SHIFT SUPPORT BRACKET (7/8")
-
3013-39107 LOCKWASHER, REVERSE LOCK VALVE SCREWLOCKWASHER, REVERSE LOCK VALVE SCREW
-
3112-21273 WASHER, CAM LEVER STUDWASHER, CAM LEVER STUD
-
3211-20110 NUT, SHIFT CONTROL LEVER TO CAM LEVER STUDNUT, SHIFT CONTROL LEVER TO CAM LEVER STUD
-
3366397A1 LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVERLEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
-
3416-63081 STUD, SHIFT CABLE TO LEVERSTUD, SHIFT CABLE TO LEVER
-
3523-31866 SPACER, SHIFT LEVER STUDSPACER, SHIFT LEVER STUD
-
3612-39143 WASHER, SHIFT LEVER STUDWASHER, SHIFT LEVER STUD
-
3711-8267089 NUT, SHIFT CABLE TO LEVER STUDNUT, SHIFT CABLE TO LEVER STUD
-
3816-63335 STUD, SHIFT CABLE TO SHIFT LEVERSTUD, SHIFT CABLE TO SHIFT LEVER
-
4011-63341 TEE NUT, SHIFT CABLE STUDTEE NUT, SHIFT CABLE STUD
-
4160556A3 SWITCH ASSEMBLY, REVERSE INTERLOCKSWITCH ASSEMBLY, REVERSE INTERLOCK
-
4245717 SHIELD, REVERSE INTERLOCK SWITCHSHIELD, REVERSE INTERLOCK SWITCH
-
4310-36003 SCREW, SHIELD AND SWITCH TO REVERSE LOCK VALVE (3/4")SCREW, SHIELD AND SWITCH TO REVERSE LOCK VALVE (3/4")
-
4454-648552 "J" CLAMP, REVERSE INTEROCK SWITCH LEAD"J" CLAMP, REVERSE INTEROCK SWITCH LEAD
-
4510-21643 SCREW, REVERSE INTERLOCK SWITH LEAD CLIP ATTACHING (1/2")SCREW, REVERSE INTERLOCK SWITH LEAD CLIP ATTACHING (1/2")
-
468M0084613 "D" WASHER, CLIP ATTACHING SCREW"D" WASHER, CLIP ATTACHING SCREW
-
4713051A4 ARM ASSEMBLY, SWITCH ACTUATINGARM ASSEMBLY, SWITCH ACTUATING
-
4810-98257 SCREW, TENSION SPRING TO ARMSCREW, TENSION SPRING TO ARM
-
4912-26825 WASHER, TENSION SPRING SCREWWASHER, TENSION SPRING SCREW
-
5024-862850 SPRING, TENSION - SWITCH ACTUATING ARMSPRING, TENSION - SWITCH ACTUATING ARM
-
5118-328571 COTTER PIN, SHIFT ACTUATING CABLE TO ACTUATING ARMCOTTER PIN, SHIFT ACTUATING CABLE TO ACTUATING ARM
-
5223-45600 SLEEVE, SWITCH ACTUATING ARM STUDSLEEVE, SWITCH ACTUATING ARM STUD
-
5323-37981 SPACER, SWITCH ACTUATING ARM TO TRANSOM PLATESPACER, SWITCH ACTUATING ARM TO TRANSOM PLATE
-
5412-26825 WASHER, SWITCH ACTUATING ARM STUDWASHER, SWITCH ACTUATING ARM STUD
-
5511-82670911 NUT, SWITCH ACTUATING ARM STUDNUT, SWITCH ACTUATING ARM STUD
-
5639670A28 SWITCH ASSEMBLY, CUT-OUT - TRANSOM PLATESWITCH ASSEMBLY, CUT-OUT - TRANSOM PLATE
-
5710-30902 SCREW, SWITCH ASSEMBLY TO TRAMSOM PLATE (3/4")SCREW, SWITCH ASSEMBLY TO TRAMSOM PLATE (3/4")
-
5866059A5 BRACKET MOUNTING - SHIFTBRACKET MOUNTING - SHIFT
-
5910-35386 SCREW, SHIFT BRACKET ATTACHINGSCREW, SHIFT BRACKET ATTACHING
-
6013-39107 LOCKWASHER, SHIFT BRACKET ATTACHING SCREWLOCKWASHER, SHIFT BRACKET ATTACHING SCREW
-
6186-66986 TERMINAL BLOCK, SHIFT BRACKETTERMINAL BLOCK, SHIFT BRACKET
-
6210-24637 SCREW, TERMINAL BLOCK (7/8")SCREW, TERMINAL BLOCK (7/8")
-
6310-45218 SCREW, TERMINAL BLOCK (3/8")SCREW, TERMINAL BLOCK (3/8")
-
6413-26996 LOCKWASHER, TERMINAL BLOCK SCREWLOCKWASHER, TERMINAL BLOCK SCREW
-
6584-60871A9 WIRE, TERMINAL BLOCK (BLACK - 13")WIRE, TERMINAL BLOCK (BLACK - 13")
