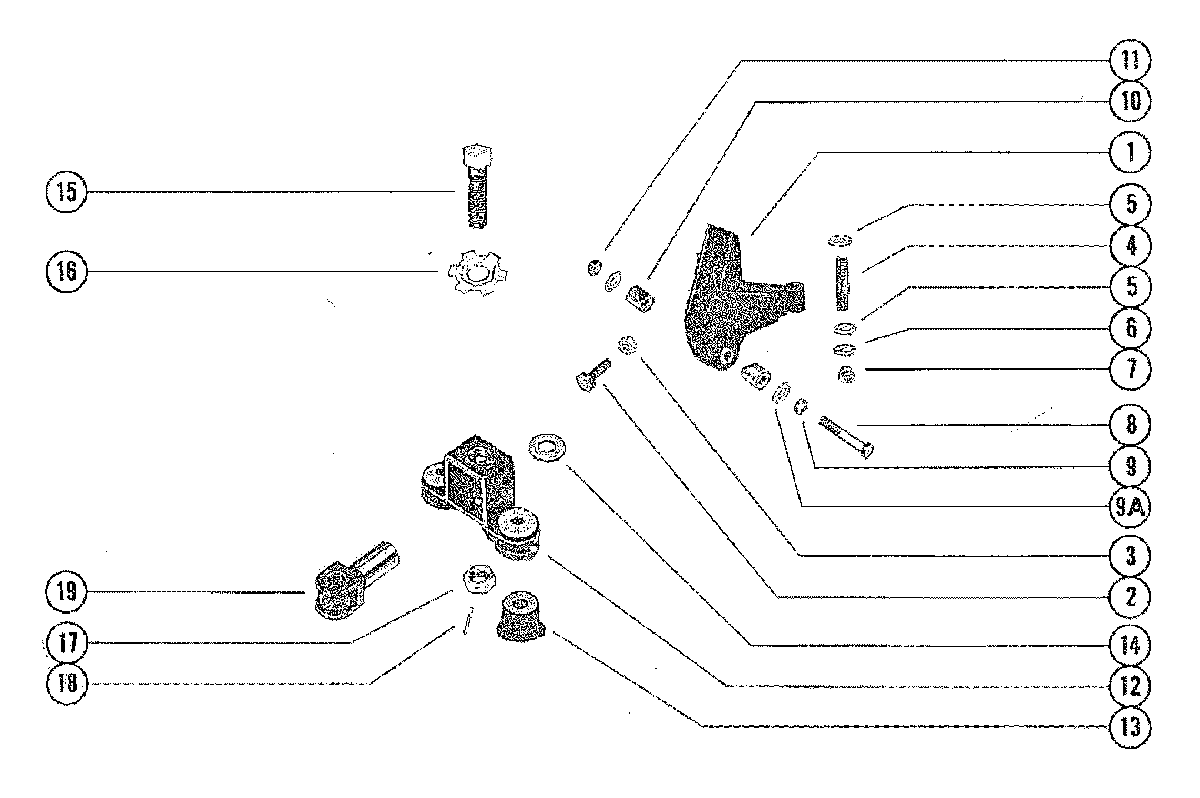

ENGINE MOUNTING (STERN DRIVE) для Mercruiser - 225-S (4 BBL.)FORD 302 V-8 1973-1974 3385721 THRU 4166999

  • №
    Артикул
    Название
  • 1
    61815 BRACKET, MOUNTING (FRONT)
    BRACKET, MOUNTING (FRONT)
  • 2
    10-30155 SCREW, ENGINE LOCATING (1 1/4")
    SCREW, ENGINE LOCATING (1 1/4")
  • 3
    11-22024 NUT, ENGINE LOCATING SCREW
    NUT, ENGINE LOCATING SCREW
  • 4
    16-65737 STUD, MTG. BRKT. TO CYL. BLOCK (2 5/8")
    SEE NOTE
    STUD, MTG. BRKT. TO CYL. BLOCK (2 5/8")
    SEE NOTE
  • 4
    16-65743 STUD, MTG. BRKT. TO CYL. BLOCK (3") - STARBOARD FRONT
    SEE NOTE
    STUD, MTG. BRKT. TO CYL. BLOCK (3") - STARBOARD FRONT
    SEE NOTE
  • 5
    12-34567 WASHER, MOUNTING BRACKET STUD (STARBOARD FRONT)
    WASHER, MOUNTING BRACKET STUD (STARBOARD FRONT)
  • 6
    12-54426 WASHER, MOUNTING BRACKET SCREW
    WASHER, MOUNTING BRACKET SCREW
  • 7
    11-34933 NUT, MOUNTING BRACKET TO CYLINDER BLOCK STUD (SEE NOTE BELOW)
    NUT, MOUNTING BRACKET TO CYLINDER BLOCK STUD (SEE NOTE BELOW)
  • 8
    10-47654 SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")
    SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")
  • 9
    13-32993 LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
    LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
  • 10
    54-47528 CLAMP, ADJUSTING TRUNNION SCREW
    CLAMP, ADJUSTING TRUNNION SCREW
  • 11
    11-82670814 NUT, CLAMP ADJUSTING TRUNNION SCREW
    NUT, CLAMP ADJUSTING TRUNNION SCREW
  • 12
    60421A5 BRACKET ASSEMBLY, MOUNTING - FRONT
    BRACKET ASSEMBLY, MOUNTING - FRONT
  • 13
    52753 MOUNT MOUNTING BRACKET
    MOUNT MOUNTING BRACKET
  • 14
    12-48611 WASHER, MOUNTING BRACKET
    WASHER, MOUNTING BRACKET
  • 15
    10-52156 SCREW, ADJUSTING TRUNNION (4 1/2")
    SCREW, ADJUSTING TRUNNION (4 1/2")
  • 16
    14-48467 TAB WASHER, ADJUSTING TRUNNION SCREW
    TAB WASHER, ADJUSTING TRUNNION SCREW
  • 17
    11-47525 NUT, JAM - ADJUSTING TRUNNION SCREW
    NUT, JAM - ADJUSTING TRUNNION SCREW
  • 18
    17-22116 PIN, ROLL - JAM NUT
    PIN, ROLL - JAM NUT
  • 19
    47518 TRUNNION, ADJUSTING - MOUNTING BRACKET
    TRUNNION, ADJUSTING - MOUNTING BRACKET
