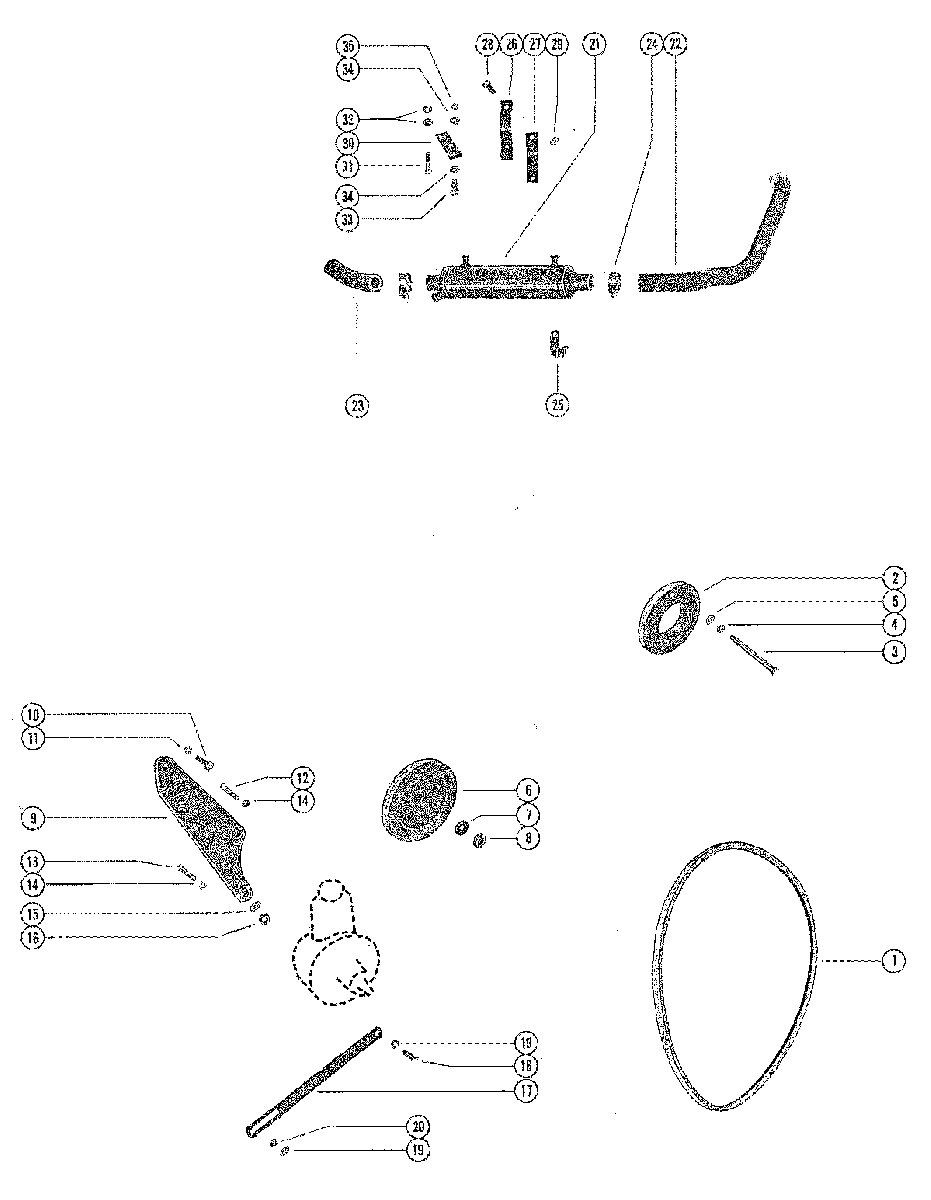

POWER STEERING COMPONENTS для Mercruiser - 225-S (4 BBL.)FORD 302 V-8 1973-1974 3385721 THRU 4166999

  • №
    Артикул
    Название
  • 1
    57-57298Q 'V" BELT, HYDRAULIC PUMP DRIVE
    'V" BELT, HYDRAULIC PUMP DRIVE
  • 2
    56331A1 PULLEY ASSEMBLY, CRANKSHAFT (NOT AS SHOWN)
    PULLEY ASSEMBLY, CRANKSHAFT (NOT AS SHOWN)
  • 3
    10-52693 SCREW, PULLEY TO CRANKSHAFT (5")
    SCREW, PULLEY TO CRANKSHAFT (5")
  • 4
    13-35048 LOCKWASHER, PULLEY SCREW
    LOCKWASHER, PULLEY SCREW
  • 5
    12-20553 WASHER, PULLEY SCREW
    WASHER, PULLEY SCREW
  • 6
    49181T PULLEY, HYDRAULIC PUMP
    PULLEY, HYDRAULIC PUMP
  • 7
    12-21901 WASHER, PULLEY TO HYDRAULIC PUMP
    WASHER, PULLEY TO HYDRAULIC PUMP
  • 8
    11-25899 NUT, PULLEY TO HYDRAULIC PUMP
    NUT, PULLEY TO HYDRAULIC PUMP
  • 9
    56313 BRACKET, HYDRAULIC PUMP MOUNTING
    BRACKET, HYDRAULIC PUMP MOUNTING
  • 10
    10-47462 SCREW, PUMP MOUNTING BRACKET TO CYL. BLOCK (1 1/2")
    SCREW, PUMP MOUNTING BRACKET TO CYL. BLOCK (1 1/2")
  • 11
    13-32993 LOCKWAHSER, PUMP MOUNTING BRACKET SCREW
    LOCKWAHSER, PUMP MOUNTING BRACKET SCREW
  • 12
    10-37612 SCREW, HYDRAULIC PUMP TO MOUNTING BRACKET (1 1/4")
    SCREW, HYDRAULIC PUMP TO MOUNTING BRACKET (1 1/4")
  • 13
    10-34354 SCREW, HYDRAULIC PUMP TO MOUNING BRACKET (1 1/2")
    SCREW, HYDRAULIC PUMP TO MOUNING BRACKET (1 1/2")
  • 14
    13-35048 LOCKWASHER, HYDRAULIC PUMP SCREW
    LOCKWASHER, HYDRAULIC PUMP SCREW
  • 15
    12-25909 WASHER, HYDRAULIC PUMP SCREW
    WASHER, HYDRAULIC PUMP SCREW
  • 16
    23-57369 SPACER, HYDRAULIC PUMP SCREW
    SPACER, HYDRAULIC PUMP SCREW
  • 17
    63005 BRACE, HYDRAULIC PUMP
    BRACE, HYDRAULIC PUMP
  • 18
    10-34353 SCREW, BRACE TO HYDRAULIC PUMP (1 1/4")
    SCREW, BRACE TO HYDRAULIC PUMP (1 1/4")
  • 19
    13-35048 LOCKWASHER, BRACE SCREW
    LOCKWASHER, BRACE SCREW
  • 20
    12-34714 WASHER, BRACE SCREW
    WASHER, BRACE SCREW
  • 21
    64865 OIL COOLER
    SERIAL 00000000-03386129
    OIL COOLER
    SERIAL 00000000-03386129
  • 21
    64865 OIL COOLER
    SERIAL 03523080-09999999
    OIL COOLER
    SERIAL 03523080-09999999
  • 22
    32-57231 HOSE, OIL COOLER TO THERMOSTAT HOUSING
    SERIAL 00000000-03386120
    HOSE, OIL COOLER TO THERMOSTAT HOUSING
    SERIAL 00000000-03386120
  • 23
    32-57230 HOSE, OIL COOLER TO WATER PUMP
    SERIAL 00000000-03386120
    HOSE, OIL COOLER TO WATER PUMP
    SERIAL 00000000-03386120
  • 22
    32-64917 HOSE, OIL COOLER TO THERMOSTAT HOUSING
    SERIAL 03523080-09999999
    HOSE, OIL COOLER TO THERMOSTAT HOUSING
    SERIAL 03523080-09999999
  • 23
    32-8M0062665 HOSE, OIL COOLER TO WATER PUMP
    SERIAL 03523080-09999999
    HOSE, OIL COOLER TO WATER PUMP
    SERIAL 03523080-09999999
  • 24
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 25
    54-64324 CLAMP, HOSE ATTACHING TO OIL COOLER BRACKET
    CLAMP, HOSE ATTACHING TO OIL COOLER BRACKET
  • 26
    62870 BRACKET, OIL COOLER
    SERIAL 00000000-03386120
    BRACKET, OIL COOLER
    SERIAL 00000000-03386120
  • 26
    64864 BRACKET, OIL COOLER
    SERIAL 03523080-09999999
    BRACKET, OIL COOLER
    SERIAL 03523080-09999999
  • 27
    56328A1 BRACKET, CLAMP - OIL COOLER
    BRACKET, CLAMP - OIL COOLER
  • 28
    10-69028 SCREW, CLAMP BRACKET TO OIL COOLER BRACKET (3/4")
    SCREW, CLAMP BRACKET TO OIL COOLER BRACKET (3/4")
  • 29
    11-8267089 NUT, CLAMP BRACKET SCREW SERIAL # AND BELOW
    SERIAL 00000000-03386120
    NUT, CLAMP BRACKET SCREW SERIAL # AND BELOW
    SERIAL 00000000-03386120
  • 30
    62871 PLATE, MOUNTING - OIL COOLER BRACKET
    SERIAL 00000000-03386120
    PLATE, MOUNTING - OIL COOLER BRACKET
    SERIAL 00000000-03386120
  • 31
    10-57357 SCREW, MOUNT PLATE TO ENGINE MOUNT (2 1/4")
    SERIAL 00000000-03386120
    SCREW, MOUNT PLATE TO ENGINE MOUNT (2 1/4")
    SERIAL 00000000-03386120
  • 32
    12-34567 WASHER, MOUNT PLATE SCREW
    SERIAL 00000000-03386120
    WASHER, MOUNT PLATE SCREW
    SERIAL 00000000-03386120
  • 33
    10-26065 SCREW, OIL COOLER BRACKET TO MOUNT PLATE (1")
    SERIAL 00000000-03386120
    SCREW, OIL COOLER BRACKET TO MOUNT PLATE (1")
    SERIAL 00000000-03386120
  • 34
    12-26825 WASHER, OIL COOLER BRACKET SCREW
    SERIAL 00000000-03386120
    WASHER, OIL COOLER BRACKET SCREW
    SERIAL 00000000-03386120
  • 35
    11-82670911 NUT, OIL COOLER BRACKET SCREW
    SERIAL 00000000-03386120
    NUT, OIL COOLER BRACKET SCREW
    SERIAL 00000000-03386120
