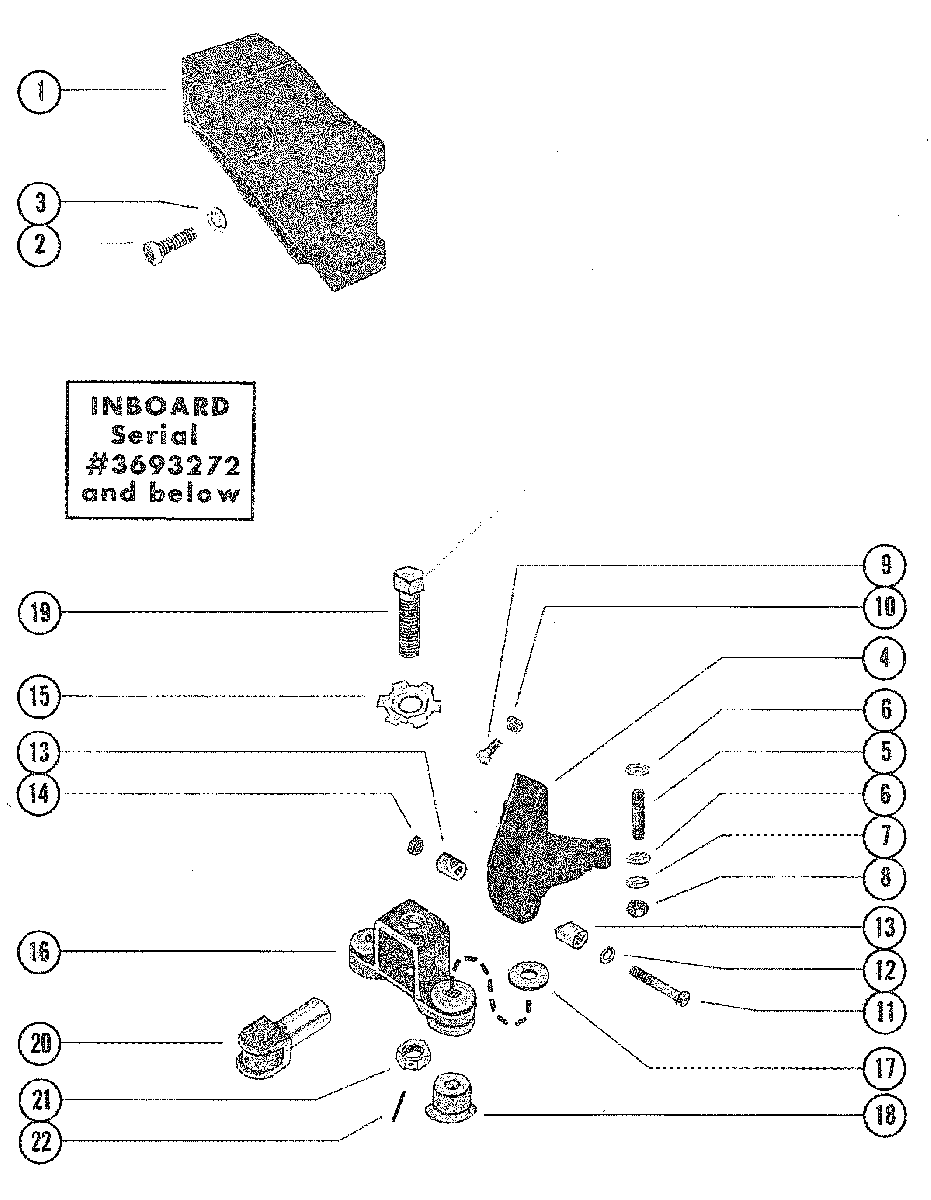

TRANSMISSION AND ENGINE MOUNTING (INBOARD) для Mercruiser - 225-S (4 BBL.)FORD 302 V-8 1973-1974 3385721 THRU 4166999

  • №
    Артикул
    Название
  • 1
    62255 BRACKET, MOUNTING (REAR)
    BRACKET, MOUNTING (REAR)
  • 2
    10-37269 SCREW, MOUNTING BRACKET TO TRANSMISSION (2")
    SCREW, MOUNTING BRACKET TO TRANSMISSION (2")
  • 3
    13-32993 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 4
    61854 BRACKET, MOUNTING (FRONT)
    BRACKET, MOUNTING (FRONT)
  • 5
    16-65737 STUD, FORNT MOUNTING BRACKET (2 5/8")
    STUD, FORNT MOUNTING BRACKET (2 5/8")
  • 5
    16-65743 STUD, FRONT MOUNTING BRACKET STBD. REAR (3")
    SEE NOTE
    STUD, FRONT MOUNTING BRACKET STBD. REAR (3")
    SEE NOTE
  • 6
    12-34567 WASHER, MOUNTING BRACKET STUD - STBD. REAR
    SEE NOTE
    WASHER, MOUNTING BRACKET STUD - STBD. REAR
    SEE NOTE
  • 6
    12-54426 WASHER, MOUNTING BRACKE STUD
    WASHER, MOUNTING BRACKE STUD
  • 7
    13-32993 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 8
    11-34933 NUT, MOUNTING BRACKET STUD
    NUT, MOUNTING BRACKET STUD
  • 9
    10-30155 SCREW, ENGINE LOCATING (1 1/4")
    SCREW, ENGINE LOCATING (1 1/4")
  • 10
    11-22024 NUT, ENGINE LOCATING SCREW
    NUT, ENGINE LOCATING SCREW
  • 11
    10-47654 SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")
    SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")
  • 12
    13-32993 LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
    LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
  • 13
    54-47528 CLAMP, ADJUSTING TRUNNION SCREW
    CLAMP, ADJUSTING TRUNNION SCREW
  • 14
    11-82670814 NUT, CLAMP ADJUSTING TRUNNION SCREW
    NUT, CLAMP ADJUSTING TRUNNION SCREW
  • 15
    14-48467 TAB WASHER, ADJUSTING TRUNNION SCREW
    TAB WASHER, ADJUSTING TRUNNION SCREW
  • 16
    52139A4 BRACKET ASSEMBLY, MOUNTING - FRONT AND REAR
    BRACKET ASSEMBLY, MOUNTING - FRONT AND REAR
  • 17
    12-48611 WASHER, MOUNTING BRACKET
    WASHER, MOUNTING BRACKET
  • 18
    47656 MOUNT, MOUNTING BRACKET
    MOUNT, MOUNTING BRACKET
  • 19
    10-52156 SCREW, ADJUSTING TRUNNION (4 1/2")
    SCREW, ADJUSTING TRUNNION (4 1/2")
  • 20
    47518 TRUNNION, ADJUSTING - MOUNTING BRACKET
    TRUNNION, ADJUSTING - MOUNTING BRACKET
  • 21
    11-47525 NUT, JAM - ADJUSTING TRUNNION SCREW
    NUT, JAM - ADJUSTING TRUNNION SCREW
  • 22
    17-22116 PIN, ROLL - JAM NUT
    PIN, ROLL - JAM NUT
