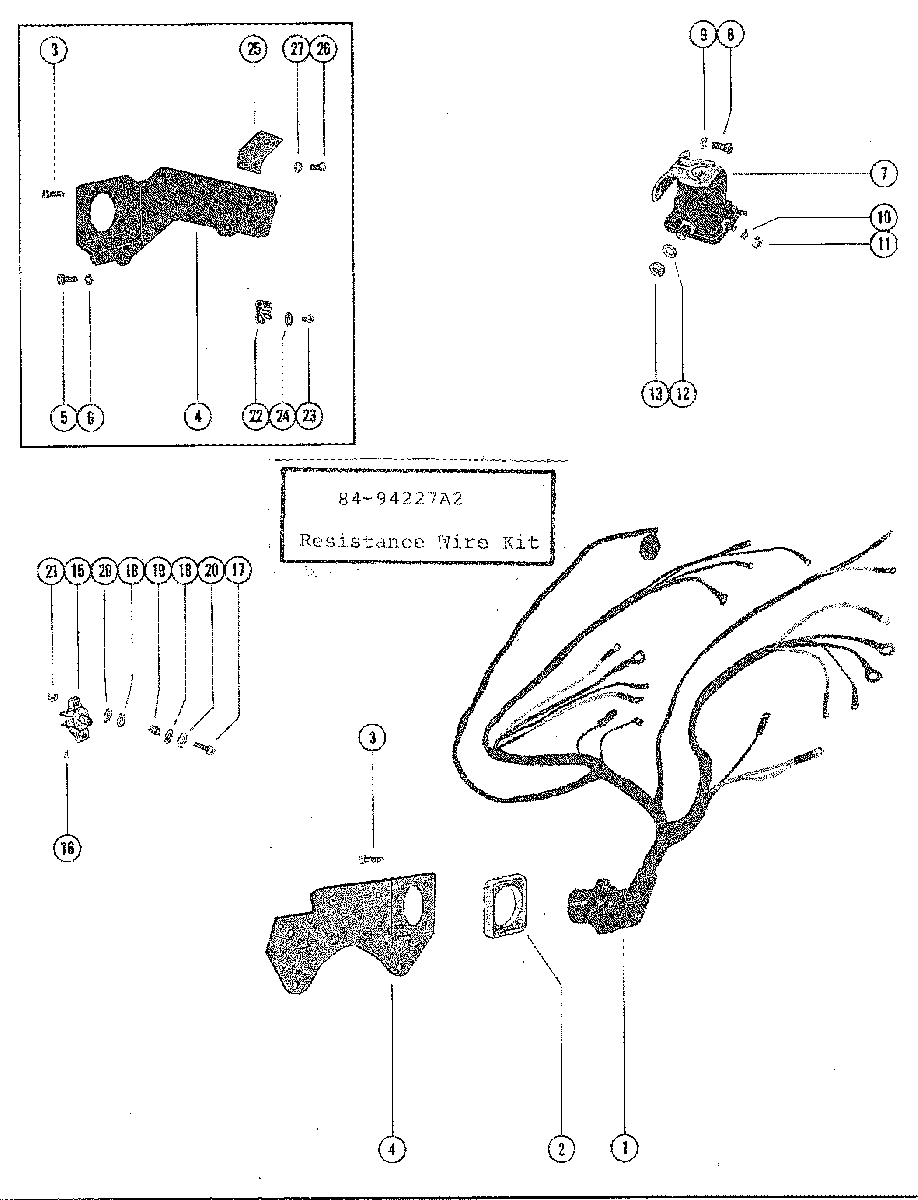

WIRING HARNESS, CIRCUIT BREAKER & STARTER SOLENOID (INBOARD) для Mercruiser - 225-S (4 BBL.)FORD 302 V-8 1973-1974 3385721 THRU 4166999

  • №
    Артикул
    Название
  • 1
    84-64600 WIRING HARNESS
    SERIAL 00000000-03416390
    WIRING HARNESS
    SERIAL 00000000-03416390
  • 1
    84-64635A4 WIRING HARNESS (SERIAL # AND UP)
    SERIAL 03563182-09999999
    WIRING HARNESS (SERIAL # AND UP)
    SERIAL 03563182-09999999
  • 2
    26079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKET
    PLATE, WIRING HARNESS TO MOUNTING BRACKET
  • 3
    10-46718 SCREW, WIRING HARNESS TO PLATE TO MOUNTING BRACKET (3/4")
    SCREW, WIRING HARNESS TO PLATE TO MOUNTING BRACKET (3/4")
  • 4
    54227 BRACKET, MOUNTING - ELECTRICAL
    SERIAL 00000000-03416390
    BRACKET, MOUNTING - ELECTRICAL
    SERIAL 00000000-03416390
  • 4
    87090T BRACKET, MOUNTING - ELECTRICAL
    SERIAL 03563182-09999999
    BRACKET, MOUNTING - ELECTRICAL
    SERIAL 03563182-09999999
  • 5
    10-21077 SCREW, MOUNTING BRACKET ATTACHING (7/8") ,
    SERIAL 00000000-03416390
    SCREW, MOUNTING BRACKET ATTACHING (7/8") ,
    SERIAL 00000000-03416390
  • 6
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    SERIAL 00000000-03416390
    LOCKWASHER, MOUNTING BRACKET SCREW
    SERIAL 00000000-03416390
  • 7
    25661T1 STARTER SOLENOID
    STARTER SOLENOID
  • 8
    10-69054 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
    SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
  • 9
    13-26992 LOCKWASHER, STARTER SOLENOID SCREW
    LOCKWASHER, STARTER SOLENOID SCREW
  • 10
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 11
    11-68219 NUT, STARTER SOLENOID TERMINAL (10-32)
    NUT, STARTER SOLENOID TERMINAL (10-32)
  • 12
    13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
  • 13
    11-22053 NUT, STARTER SOLENOID TERMINAL (5/16")
    NUT, STARTER SOLENOID TERMINAL (5/16")
  • 15
    59816 CIRCUIT BREAKER
    CIRCUIT BREAKER
  • 16
    10-36046 SCREW, WIRING HARNESS LEAD TO TERMINAL (1/4")
    SCREW, WIRING HARNESS LEAD TO TERMINAL (1/4")
  • 17
    10-47618 SCREW, CIRCUIT BREAKER TO BRACKET (1")
    SCREW, CIRCUIT BREAKER TO BRACKET (1")
  • 18
    25-61999 GROMMET, CIRCUIT BREAKER SCREW
    GROMMET, CIRCUIT BREAKER SCREW
  • 19
    23-61998 SPACER, CIRCUIT BREAKER GROMMET
    SPACER, CIRCUIT BREAKER GROMMET
  • 20
    12-47960 WASHER, CIRCUIT BREAKER SCREW
    WASHER, CIRCUIT BREAKER SCREW
  • 21
    11-46438 NUT, CIRCUIT BREAKER SCREW
    NUT, CIRCUIT BREAKER SCREW
  • 22
    54-37304 CLAMP, HARNESS TO MOUNTING BRACKET
    SERIAL 00000000-03416390
    CLAMP, HARNESS TO MOUNTING BRACKET
    SERIAL 00000000-03416390
  • 23
    10-98253 SCREW, CLAMP TO MOUNTING BRACKET (1/2")
    SERIAL 00000000-03416390
    SCREW, CLAMP TO MOUNTING BRACKET (1/2")
    SERIAL 00000000-03416390
  • 24
    13-26992 LOCKWASHER, CLAMP TO MOUNTING SCREW
    SERIAL 00000000-03416390
    LOCKWASHER, CLAMP TO MOUNTING SCREW
    SERIAL 00000000-03416390
  • 25
    65940 BRACKET, CIRCUIT BREAKER
    SERIAL 00000000-03416390
    BRACKET, CIRCUIT BREAKER
    SERIAL 00000000-03416390
  • 26
    10-37656 SCREW, CIRCUIT BREAKER BRACKET (9/16")
    SERIAL 00000000-03416390
    SCREW, CIRCUIT BREAKER BRACKET (9/16")
    SERIAL 00000000-03416390
  • 27
    13-26996 LOCKWASHER, BRACKET SCREW
    SERIAL 00000000-03416390
    LOCKWASHER, BRACKET SCREW
    SERIAL 00000000-03416390
